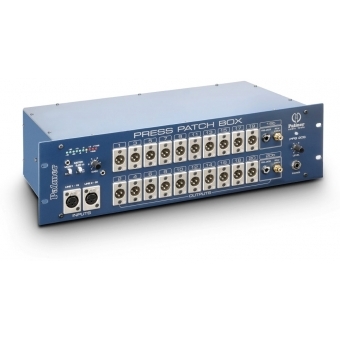

Palmer PB 20 S - Press Patch Box 10-Channel Stereo / 20-Channel Mono

Palmer PB 20 S - Press Patch Box 10-Channel Stereo / 20-Channel Mono
11269.55 Lei
7888.69 Lei
*pretul include TVA
La comanda
cod produs: PPB20S
Descrierea Produsului

A stereo version of the PPB20 is available in addition to the standard mono version. Instead of a microphone and line input, the stereo version is fitted with two line inputs.

The first line input is distributed to the upper row of outputs (meaning the uneven channels), while the second line input is distributed to the even channels (meaning the lower row of outputs).

  • Signal distributor with 2 x 10 outputs
  • Isolated transformer-balanced XLR inputs for line level signals
  • High-quality input amplifier with gain control
  • 10 LEDs for level display from -40 to +10 dB
  • 2 x 10 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
  • 2 additional 6.35mm stereo jacks and RCA outputs
  • Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
  • Mono switch provides one input to the 20 outputs
  • Adjustable 6.35 mm headphone output
  • Summed input and cascaded output
  • Integrated shielded power supply
  • DC input for emergency power supply
Product typeSplitters
Typemic & line split
Split type2 in 10 + 10
Input connectorsXLR
Max. input level+ 20 dB
Adjustable inputYes
Number of split-outputs per canal10
THRU outputs/channel1
Max. output level+ 20 dB
Output connectors6.3 mm jack, RCA, XLR
Adjustable outputno
Transformer isolated outputsYes
Controlsattenuator, ground lift, input gain, mic/line switch, phones level, Power
Operating voltageintegrated (115 / 230 V)
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm, 19 "
Depth200 mm
Height135 mm, 3 U
Weight9,09 kg
