Audio Press Box APB-D100 R

Audio Press Box APB-D100 R
4438.77 Lei
*pretul include TVA
La comanda
Audio Press Box
cod produs: APB-D100 R
Descrierea Produsului

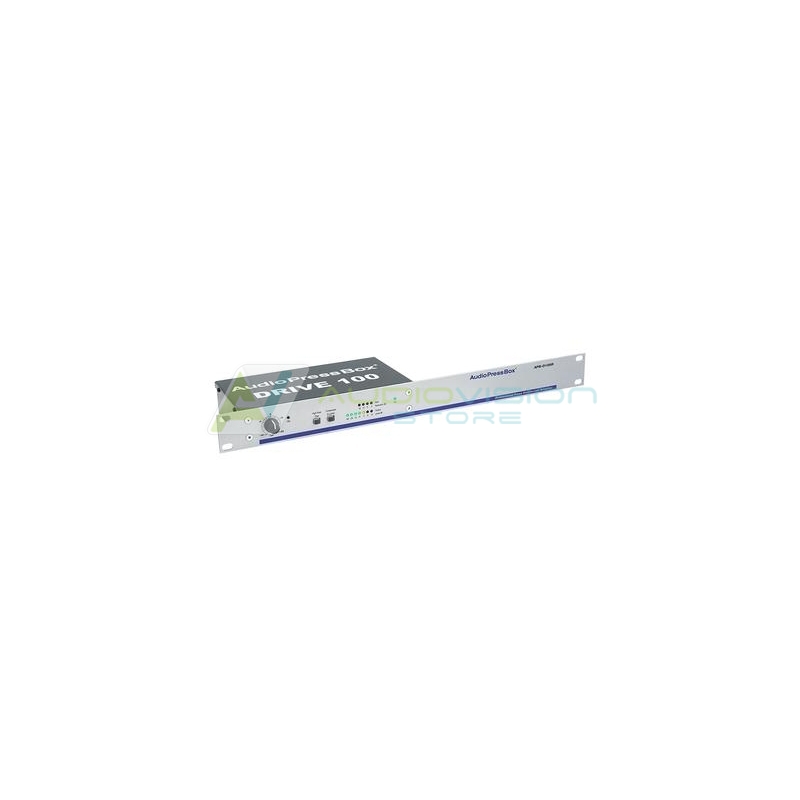

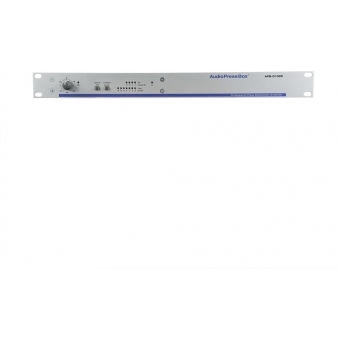

Active 19” rack AudioPressBox distribution Drive unit, 1 LINE Input, 2 buffered Outputs for 6 AudioPressBox expanders

A professional active press box drive unit (Audio Splitter) serving as a source for AudioPressBox expanders.
It features 1 Line Input and 2 buffered expander Outputs.
It is a 1 channel drive unit with purpose of feeding any of our expanders.
This drive unit can power up to 48 Line/MIC outputs.
You can connect any of our expanders to it.

Drive unit for : APB-008 SB-EXAPB-008 IW-EXAPB-008 OW-EXAPB-008 FB-EXAPB-024 R-EXAPB-P008 OW-EXAPB-P008 IW-EX

  • Professional active 19” rack AudioPressBox Drive unit
  • 1 Balanced LINE Input
  • Switchable High-Pass filter
  • Switchable Compressor and Limiter for Input channel
  • 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 48 Line or Mic Outputs.

Note: Source of: APB-008 SB-EXAPB-008 IW-EXAPB-008 OW-EXAPB-008 FB-EXAPB-024 R-EXAPB-P008 OW-EXAPB-P008 IW-EX

COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

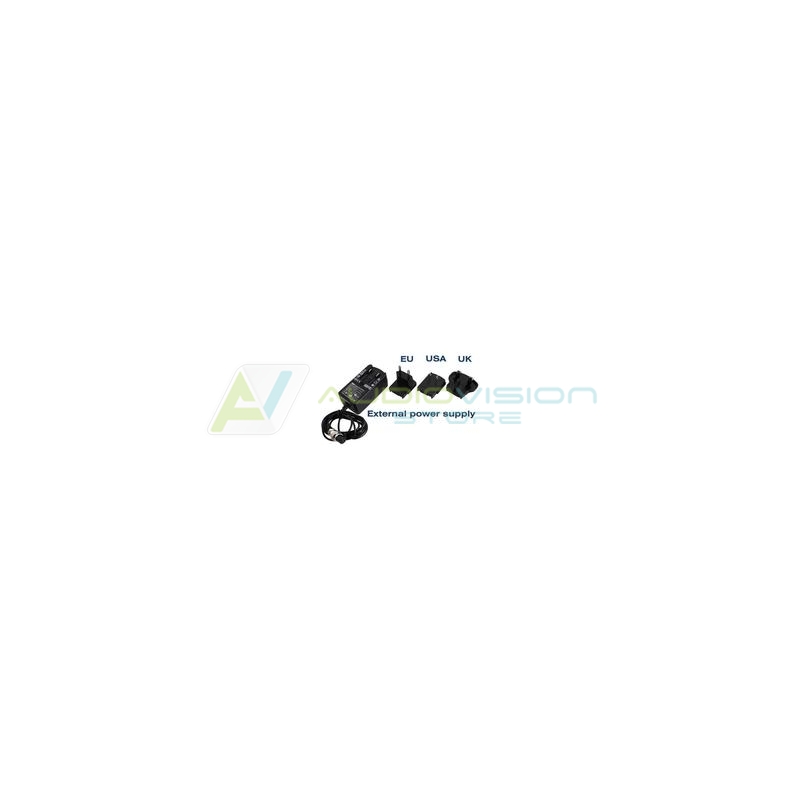

24V 24V DC Power Supply

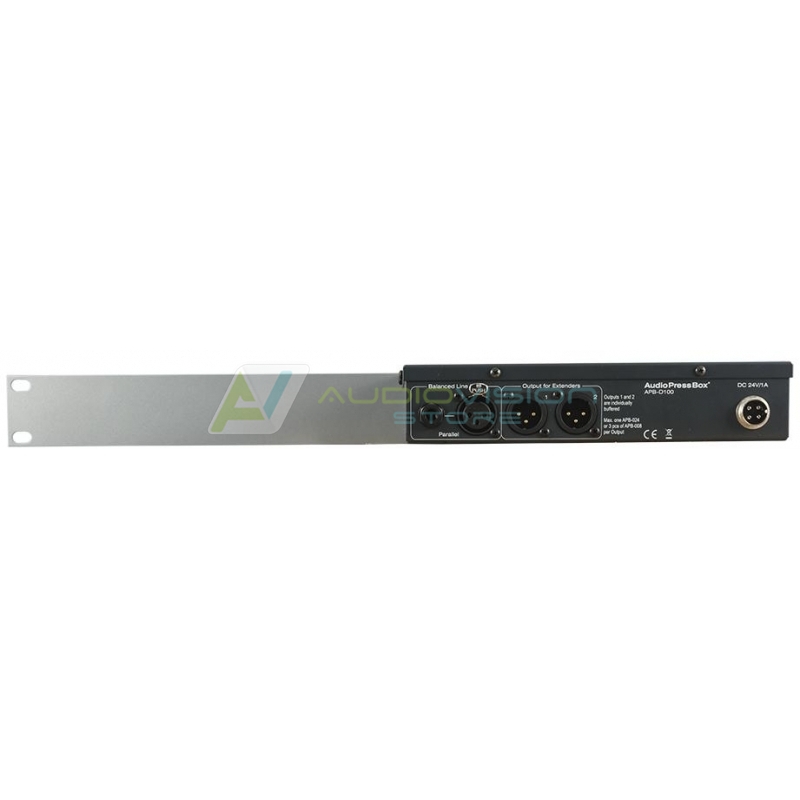

driver 2x24 2 x buffered expander outputs

Type1 IN/ 2 Drive OUT for 6xAPB 8-Output expanders or 2xAPB 24- Output expander Note: Total capacity:48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)Input sectionInputs1Input connectorsBalanced, XLRMax. input levelLine: +32/+2dBuInput Impedance>5kOhmOutput sectionOutputs2 separately buffered, balanced outputs for AudioPressBox expandersOutput connectorsBalanced, XLRNominal Output Level+6 dBuMaximum Output Level+20dBu with 48 Outputs in use
+16dBu (600kOhm)Output impedanceMic: 220 OhmLine: 600 OhmTransformer isolated outputsYes (each EXPANDER output is Independant Transformer Isolated)SNR86dB at 0dB Gain
78dB at +20dB GainFrequency Response30/160Hz (filter) to 60kHz/-1dBControlsInput gain, Compressor and Limiter, High Pass Filter, PowerIndicatorsInput clip, Output level, Gain reduction, PowerPower Supply24V DC, 300mA external adaptor
