APB-Portable PressBox Pack

APB-Portable PressBox Pack
15867.42 Lei
*pretul include TVA
La comanda
Audio Press Box
cod produs: APB-1.32 CB
Descrierea Produsului

Portable AudioPressBox case bundle, 1 Line Input, 32 Line/MIC Outputs (4x 8 Line/MIC Outputs).

A professional portable active press box bundle consisting of a AudioPressBox drive unit and AudioPressBox portable expanders.
It features 1 Line Input and 32 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The drive unit has 2 buffered expander Outputs and can power up to 48 Line/MIC Outputs.
You can connect any of our expanders to the drive unit not only the ones in the case.
All of this is placed in a waterproof, heavy duty nanuk case.

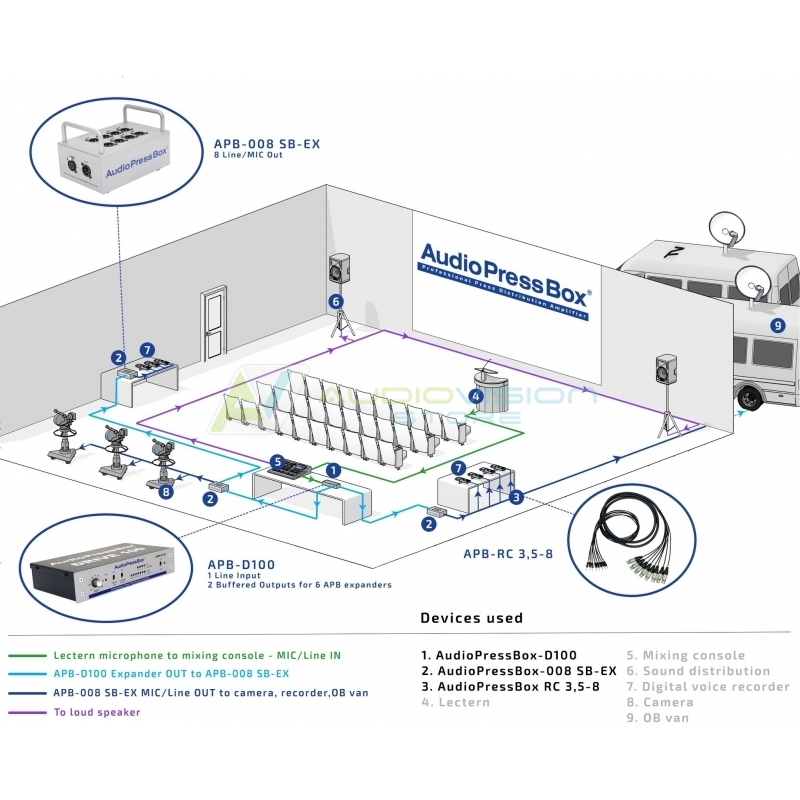

The biggest advantage of this bundle is that you can daisy chain the portable expanders in 2 directions. The total length of the cable in each direction can go up to 500m so you can easily cover any type or shapre of a conference room.

Professional portable AudioPressBox bundle includes:

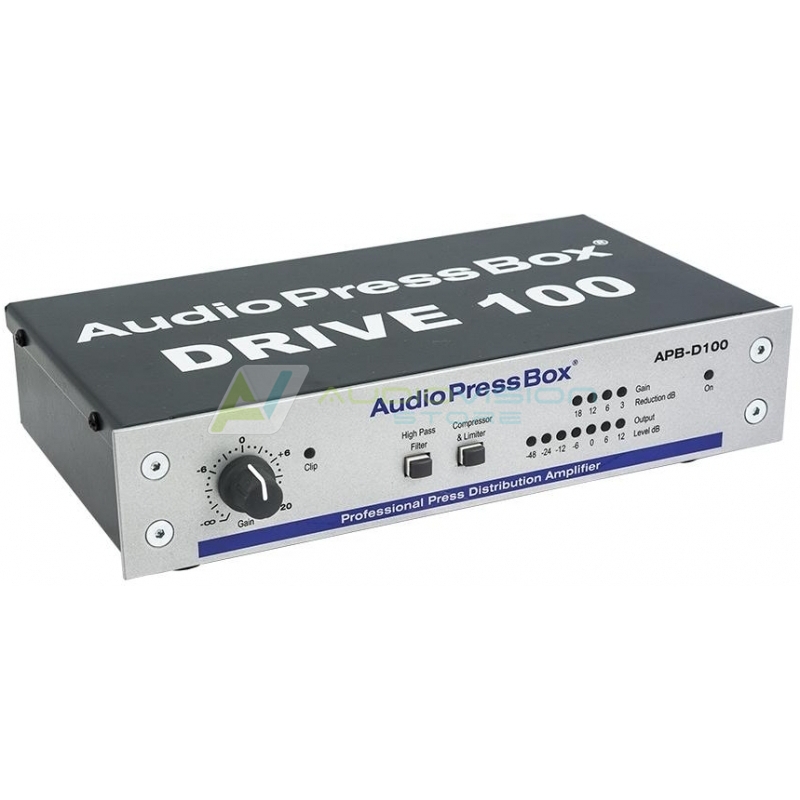

1x APB-D100 drive unit:
• 1 balanced LINE Input
• Switchable High-Pass filter
• Switchable Compressor and Limiter for Input channel
• 2 separately buffered Outputs
Pack includes 4 AudioPressBox expanders with 8-outputs each.

4x APB-008 SB-EX expanders:
• 1 balanced Input for APB drive unit with link Output for another unit
• 8 High quality balanced Outputs, independent transformer isolated and switchable LINE or MIC Output level.

1x Professional waterproof, special heavy duty case

COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.
24V 24V DC Power Supply
driver 2x24

2 x buffered expander outputs







8x TRANSFORMER (8x4) Transformer Separately transformer isolated outputs. Total 32 Line/Mic outputs.
Audio Press Box APB-D100
Type 1 IN/ 2 Drive OUT for 6xAPB 8-Output expandersor 2xAPB 24- Output expander Note: Total capacity:48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)
Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 2 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors Balanced, XLR
Nominal Output Level +6 dBu
Maximum Output Level +20dBu with 48 Outputs in use
+16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm​
Transformer isolated outputs: Yes (each EXPANDER output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators Input clip, Output level, Gain reduction, Power
Power Supply 24V DC, 300mA external adaptor


Audio Press Box APB-008 SB-EX
Type Expander
Groups 1
Inputs 1
Input connectors ballanced, XLR
Ouputs 8x Line/MIC level
Output connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level MIC: -20dBu
LINE: +6 dBu
Output Impedance MIC: 220Ω
LINE: 600Ω
