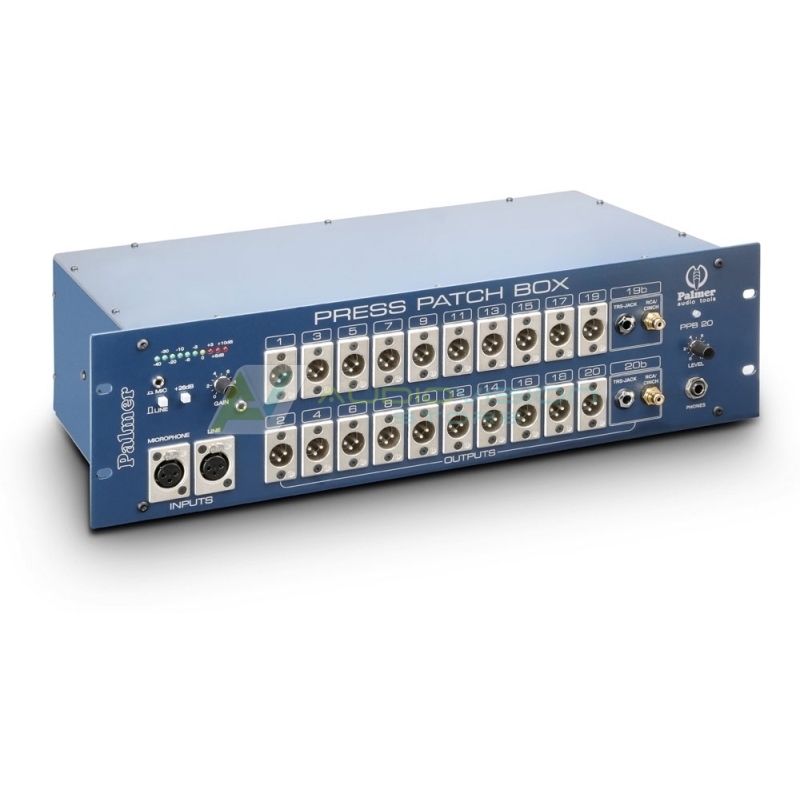

Palmer PB 20 - Press Patch Box 20-Channel

Palmer PB 20 - Press Patch Box 20-Channel
11267.94 Lei
7887.56 Lei
*pretul include TVA
La comanda
Palmer
cod produs: PPB20
Descrierea Produsului

A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).

Also available as a stereo version (PPB20S)

A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.

The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).

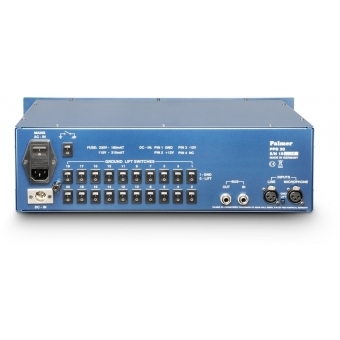

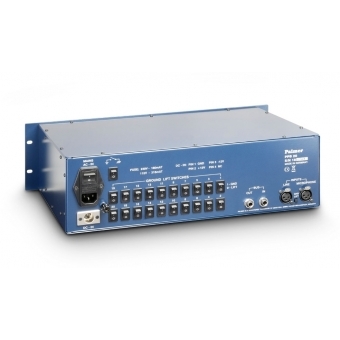

If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display corresponds to +4 dBu output).

The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.

  • Signal distributor with 20 outputs
  • Isolated transformer-balanced XLR inputs for microphone and line level signals
  • High-quality input amplifier with gain control and +20 dB switch
  • 10 LEDs for level display from -40 to +10 dB

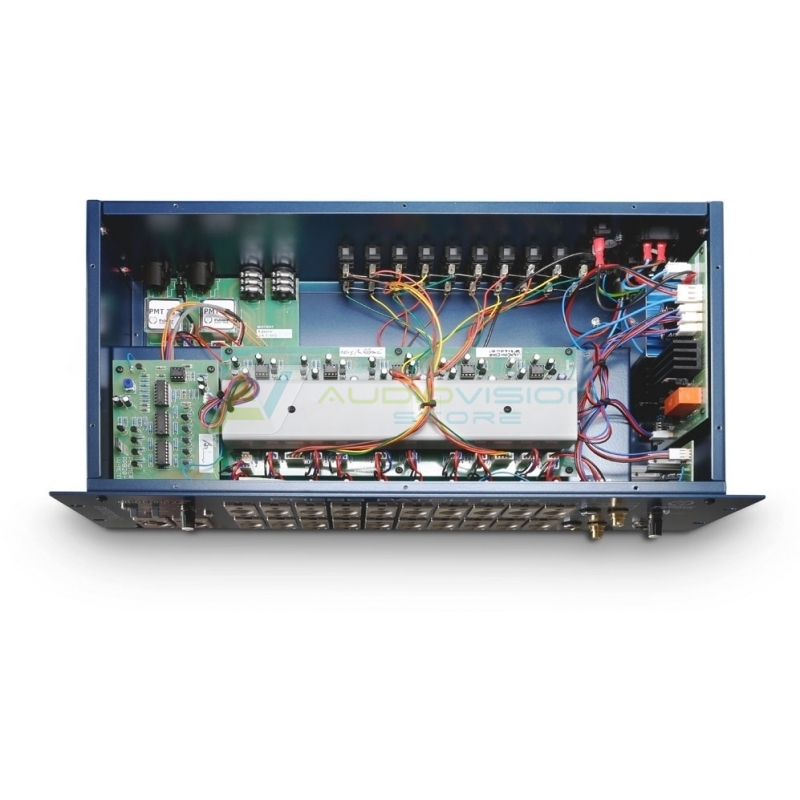

  • 20 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
  • 2 additional 6.35mm stereo jacks and RCA outputs
  • Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
  • Adjustable 6.35 mm headphone output
  • Summed input and cascaded output
  • Integrated shielded power supply
  • DC input for emergency power supply
Product typeSplitters
Typemic & line split
Split type1 in 20
Channels1
Inputs1
Input connectorsXLR
Max. input levelMic: 0 dBu, Line: +20 dB
Adjustable inputYes
Number of split-outputs per canal20
Max. output level+ 20 dB
Output connectors6.3 mm jack, RCA, XLR
Adjustable outputno
Transformer isolated outputsYes
Controlsattenuator, ground lift, input gain, mic/line switch, phones level
Indicatorsinput level, Power
Operating voltageintegrated (115 / 230 V)
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm, 19 "
Depth200 mm
Height135 mm, 3 U
Weight9,09 kg
