Palmer PB 10 - Press Patch Box 10-Channel

Palmer PB 10 - Press Patch Box 10-Channel
6396.67 Lei
4477.67 Lei
*pretul include TVA
La comanda
cod produs: PPB10
Descrierea Produsului

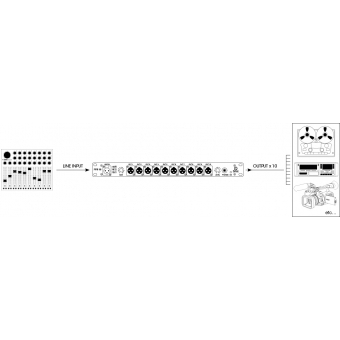

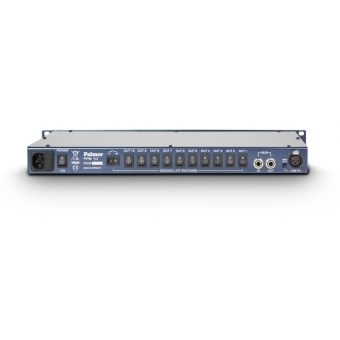

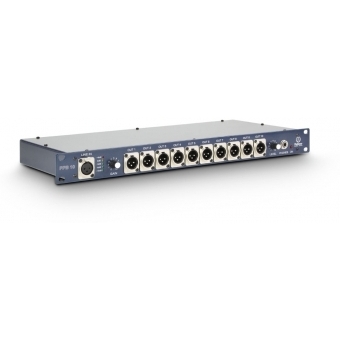

The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.

  • All inputs and outputs are balanced transformer isolated
  • Extremely reliable: Should one output be shorted, the other outputs remain unaffected
  • Line input and outputs
  • Adjustable input gain (-8 to +25dB)
  • Level meter
  • Headphone output to monitor the input level, headphone volume adjustable
  • Individual ground lift switches for each output
  • Ground Lift switch for the input
  • Expandable setup thanks to the Bus In/Out sockets - allowing you to cascade numerous PPB10 (or PPB20)
Product typeSplitters
Typeline split
Split type1 in 10
Input connectorsXLR
Max. input level+ 20 dB
Adjustable inputYes
Number of split-outputs per canal10
THRU outputs/channel1
Max. output level+ 4 dB
Output connectorsXLR
Adjustable outputno
Transformer isolated outputsYes
Controlsground lift, input gain, phones level, Power
Operating voltageintegrated (115 / 230 V)
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm, 19 "
Depth205 mm
Height45 mm, 1 U
Weight4,18 kg
