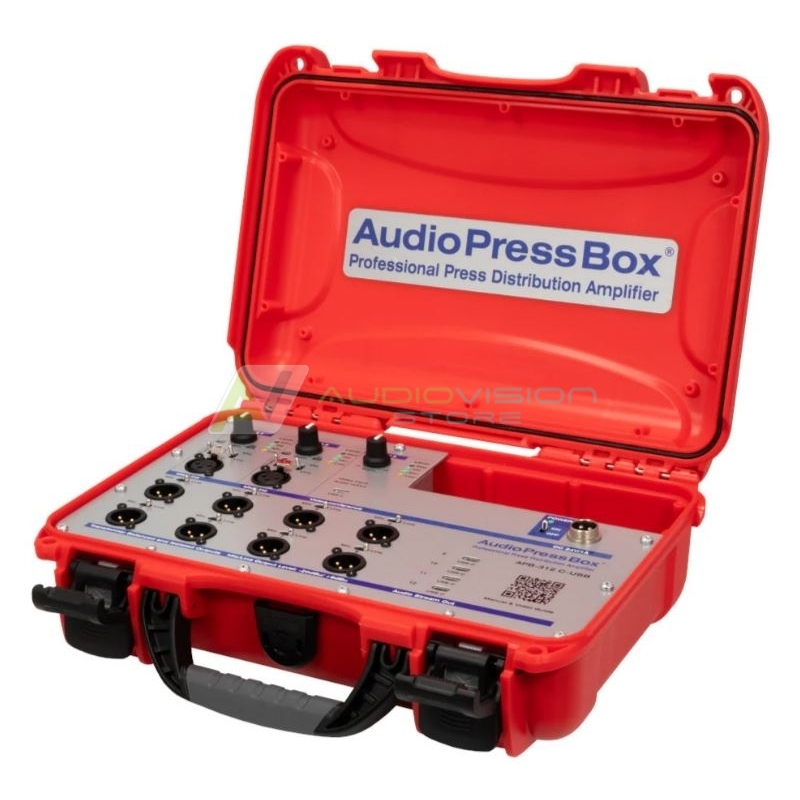

Pressbox portabil, activ, profesional cu 2 intrari analogice linie/microfon, 1 intrare si iesire digitala USB-C si 8 linie analogica/microfon, 4 iesiri digitale USB-C. Este potrivit atat pentru conferinte de presa in interior, cat si in exterior datorita carcasei Nanuk rezistente. USB-C permite, de asemenea, o conexiune de intrare si iesire video pentru o conferinta hibrida de presa.
Audio Press Box APB-312 C-USB:
| Tip | 3 intrari 12 iesiri | |
| Grupuri | 1 | |
| Intrari | 2 analog, 1 digital | |
| Conectori intrare | XLR Balansat | |
| Gain Intrare | Mic: +22/+62dB | Line: -4/+36dB |
| Nivel max. intrare | Mic: -10/-30dBu | Line: +36/-4dBu |
| Voltaj Phantom | 48V | |
| Impetanta intrare | Mic: 2,4 kΩ | Line: 3,5 kΩ |
| Intrari /Iesiri Digitale | ||
| Conector intrare | USB Type C | |
| USB Tip | USB 2.0 | |
| Gain Intrare | -∞/ +6 dB | |
| Rata sampling | 32kHz, 44.1kHz, 48kHz | |
| Bit | 16-Bit | |
|
Interfata alimentare: |
Bus Powered* | |
| Posibilitate incarcare: | Nu | |
| Iesiri | 8 Analog cu nivel Line/ MIC, 4 Digital | |
| Iesiri analog | ||
| Conectori iesire | XLR Balansat | |
| Nivel nominal iesire | +6dBu | |
| Nivel maxim iesire | +20dBu (no load) +14dBu (600Ω) |
|
| Impedanta iesire | Mic: 220Ω | Line: 600Ω |
| Iesiri izolate-transformator | Da (fiecare iesire) | |
| SNR | 86dB | |
| Raspuns in frecventa | 120Hz to 30kHz/ -3dB | |
| Iesiri Digitale | ||
| Conector iesire | USB Tip C | |
| tip USB | USB 2.0 | |
| Rata Sampling suportata | 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz | |
| Bit : | 16-Bit | |
| Alimentare interfata | Bus Powered* | |
| Posibilitate incarcare | Nu | |
| Control | ||
| Intrare | 26dB PAD, Gain intrare, Phantom | |
| Iesire | Power switch, Output PAD | |
| Indicatori | ||
| Intrare | Phantom power, nivel intrare | |
| Putere | ||
| Alimentare | 24V DC, 1A adaptor extern | |
| Baterie | Nu | |
| Dimensiuni (LxIxA) | 370x 120x 300mm | |
| Greutate | approx. 2.9 kg | |
*Interfata USB este alimentata de la dispozitivul USB conectat
