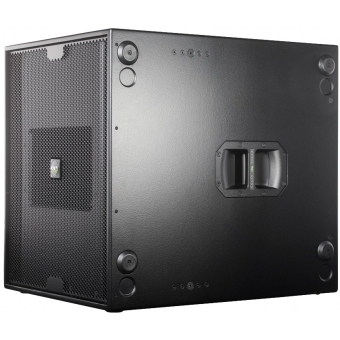

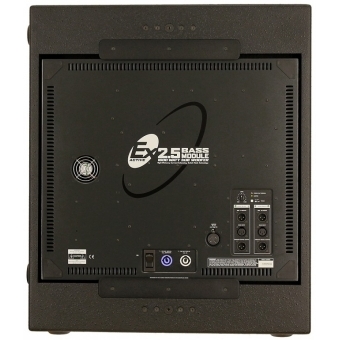

EX2.5 MkII - Low Frequency Solution

KV2 Audio
cod produs: KVV 987 179
La comanda
19966.01 Lei
*pretul include TVA

Descrierea Produsului


  • Professional, Baltic birch construction with wear resistant polymer coating
  • 137dB sustained output 140dB peak (when used with an ES2.6)
  • 1600W high efficiency, current enhancing, switching low frequency amplifier
  • Speaker level AP4 output to drive one additional passive ES2.6 subwoofer
  • Complete on board subwoofer management including equalization, crossover, filters, amplifier overdrive protection, output level and phase controls
  • Excellent reproduction of sub bass frequencies with high transient content at high output levels
  • Stereo or Mono inputs with through signal outputs and 125Hz High Pass outputs
  • Two 15" high output, low frequency drivers with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures
  • Four propietry side handles for simplified handling and carrying
  • Heavy duty front grille to work with the innovative new EX2.5 magnetic cart
  • Acetyl copolymer high impact, low friction feet are located on two sides allowing vertical or horizontal set up and easy cabinet movement Feet lock in to the new ES subwoofers
  • Six internal corner braces with twelve M10 suspension points M20 top hat for pole mounting applications
  • LED indicators for signal present, limiter, thermal condition and power ON status

System Acoustic Performance

Max SPL Long-term 134dB
Max SPL Peak 131dB
-3dB Response 38Hz to 125Hz
-10dB Response 34Hz to 125Hz
Crossover Point 125Hz

Output Channels

Number of Channels 1
Minimum load impedance per channel

Low Frequency Section

Acoustic Design Twin Asymmetrical loading
Woofer Size / Voice Coil Diameter / Design 2x 15" / 4" / Inside Outside
Diaphragm Material Epoxy Reinforced Cellulose
Magnet Type Ferrite

Low Frequency Amplifier Specification

Type High efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power 1600W
Distortion <0.05%
Operating Bandwidth 34Hz to 125Hz

Signal Input

Input Channels 2
Input Sensitivity 1.0V RMS
Input Impedance 20kΩ (balanced)

Signal Output

Signal Output Channels Mid/High, Through
Slave Speaker Output AP4


Level Control -6 to +6dB
Phase 0° / 180°
RMS Limiter YES
Indicators Power ON/Thermal, Limiter

Power Requirements

Power Connector Neutrik PowerCon®
Output Power Connector Neutrik PowerCon®
Operating Voltage 115V / 230V / 250V
Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage 16A 115V | 8A 230V | 8A 250V


Cabinet Material Baltic birch
Handles 4
Pole Mount M20
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 711.5 mm (28.0")
Width 602.6 mm (23.72")
Depth 750 mm (29.52")
Weight 97 kg (214lbs)

Specificatiile Produsului

  • Dimensiune Difuzor 4", 15"
  • Dupa aplicatie Instalatii fixe
  • Incinta Lemn
  • Putere RMS > 1000 w
