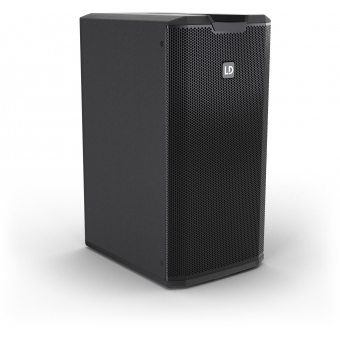

LD Systems MAUI® 11 G3 SUB - Powered 2 x 8" Subwoofer for MAUI 11 G3

LD Systems MAUI® 11 G3 SUB - Powered 2 x 8" Subwoofer for MAUI 11 G3
4289.91 Lei (-15%)
3646.42 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDM11G3SUB
Descrierea Produsului


Crisper and more powerful bass with additional LD MAUI 11 G3 SUB subwoofer.

With the MAUI 11 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.

What does this mean?

Simply position the SUB next to your MAUI® 11 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI® 11 G3 and switch off the Cardioid preset.

Setting up the SUB with your MAUI® 11 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.

Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.

The MAUI® 11 G3 SUB features the same design construction as the MAUI® 11 G3 subwoofer and will be the perfect addition to get your Low-End in control.

  • Powered 2 x 8" subwoofer with flow-optimised bass-reflex ports
  • 2 x 8" custom-designed woofer with deep bass down to 39 Hz
  • Preset for cardioid subwoofer configuration
  • DynX® DSP (Gen. 2) technology for distortion-free sound at maximum volume
  • Automatic Setup Detection (MAIN / FOLLOWER)
  • Rugged subwoofer housing made out of polyurea-coated birch plywood
  • Shockproof front grille for ultimate speaker protection
  • Two ergonomic handles for easy handling
Product typePA subwoofer
TypeSubwoofer
ColorBlack
Max. SPL (Peak)125 dB
Frequency response (-10dB)39 Hz - 20000 Hz
Weight20,5 kg
FeaturesBluetooth Audio Streaming
FeaturesCardioid column
FeaturesDSP-based Signal Processing
FeaturesExcellent Sound Dispersion
FeaturesMono/ Stereo Application

Subwoofer

Woofer dimensions2 x 8 "
Woofer dimensions (mm)2 x 203 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
Cabinet constructionBass Reflex
Housing material15 mm Birch Plywood
Cabinet surfacePolyurea
Dimensions Subwoofer (W x H x D)305 x 607 x 403 mm
Subwoofer weight20.5 kg

Amplifier module (integrated in subwoofer)

AmplifierClass D
System output (RMS)730 W
System output (Peak)1460 W
Protection circuitsDC protection
Protection circuitsMultiband limiter
Protection circuitsshort circuit
Protection circuitsthermal protection
CoolingConvection
ControlsBluetooth
ControlsCardioid On/Off
ControlsMain level
ControlsPower On/Off
ControlsSub level
IndicatorsBluetooth
IndicatorsCardioid On/Off
IndicatorsFollower mode
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
IndicatorsSubwoofer Mode
Mains connectorIEC power cable (included)
Operating voltage100 V AC - 120 V AC, 50 - 60 Hz
Operating voltage220 V AC - 240 V AC, 50-60 Hz
FuseT 3.15AL / 250 V
Power consumption300 W
Ambient temperature (operating)0 - 40 °C
Relative Humidity< 80% (non-condensing)
Line Inputs2
Line Input ConnectorsCombo XLR / TRS
Line Outputs1 x Sub OUT
Line Outputs2 x THRU
Line Output ConnectorsXLR male
Number of speaker outputs1
Loudspeaker Output ConnectorsCustom-made multipin
Bluetooth StandardA2DP
Bluetooth Audio DecoderAAC
Bluetooth Audio DecoderSBC

DSP characteristics

Bit depth AD/DA converter24 bit
Sampling frequency48 kHz
