Amplificator Powersoft Duecanali 804

Amplificator Powersoft Duecanali 804
6310.19 Lei
*pretul include TVA
La comanda
Powersoft Audio
cod produs: O460
Descrierea Produsului

OVERVIEW CHART

Compact and light weight, it can be used as an addition to existing systems to enhance audio reproduction in small to medium sized areas. As a standalone unit, the Duecanali 804 amplifier platform shines with outstandingly low power consumption and thermal dissipation.

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket

Protections
Fully protected circuit design with:

  • AC protection: shut down power supply when AC mains voltage is outside operating range
  • Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
  • VHF protections: protects the loudspeakers against non-audible, strong, non-musical high-frequency signals
  • Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
  • Long-term limiter: protects the loudspeaker against steady long-term rms (non-audio) signals reducing maximum output
  • Thermal protection: output stages operating temperature up to 80 °C (176 °F)
  • Temperature controlled continuous variable speed fan, front to back airflow

General

  • Fixed frequency switchmode output stage for high-grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Lightweight - for easier racking and shipping: 7 kg (15.4 lbs)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms and GPIO
  • Remotely dimmable inputs per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPI/O

  • General Purpose Input/Output alarm interfaces:
    • dangerous DC in the output power signal
    • thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote ON/OFF switch

Remote Control & Monitoring

  • Via Software:
    • Attenuation (from 0 dB to 26 dB)
    • Max output voltage
    • Output and gain reduction metering
    • Diagnostics (temperature, fans, …)
  • Via Hardware:
    • Attenuation (from 0 dB to 26 dB)
    • High Pass Filter (35 Hz, 70 Hz)
    • LoZ/HiZ/70V/100V output selection
    • Gain (from 26 dB to 35 dB)
General
Number of channels 2

Output power Single channel mode Distributed line* Bridge mode
  2 Ω 4 Ω 8 Ω   70V 100V 4 Ω 8 Ω
  500 W 400 W 400 W   400 W 400 W 1000W 800W
Max output voltage / current 80 Vpeak / 39 Apeak

AC Main Power
Power supply Universal, regulated switch mode with PFC
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 60 V - 264 V
Power consuption** 115 V   230 V
Idle 25.6 W 0.38 A   24.7 W 0.23 A
1/8 of max output power @ 4 Ω 150 W 1.4 A   149 W 0.92 A

Thermal
Operating temperature range 0° - 45° C - 32° - 113° F
Thermal dissipation** 115 V   230 V
Idle 87 BTU/h 21.9 kcal/h   84 BTU/h 21.2 kcal/h
1/8 of max output power @ 4 Ω 171 BTU/h 43.1 kcal/h   168 BTU/h 42.3 kcal/h

AUDIO
Gain 26 dB 29 dB 32 dB 35 dB
Input sensitivity 2.84 V 2.01 V 1.42 V 1.01 V
Max input level 20 dBu 20 dBu 20 dBu 20 dBu
Frequency response 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω or (±2.5 dB) @ 32W, 70V lines / 65 W, 100V lines
S/N ratio > 106 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation <70 dB @ 1kHz
THD+N < 0.1% from 0.1 W to full power (typically <0.05%)
IMD < 0.05% from 0.1 W to full power (typically <0.05%)
Input impedance 20 kΩ balanced
Slew rate > 50 V/μs @ 8Ω, input filter bypassed
Damping factor > 500 @ 20-100 Hz (Lo-Z)

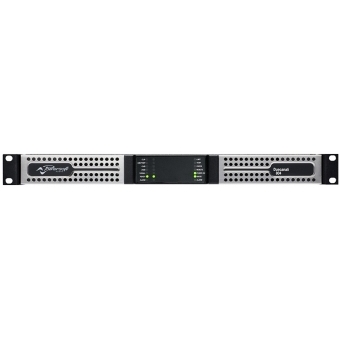

Front panel
Indicators and Controllers 1 x LED - Status
1 x LED - Over-temperature protection
1 x LED bar - Signal level + CLIP
1 x LED bar - Signal level and over-temperature protection
1 x Knob - Level attenuator (continuous)
1 x Push-button - Setting operating parameters
1 x Push-button - Preset selector
1 x DIP switch - Toggle energy save on/off per channel pair
1 x Power switch -
Connectors
AC main 1 x IEC C20 connector - 20 A max (region-specific power cord provided)
Audio signal input 2 x 3 pin Phoenix MC 1.5/3-ST-3.81 - Signal input – MAIN
Alarm 1 x 12 pin Phoenix MC 1.5/12-ST-3.81 - Alarm connector
Remote command 1 x 4 pin Phoenix MC 1.5/4-ST-3.81 - Remote on/off switch and aux voltage
Network/data 1 x USB plug - USB connection
1 x Rj45 socket - RS485 data connection (non-DSP version)
1 x Rj45 socket - DANTE®

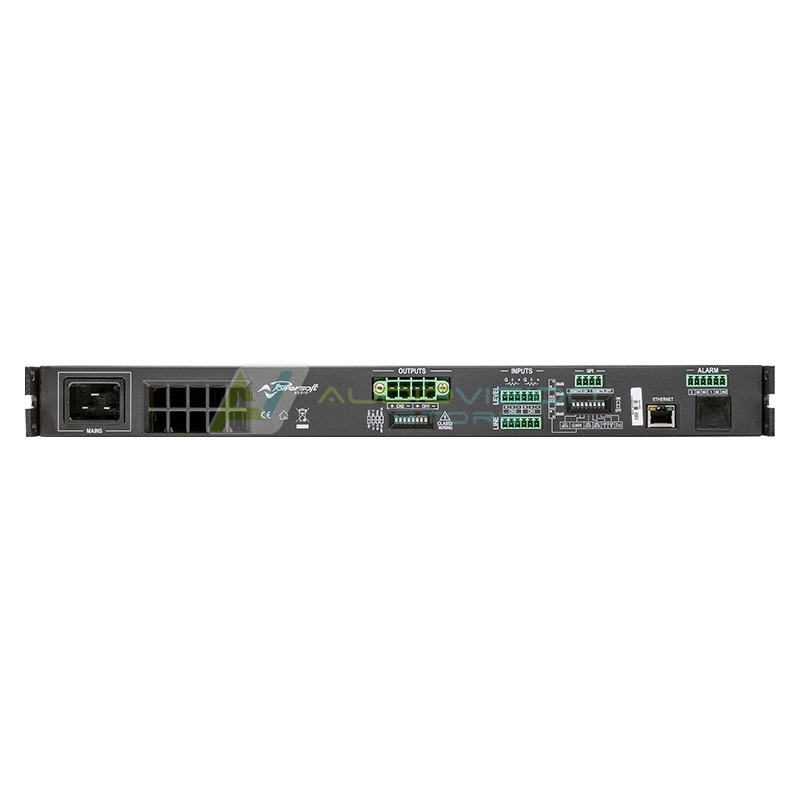

Rear panel
Indicators and Controllers 1 x DIP switch - Toggle lo/hi impedance connection
1 x DIP switch - Toggle 70V/100V distributed line nominal voltage
1 x DIP switch - Toggle High Pass Filter
1 x DIP switch - Toggle 35Hz/70Hz HPF cutting frequency
Audio
Amplifier Highly efficient Powersoft Class D circuitry

Construction
Dimensions (L x H x W) 483 mm x 44.45 mm x 360 mm (19.0 in x 1.8 in x 14.2 in)
Weight 7 kg (15.4 lb)



* Data is subject to change without notice.
