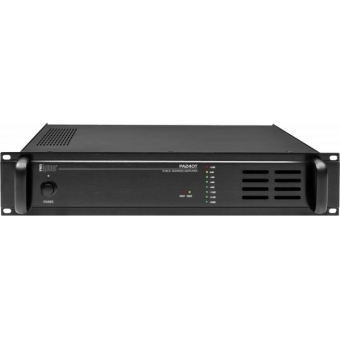

Mono amplifier with the output transformer.
Features:
Output: low impedance (4 -16 Ohm) and constant voltage (70,100 V).
Input/link: balanced XLR Line.
Output: screw terminal block.
Switchable 400 Hz high-pass filter.
LED Indicator output level.
Thermal protection and short circuit.
It can be powered at 24 Vdc.
2U 19'' standard rack.
AMPLIFIER
- Channels:1
- Circuit class:analog
OUTPUT
- Power at constant voltage (70/100V):240W
- Power at low impedance (4 Ohm):240W
AUDIO SPECIFICATIONS
- Frequency responce:60 - 20000Hz @ 8 Ohm(±0.5 dB)
- THD+N:<1%
- Input impedance:10kΩ
- Signal/Noise rate:>90dB
POWER SUPPLY STAGE
- Type:Trasformer
- Operating voltage/frequency:230 V AC (+/- 5%) / 24 V DC
PROTECTIONS
- Output:Soft-start, short circuit, DC, overheat
FUNCTIONS
- Volume control:-12 to 0dB
- HPF selector:400Hz
INDICATORS
- Indicators:LED bar - signal level, over temperature and protection

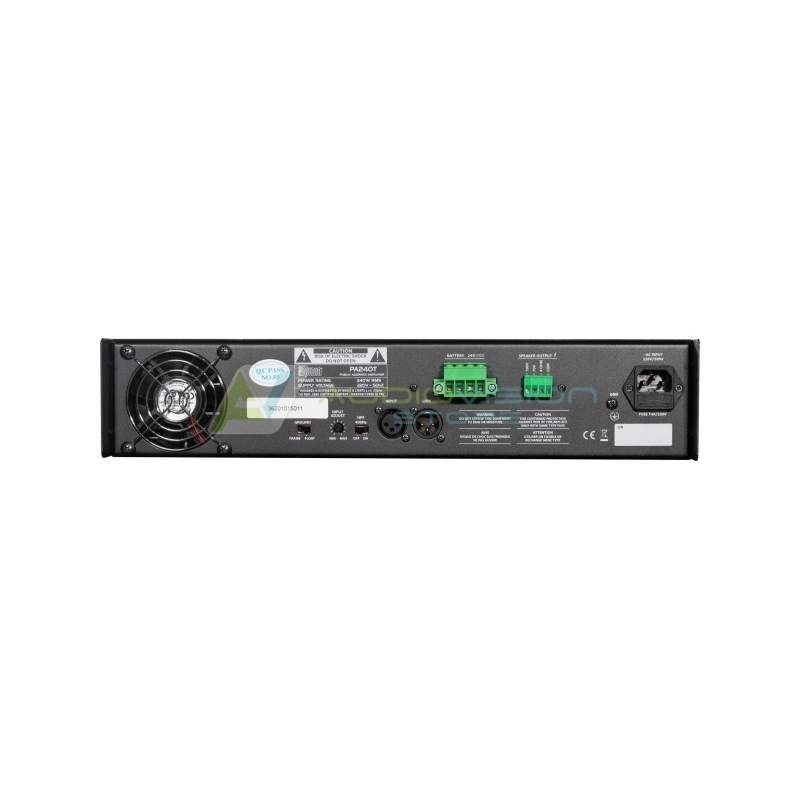

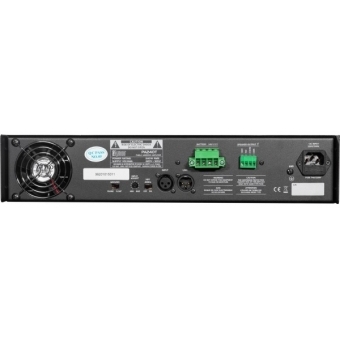

INPUT/OUTPUT CONNECTORS
- Input signal:XLR in/out
- Output signal:screw terminal block
- Power connection:VDE
PHYSICAL
- Cooling:active, silent operation
- Dimensions (WxHxD):483x89x377mm
- Rack unit:2
- Weight:17kg
