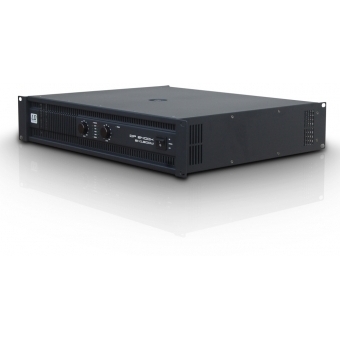

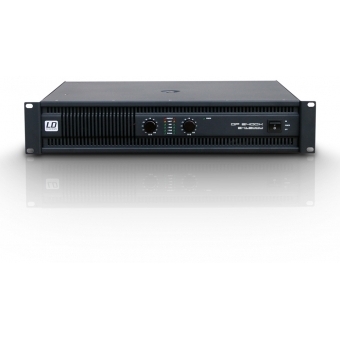

LD Systems DEEP2 2400 X - PA Power Amplifier 2 x 1200 W 2 ohm

LD Systems DEEP2 2400 X - PA Power Amplifier 2 x 1200 W 2 ohm
3499.96 Lei
2449.97 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDDP2400X
Descrierea Produsului

The DP2400X is the newest member of the DEEP2 family of power amplifiers.

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Product typePower Amplifiers
TypePA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms)2 x 1200 W
Rated ouput power (1kHz @ 4 Ohms)2 x 950 W
Rated ouput power (1kHz @ 8 Ohms)2 x 600 W
Rated ouput power (1kHz @ 4 Ohms, bridged)2200 W
Rated ouput power (1kHz @ 8 Ohms, bridged)1800 W
Output circuitryClass H
Frequency response20 - 20000 Hz
Total Harmonic Distortion (THD)< 0.1 %
Signal-to-noise ratio106 dB
Damping factor> 450
Crosstalk>76 dB
Gain39 dB
Input sensitivity0.775 V
Protection circuitsclip limiter, DC protection, short circuit, thermal overload
Controls2 x highpass/lowpass (switchable), 2 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off)
Indicatorslevel, Limit, Power, Protect (protection circuit engaged), Signal
Loudspeaker outputs2
Speaker output connectionsSpeakon compatible, Terminal posts
Coolinghighly efficient, automatic
Operating voltagetransformer, 230 V AC / 50-60 Hz
Weight17,6 kg
FeaturesVolex mains socket
