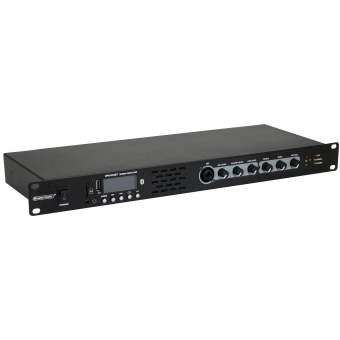

de la in 60 de rate fixe.19" mixing amplifier with audio player, Bluetooth and 2 x 50 W power
audio player
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| Protection class: | Protection class I |
| Output power: | 30 W RMS (8 ohms) 50 W RMS (4 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Frequency range: | 20 - 20000 Hz |
| Cooling: | Cooling fan |
| Bluetooth device name: | OMNITRONIC EPA-100BT |
| Housing color: | Black |
| Circuitry: | Class D |
| Display type: | Monochrome LCD display |
| Display reading: | Play time elapsed |

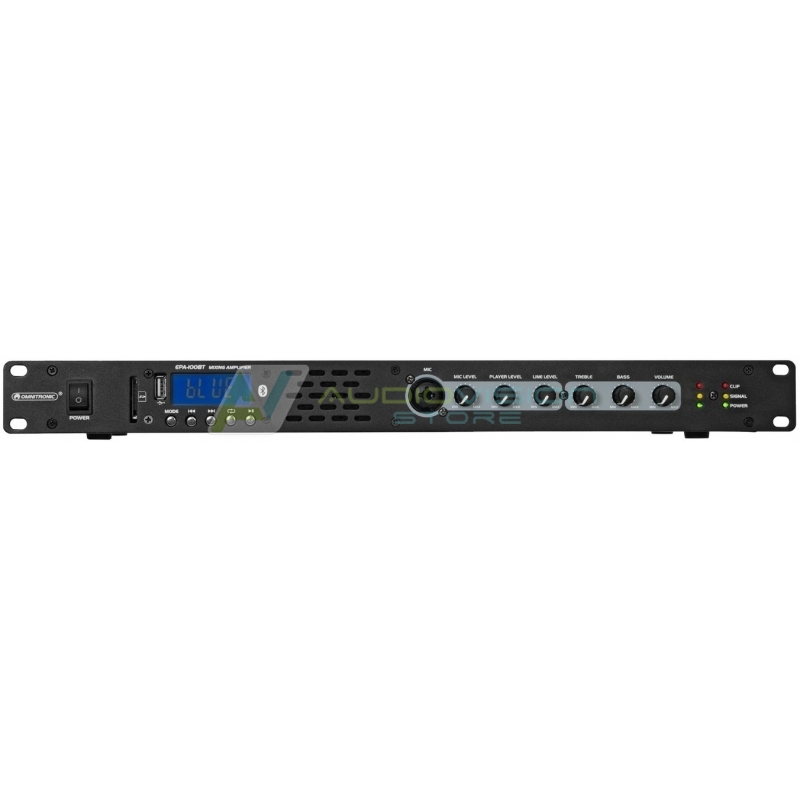

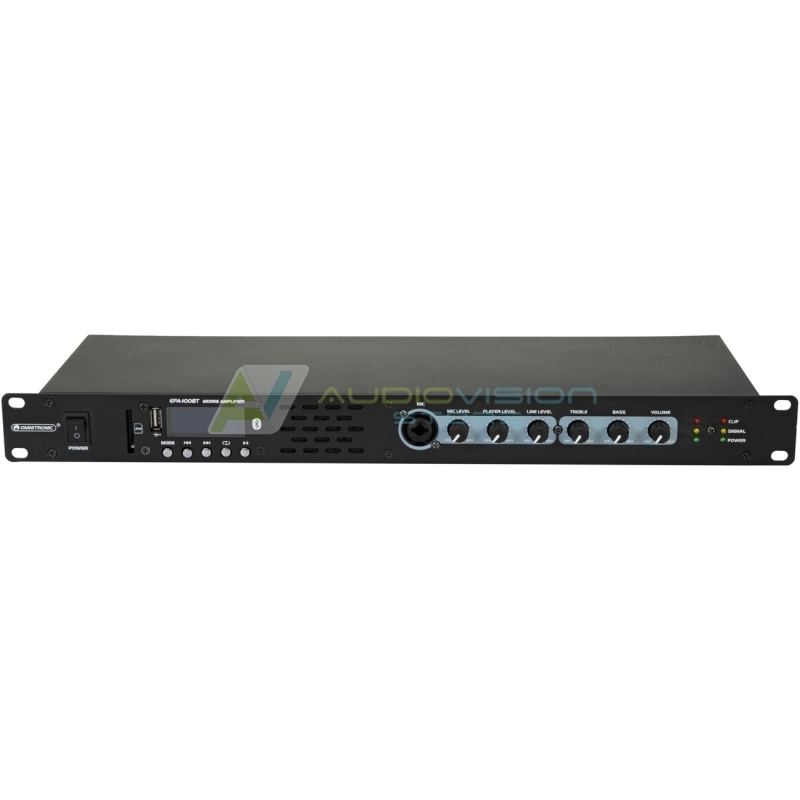

| Control elements: | Power switch, groundlift selector, audio player, level control, Master control; tone control |
| Controls: | Limiter |
| Status LED: | Power, signal, clip |

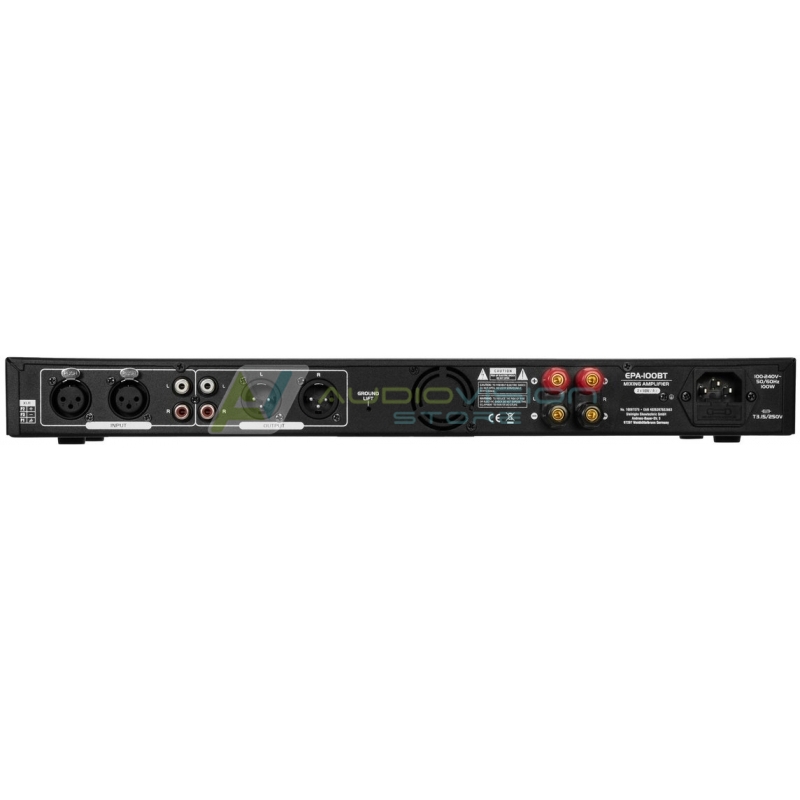

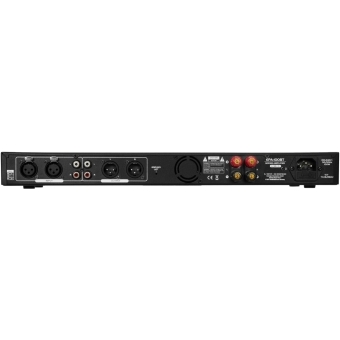

| Connections: | Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: line via 2 x 3-pin XLR Output: line via 1 x stereo RCA Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Housing design: | (19") 48.3 cm rack installation possible 1 U |
| Mounting depth: | 18.6 cm |
| Dimensions: | Width: 48.3 cm Depth: 21 cm Height: 4.45 cm |
| Weight: | 2.59 kg |
| Audio player | |
| Control: | Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Range: | Bluetooth: up to 10m |
| Carrier frequency: | 2.4 GHz |
| Music format: | WMA; MP3, WAV |
| Available storage media: | USB devices/SD cards max. 32GB |
