Amplificator Powersoft T304

Amplificator Powersoft T304
16878.48 Lei
*pretul include TVA
La comanda
Powersoft Audio
cod produs: T304
Descrierea Produsului

T304

4-Channel High-Performaqnce Amplifier Platform with DSP and Dante™

OVERVIEW CHART

The T Series is a very flexible and cost effective amplifier platform loudspeaker processor.

All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.

The amplifiers feature input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end and a WiFi access point at the other end and the amplifiers in-between.

General
Number of channels 4

Output power Single channel mode   Bridge mode
    4 Ω 8 Ω         8 Ω
    750 W 750 W         1500W
Max output voltage / current 145 Vpeak / 50 Apeak

AC Main Power
Power supply Universal, regulated switch mode
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V - 264 V
Power consuption** 115 V   230 V
Idle 32 W     32 W
1/8 of max output power @ 4 Ω 532 W 4.7 A   525 W 2.7 A

Thermal
Operating temperature range 0° - 45° C - 32° - 113° F
Thermal dissipation** 115 V   230 V
1/8 of max output power @ 4 Ω 537 BTU/h 135.3 kcal/h   512 BTU/h 129.0 kcal/h

AUDIO
Gain 32dB
Input sensitivity 2.57 Vrms
Max input level 24 dBu
Frequency response 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω
S/N ratio > 110 dB (20 Hz - 20 kHz, A weighted)
THD+N < 0.1% (typical < 0.5%)
IMD < 0.1% (typical < 0.5%)
Input impedance 20 kΩ balanced

DSP
AD Converter 24 Bit Tandem™ @ 48 kHz 125 dB-A Dynamic Range - 0.005% THD+N
DA Converter 224 Bit Tandem™ @ 48 kHz 125 dB-A Dynamic Range - 0.003% THD+N
Memory/presets 256 MB (RAM) plus 512 MB flash for presets /
Input equalizer Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Delay 2 s (input) + 100 ms (output) for time alignment
Limiters TruePower™, RMS voltage, RMS current, Peak limiter
Damping control Active DampingControl™ and LiveImpedance™ measurement

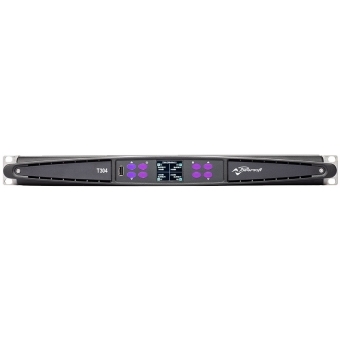

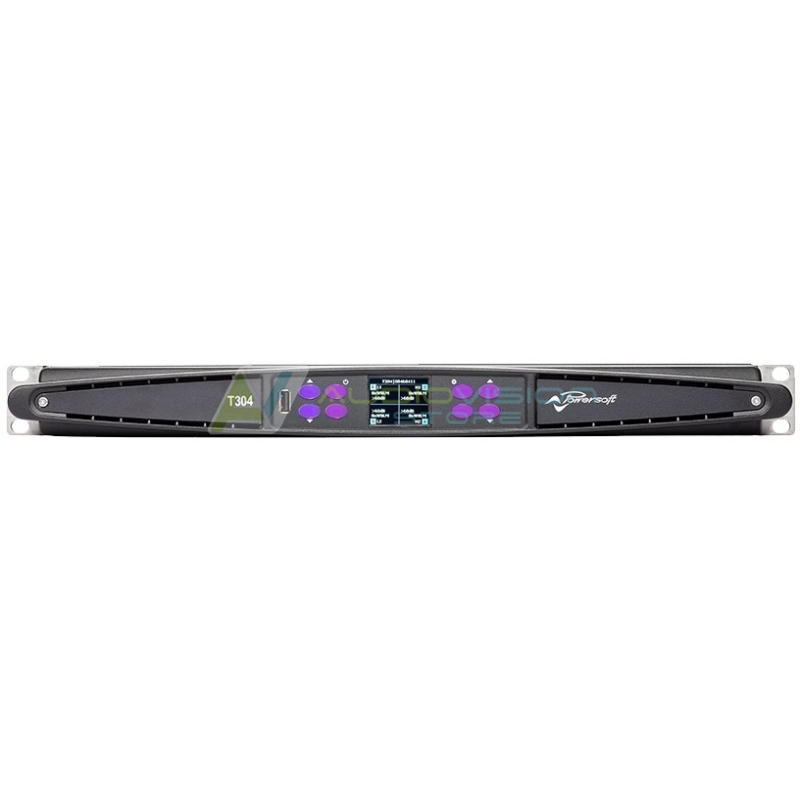

Front panel
Indicators and Controllers 8 x Push-button - Setting operating parameters
1 x Display - Settings and monitoring
1 x Power switch -

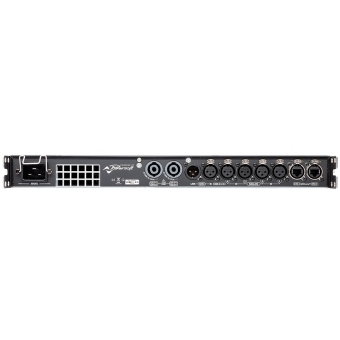

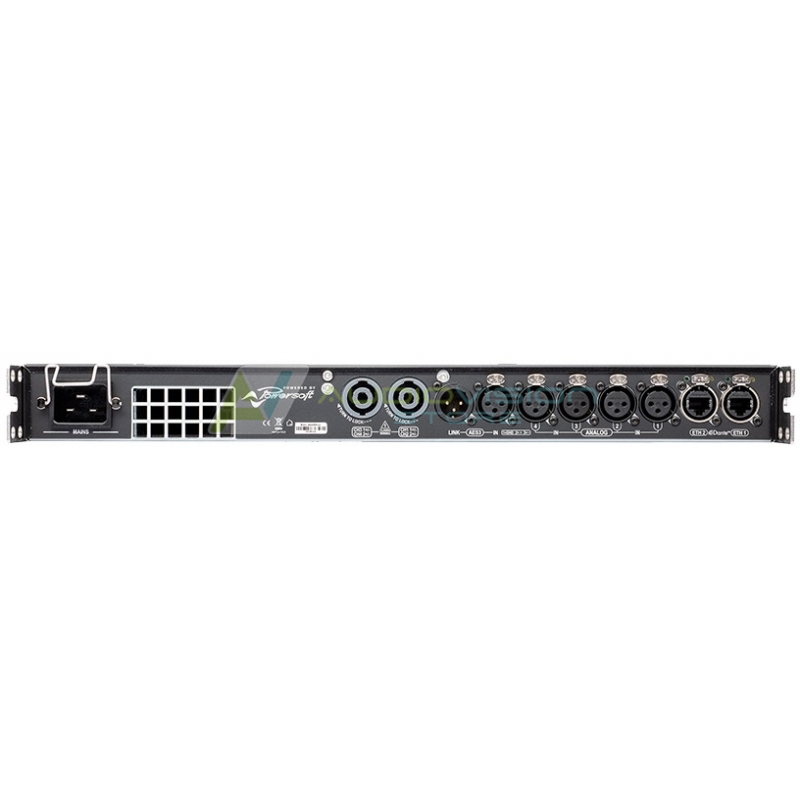

Connectors
AC main 1 x IEC C20 connector - 20 A max (region-specific power cord provided)
Audio signal input 4 x XLR - Signal input
Loudspeakers 2 x speakON - Neutrik NL4MD
Network/data 1 x Rj45 socket - RS485 data connection (non-DSP version)
1 x Rj45 socket - DANTE®

Construction
Dimensions (L x H x W) 484 mm x 44.5 mm x 405 mm (19.1 in x 1.8 in x 16.0 in)
Weight 7.1 kg (15.7 lb)
