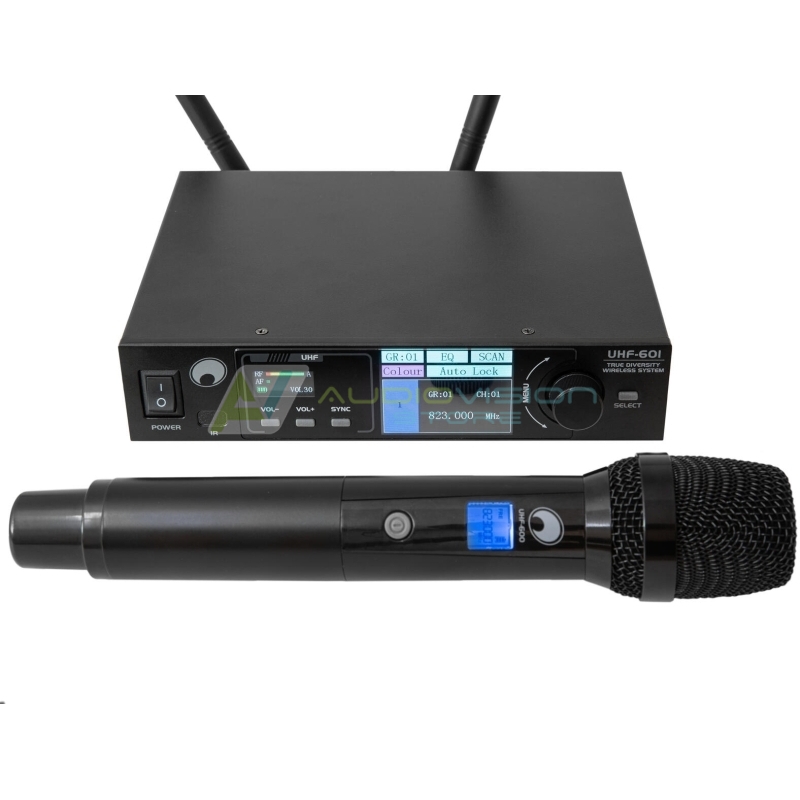

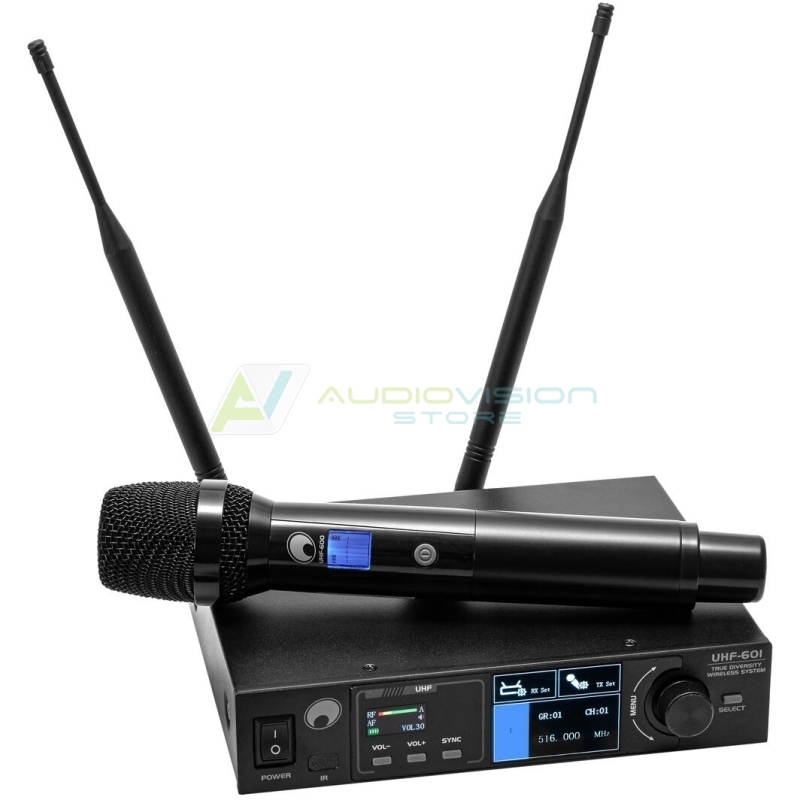

True diversity wireless system with auto scan, 7-band EQ and TFT color displays
- Multifrequency wireless receiver with high-quality true diversity reception
- Ideal for large multi-channel systems
- Up to 24 transmitters in 2 bands can be operated in parallel without interference
- Operating range up to 60m with line-of-sight

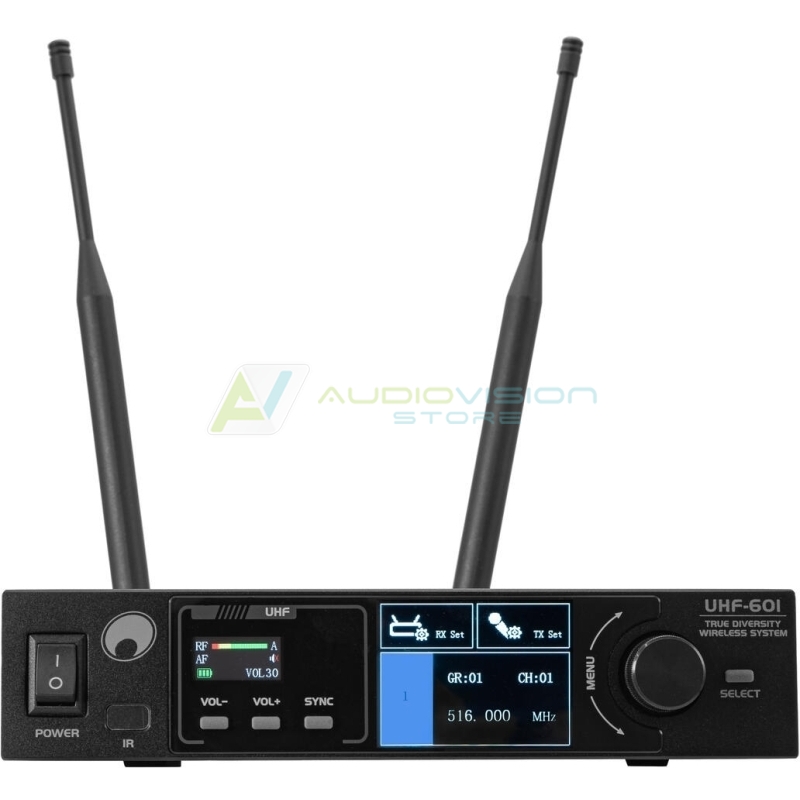

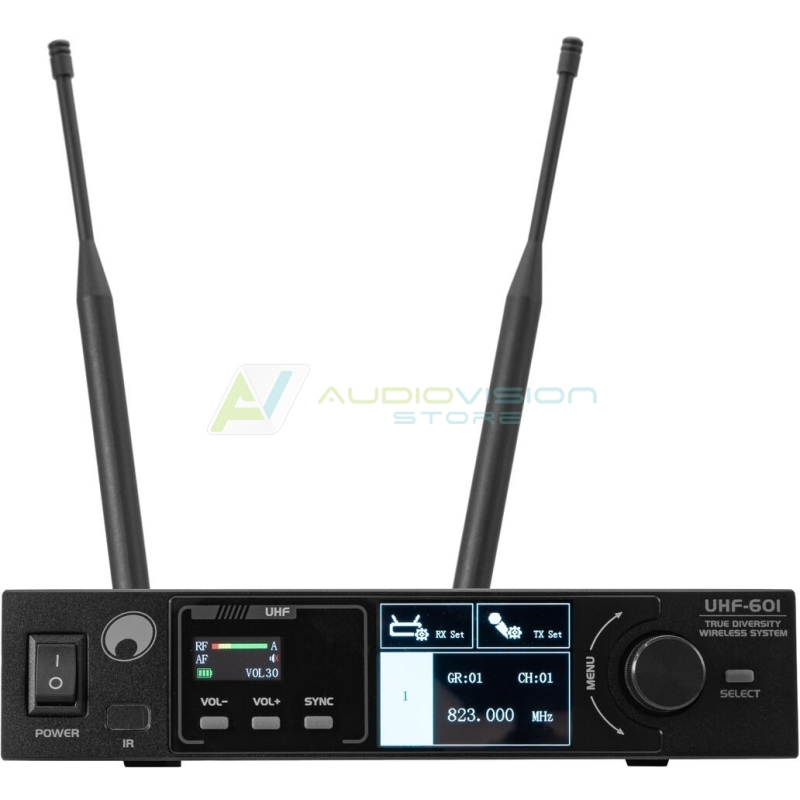

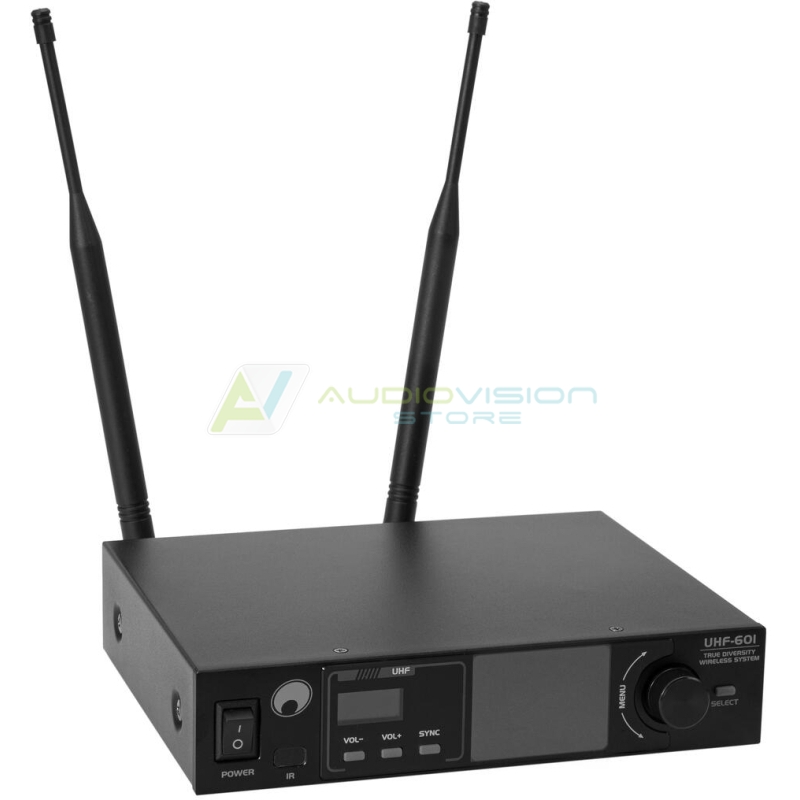

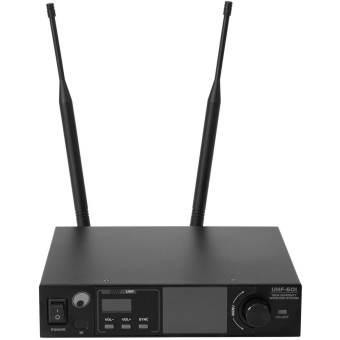

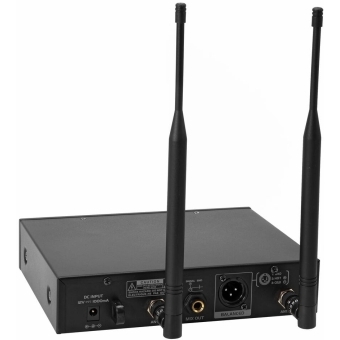

receiver
- Automatic frequency setup
- Ultra-low latency
- ID transmitter verification prevents incorrect use and interference from external radio transmitters
- Different user colors selectable for easy differentiation
- 7-band equalizer for sound tuning
- Lock function for prevents undesired changes to settings
- Multifunctional jogdial for menu settings
- Multicolor TFT display
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U

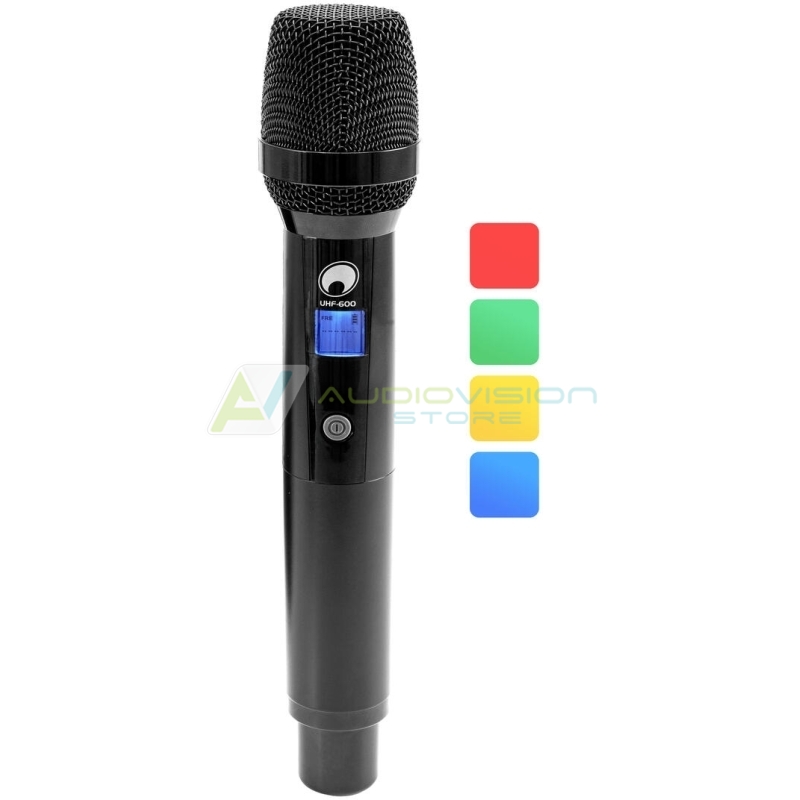

microphone
- Polar pattern: Cardioid
- Multicolor LCD display
- Charge status indicator

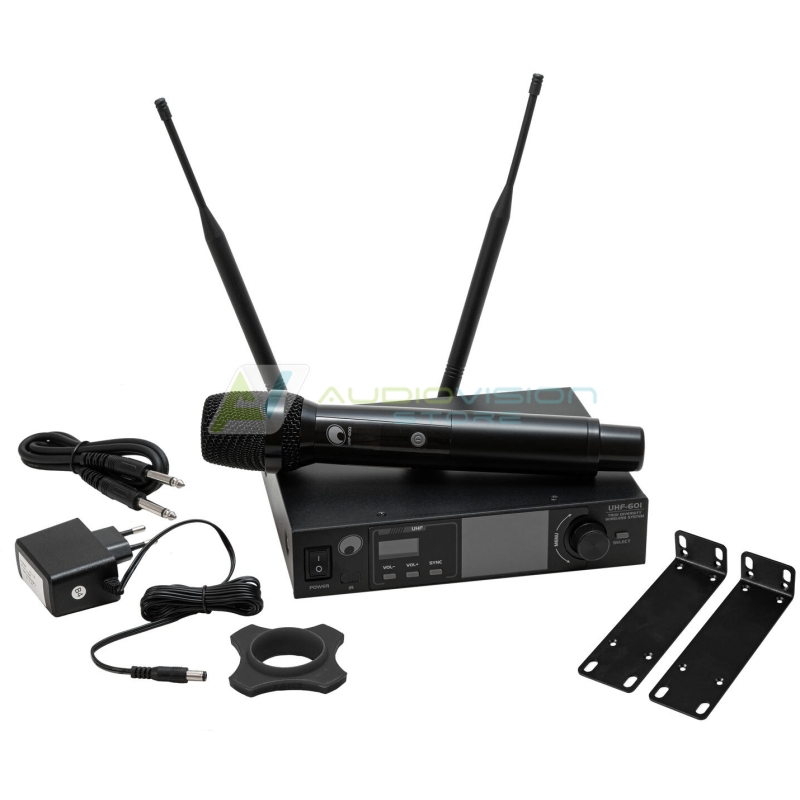

Package contents

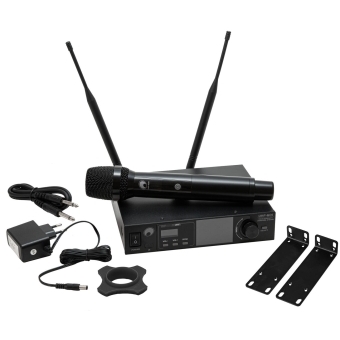

- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 1 x microphone, 1 x holder
| Type: | Wireless set |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 522 - 554 MHz |
| Switching bandwidth: | 34 MHz |
| Parallel mode: | Max. 24 transmitter in 2 bands |
| Frequency selection: | Frequencies automatically scannable |
| Weight: | 1,50 kg |
| Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: | 6 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included |
| Number of channels: | 1 |
| Frequency range: | 50 - 16000 Hz |
| S/N ratio: | >80 dB |
| THD: | |
