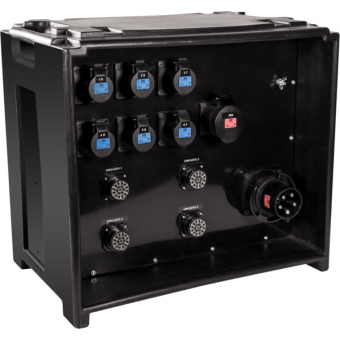

Power distribution box, 63A 5p input plug
Features:Structure:
IP 54 shock resistant, robust and mobile insulated thermoplastic box with stackable shape
IP 55 hinged windows to protect switches and instruments
Box dimensions (WxHxD): 60x40x54 cm
Input:
63A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 913315)
Output:
32A-5p (3P+N+E) panel mount CEE socket with slim flange, 400V 50/60Hz IP44, 1pc (code 912425)
16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 6pcs (code 911413)
Panel mount multipin sockets 19P IP67 Socapex, 4pcs (code 916141)
Protection:
4P magneto-thermic switch, 4 modules, 63A curve C 6kA, 1pc (code 923121)
Residual current circuit breaker overcurrent protection, 4P, 4 mod, 40A tipe A, 30mA, 5pcs cod.(923322)
Residual current circuit breaker w overcurrent protection, 4P, 4 mod,32A, curve C 6kA tipe A,30mA, 1pc
Magneto-thermic switch 1P+N, 1 module, 16A curve C 6kA, 30pcs (code 921111)
Tools:
4P fuser block, 4 modules, 1pc (code 927114)
Digital multimeter, 3 voltmeters (35-480), 3 ammeters (5-8000A), timer, 4 modules, 1pcs (code 927531)
