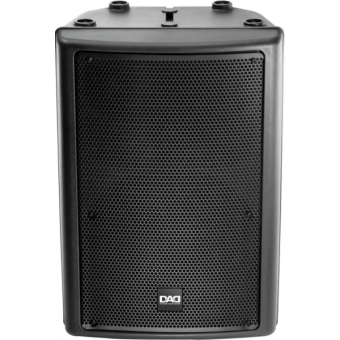

Active loudspeaker, AB-class bi-amp, 2-way 330 W+70 W, 124dB SPL
Features:Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 50-18000 Hz (±3dB)
Reproduction of voice and music for live and recorded performances
Polypropylene enclosure, designed for stage-monitor application
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
LOUDSPEAKERSystem type:
active 2 way
COMPONENTSLow frequency:
12
''
woofer/3''v.c.
High frequency:
1
''
driver/1.7''v.c.
FEATURESBuilt-in amp LF/HF:
330+70
W
/4/8Ohm
SPL max:
128
dB
@1m (free field)
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
122/128
dB
@1m (free field)
Frequency response:
50-18000
Hz
(±3dB)
Coverage angle HxV:
80x60
°
Cross over frequency:
2200
Hz
ELECTRONICSAmplifier:
AB class
Power:
330+70
W
/4/8Ohm
Input sensitivity:
-2 dBu (0,6Vrms) adjustable
Protection:
limiter temp.
User controls:
mic, line, master, eq LF-HF
Processor:
analog
Operating voltage/frequency:
100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT, jack 6.35 mm
Power connection:
VDE
PHYSICALDimensions (WxHxD):
416x615x356
mm
Weight:
25.5
kg
