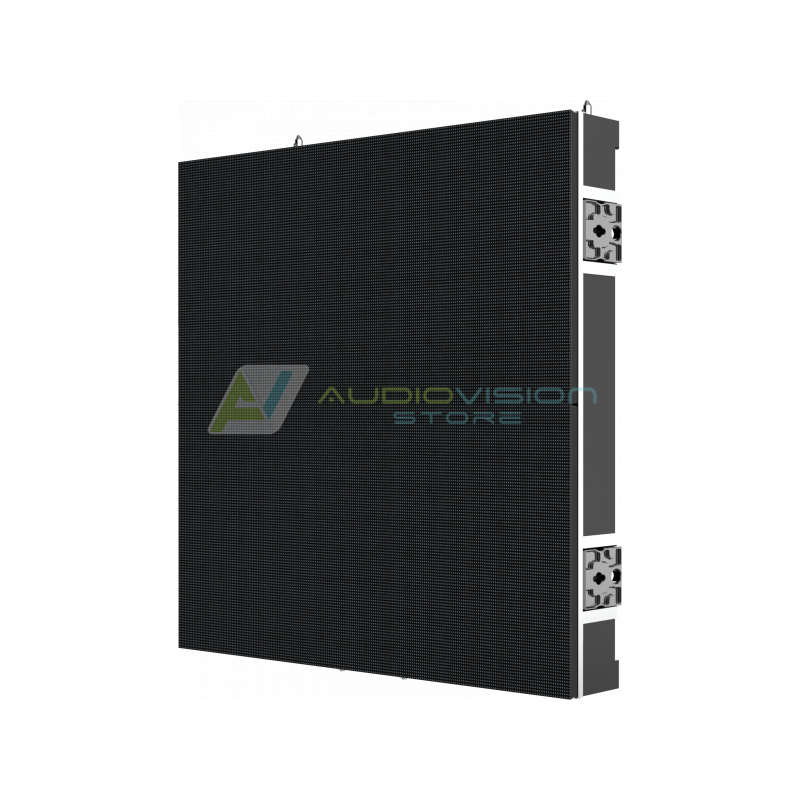

OMEGAX39C45RT - 45° R outdoor LED mod, SMD1921 BB, p.3,9mm, 50x50cm, 128x128pix, 5.000 nit, 9 kg

OMEGAX39C45RT - 45° R outdoor LED mod, SMD1921 BB, p.3,9mm, 50x50cm, 128x128pix, 5.000 nit, 9 kg
10122.27 Lei
*pretul include TVA
La comanda
Prolights
cod produs: OMEGAX39C45RT
Descrierea Produsului

Seamless 90° corners through special 45° cutter cabinets.

Features:
Curve configurations both concave and convex through curving mounting plates:
• 0-10° concave (10° - 5° - 2°)
• 0-5° convex (5° - 2°)

VIDEO
  • Driver chip type:
    MBI 5151
  • LED source:
    Nationstar SMD1921 black frame
  • Pixel pitch:
    3,9
    mm
  • Panel resolution:
    128x128
    pixels
  • Module resolution:
    64x64
    pixels
  • Luminous flux:
    5.000
    nit
  • Contrast:
    3.000:1
  • Grayscale:
    18 bit
  • Refresh rate ≥:
    3.840
    Hz
  • Drive Mode:
    1/8 scan, constan current
  • Vertical viewing angle:
    120
    °
  • Horizontal viewing angle:
    120
    °
  • LED density:
    65.536
    LED/sqm
  • Dead Pixel Ratio:
    <0,002
  • LED avg life span:
    100.000
ELECTRICAL
  • Power input/output:
    Seetronic TRUE powerCON
  • Power supply:
    AC 110/230 V 50/60 Hz
  • Max power consumption (panel):
    210
    W
  • Avg power consumption (panel):
    60
    W
  • Max power consumption (sqm):
    840
    W
  • Avg power consumption (sqm):
    240
    W
  • Standby power consumption (pannello):
    16
    W
  • Max rated current/panel::
    AC 220 V / 0,91 A
  • Working temperature:
    -20°C / +50
    °C
  • Working humidity:
    10~90 RH
    %
CONTROL
  • Receiving card type:
    A8S
  • Other controllers type:
    rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol:
    Novastar
  • Signal input:
    waterproof Seetronic RJ45
  • Signal output:
    waterproof Seetronic RJ45
MECHANICS
  • Magnetic LED modules:
    not available
  • Other specifics:
    curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
  • Module size (WxH):
    250x250
    mm
  • Panel size(WxHxD):
    500×500×90,6
    mm
  • Vertical hanging system:
    built-in aliscaf clamp support
  • Cooling:
    natural cooling of the peculiar chassis and to absence of fans
  • Connection:
    seamless locking system
  • Curvability:
    concave 2°, 5°, 10° - convex 2°, 5
    °
  • Body:
    die-cast aluminium housing
  • Color:
    black
  • IP rating:
    IP65 (front and rear)
  • Panel weight:
    9
    kg
  • Weight per square meter:
    36
    kg
  • Hanging Panel Quantity ≤:
    20
  • Compliant Standard:
    CE, EMC, UL
