de la in 60 de rate fixe.Enjoy the easy of specification with smart locking system
With Neutrik Alphenol Quality and IP 67 Waterproof property, provide seamless screen
With Neutrik Alphenol Quality and IP 67 Waterproof property, provide continuous and reliable energy
Pin to top and side channels through, especially the lower pixel display, live image quality without junction lines.

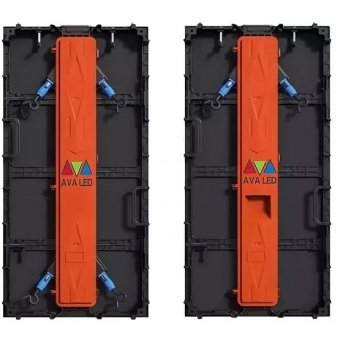

| MODEL NAME | TK-IR 2,97 |
| Pixel Pitch | 2,97mm |
| Pixel Configuration | SMD 2020 |
| LED | SPACE BLACK |
| Pixel Density / m2 | 112,896 |
| Module Size (mm) | 250 x 250 |
| Cabinet Size (mm) | 500 x 1000 x 74 |
| Cabinet Size (mm) '' OPTIONAL '' | 500 x 500 x 74 |
| Module Per Panel | 8/4 MODULE |
| Module Resolution | 84 x 84 |
| Resolution/SQM | 336 x 336 |
| Weight Per Panel | 12 kg./7 kg. |
| Processing | 16 Bit |
| Colors | 281 Trilyon |
| POWRer Consumption (w/sqm) | 450W - 750W |
| Driving Method | 1/28 |
| Brightness | >900 Nits |
| Refresh Rate | >1920-3840Hz |
| Min. Viewing Distance | 2m |
| CURVE / FLAT | |
| Cabinet Material | Die-Casting Aliminum |
| Horizontal Viewing Angle | 140 (±30) |
| Vertical Viewing Angle | 140 (±30) |
| Expected LED Lifetime | 100,000 Hours |
| IP Rating | IP65 / IP32 |
