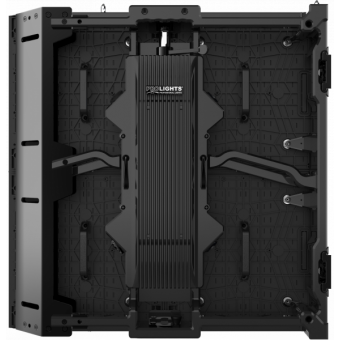

Seamless 90° corners through special 45° cutter cabinets.
Features:Curve configurations both concave and convex through curving mounting plates:
• 0-10° concave (10° - 5° - 2°)
• 0-5° convex (5° - 2°)
VIDEODriver chip type:
MBI 5151
LED source:
Nationstar SMD1921 black frame
Pixel pitch:
3,9
mm
Panel resolution:
128x128
pixels
Module resolution:
64x64
pixels
Luminous flux:
5.000
nit
Contrast:
3.000:1
Grayscale:
18 bit
Refresh rate ≥:
3.840
Hz
Drive Mode:
1/8 scan, constan current
Vertical viewing angle:
120
°
Horizontal viewing angle:
120
°
LED density:
65.536
LED/sqm
Dead Pixel Ratio:
<0,002
LED avg life span:
100.000
ELECTRICAL Power input/output:
Seetronic TRUE powerCON
Power supply:
AC 110/230 V 50/60 Hz
Max power consumption (panel):
210
W
Avg power consumption (panel):
60
W
Max power consumption (sqm):
840
W
Avg power consumption (sqm):
240
W
Standby power consumption (pannello):
16
W
Max rated current/panel::
AC 220 V / 0,91 A
Working temperature:
-20°C / +50
°C
Working humidity:
10~90 RH
%
CONTROLReceiving card type:
A8S
Other controllers type:
rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol:
Novastar
Signal input:
waterproof Seetronic RJ45
Signal output:
waterproof Seetronic RJ45
MECHANICSMagnetic LED modules:
not available
Other specifics:
curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Module size (WxH):
250x250
mm
Panel size(WxHxD):
500×500×90,6
mm
Vertical hanging system:
built-in aliscaf clamp support
Cooling:
natural cooling of the peculiar chassis and to absence of fans
Connection:
seamless locking system
Curvability:
concave 2°, 5°, 10° - convex 2°, 5
°
Body:
die-cast aluminium housing
Color:
black
IP rating:
IP65 (front and rear)
Panel weight:
9
kg
Weight per square meter:
36
kg
Hanging Panel Quantity ≤:
20
Compliant Standard:
CE, EMC, UL
