LD Systems U518 BPH 2 - Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset

LD Systems U518 BPH 2 - Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset
3436.40 Lei
2405.48 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDU518BPH2
Descrierea Produsului





The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

  • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
  • U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
  • U518 // 1785 – 1800 MHz // four systems can be used simultaneousl
  • True diversity UHF wireless system
  • Shock-mounted dynamic and condenser microphone capsules
  • Automatic channel scan
  • Easy one-touch infrared frequency syncing
  • Pilot tone squelch circuit prevents noise
  • Switchable RF transmitter output (2, 10 or 30 mW)
  • Rugged enclosures
  • High-contrast OLED display
Product typeWireless Microphone Systems
TypeHeadsets
Transmission frequency range1785 - 1800 MHz
Weight5,218 kg

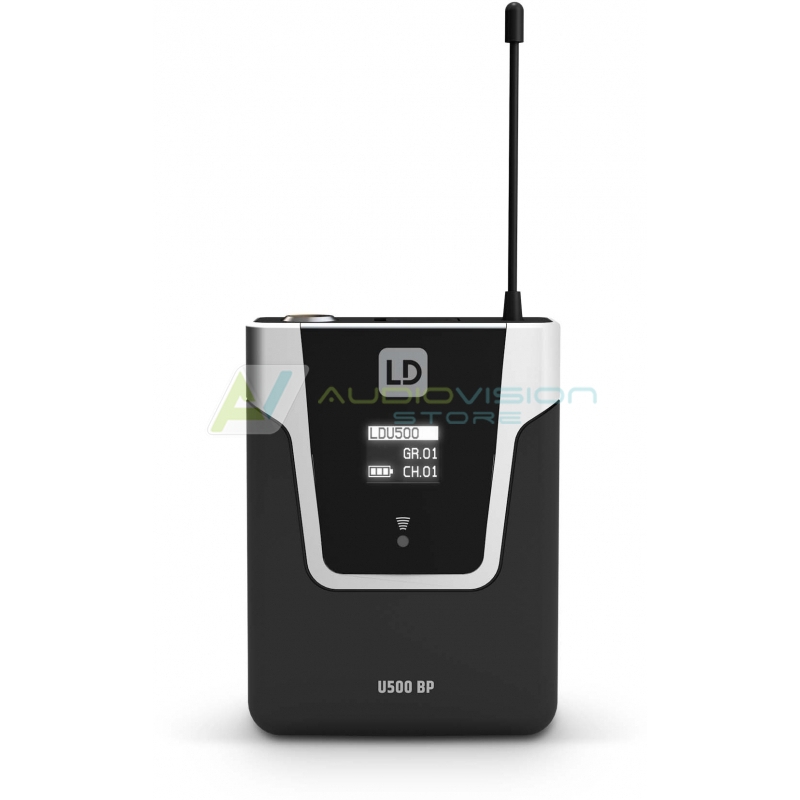

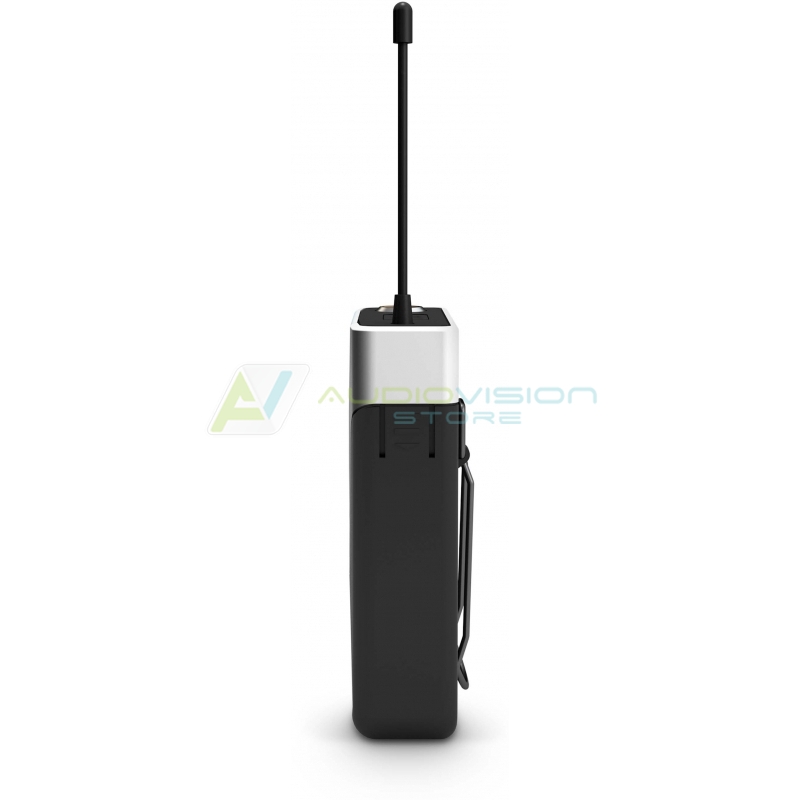

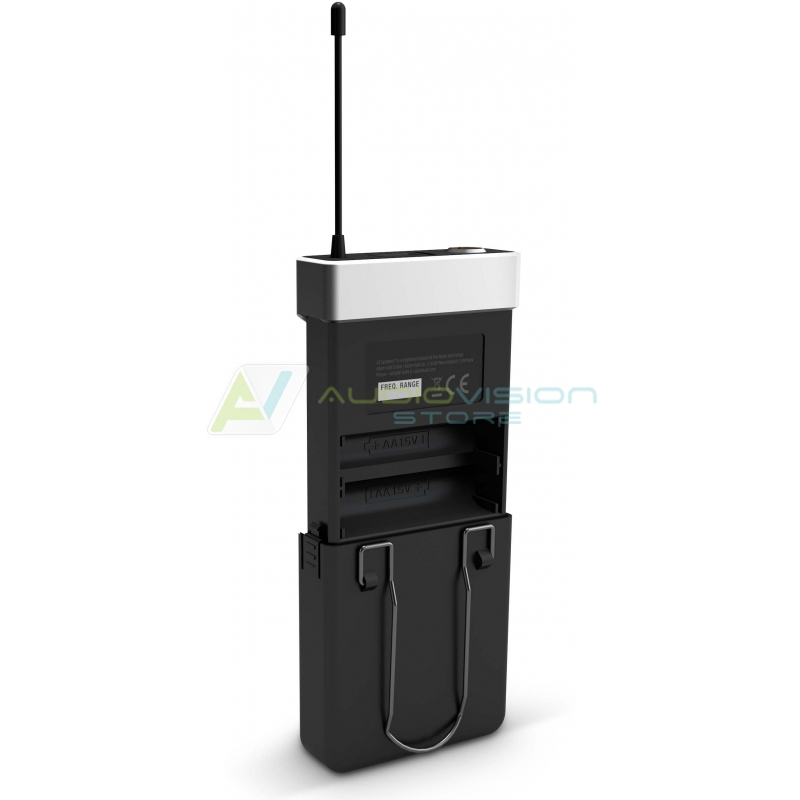

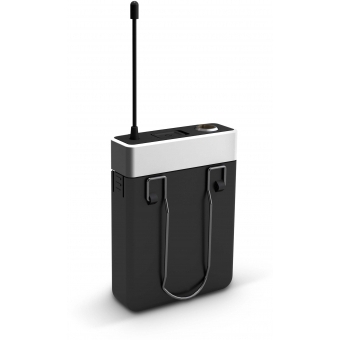

LDU518BP - U518 BP

Product typeWireless Microphone System Accessories
TypeBelt Packs
Transmission frequency range1785 - 1800 MHz
Channels96 (8 groups of 12 channels)
Groups8
InputsMini-XLR (3-pin)
Frequency response30 - 16000 Hz
Signal-to-noise ratio>90 dB
Rated HF output powerVariable (2mW, 10mW, 30mW)
Controlsarrow keys (up/down value entry), Power On/Off, select
IndicatorsOLED Display
Operating voltage2 x AA battery
Operating time>10 h (with alkaline batteries)
Width65 mm
Height86 mm
Depth23 mm
Weight0,09 kg
Other featuresdetachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power, Wireless Microphone System Accessories

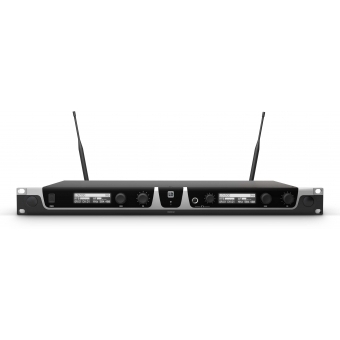

LDU518R2 - U518 R2

Product typeWireless Microphone System Accessories
TypeReceivers
Modulation TypeFM
Transmission frequency range1785 - 1800 MHz
Channels96 (8 groups of 12 channels)
Groups8
Antenna inputs2
Antenna connectorBNC
Frequency response30 - 16000 Hz
Noise reductionSquelch
Total Harmonic Distortion (THD)< 0.1 %
Signal-to-noise ratio> 100 dB
Audio output, balanced2 x XLR
Audio output, unbalanced2 x 6.3 mm TS
Audio mix output, balancedXLR
Audio mix output, unbalanced2 x 6.3 mm TS
Max. output level+20 dBu (balanced) dBu
Headphones ouput1
Headphones outputs6.3 mm TRS
Controls2 x volume, Down, Power On/Off, Up
Indicators2 x OLED Display
Width483 mm
Height45 mm
Depth5.2 mm
Weight2,05 kg
Accessories (included)2 x antenna, Batteries, Power supply
Other featureschannel search function, IR frequency synchronisation

LDWS100MH1 - WS 100 MH 1

Product typeWireless Microphone System Accessories
TypeHeadsets
Frequency response20 - 20.000 Hz
DirectivityCardioid
Nominal impedance680 Ohm(s)
Phantom power requierements5 V
Microphone inputMini-XLR (3-pin, female)
Accessories (included)Foam windscreen
Weight0,049 kg
