LD Systems U308 BPH 2 - Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset - 863 - 865 MHz + 823 - 832 MHz

LD Systems U308 BPH 2 - Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset - 863 - 865 MHz + 823 - 832 MHz
2405.95 Lei
1684.17 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDU308BPH2
Descrierea Produsului

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

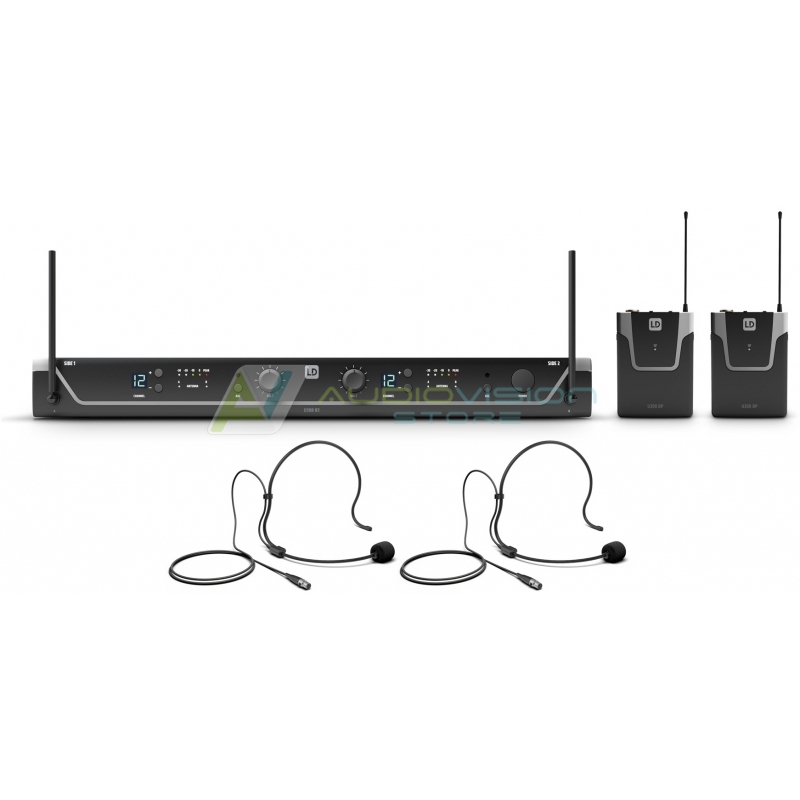

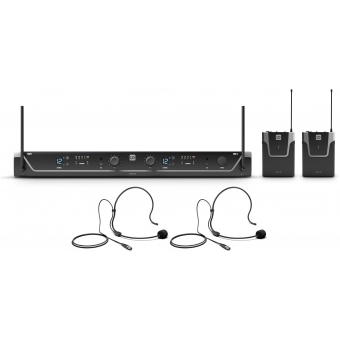

The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.

  • UHF diversity wireless system with FM technology
  • 12 selectable channels
  • 100 metre range under ideal conditions
  • Up to 6 systems can be used simultaneously
  • ASC infrared synchronisation between transmitter and receiver
  • Squelch with pilot tone
  • 10-hour transmitter operating time with two AA batteries
  • Receiver in sturdy metal housing
  • Rack mounting kit included
Product typeWireless Microphone Systems
TypeSet
Transmission frequency range823 - 832 MHz, 863 - 865 MHz
Weight1,35 kg

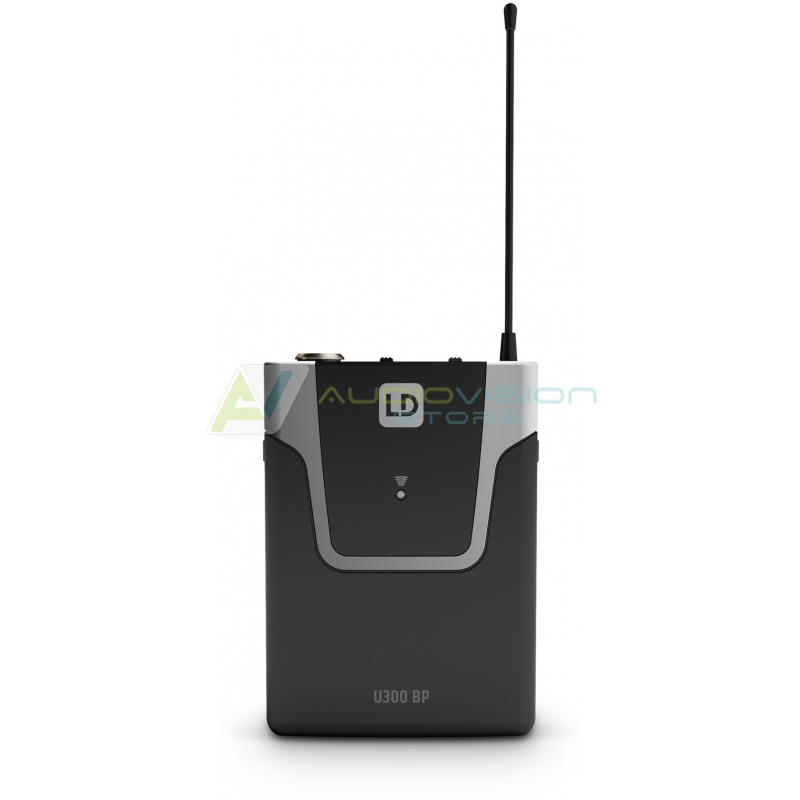

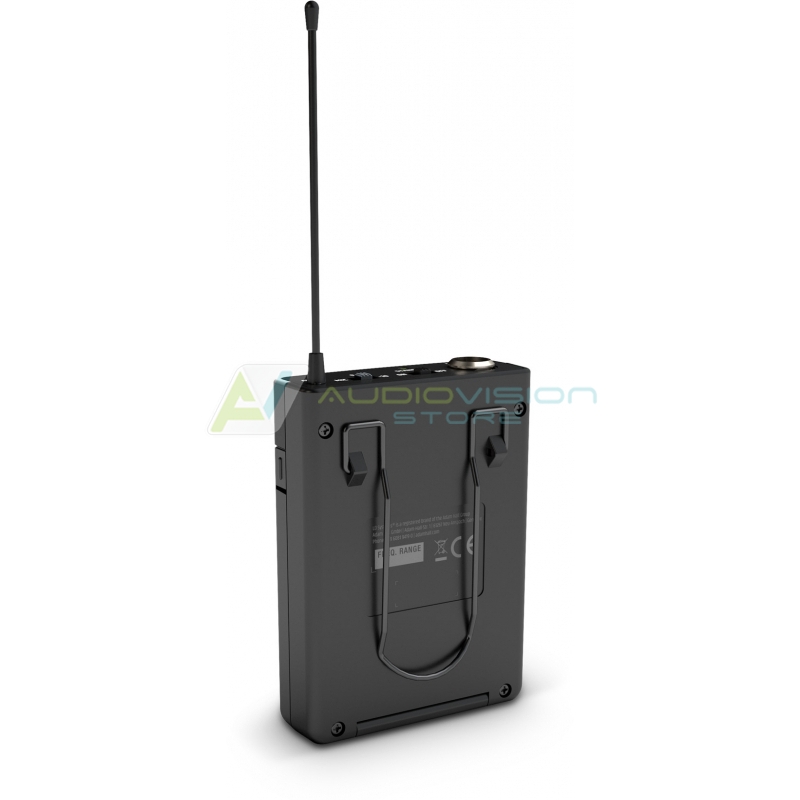

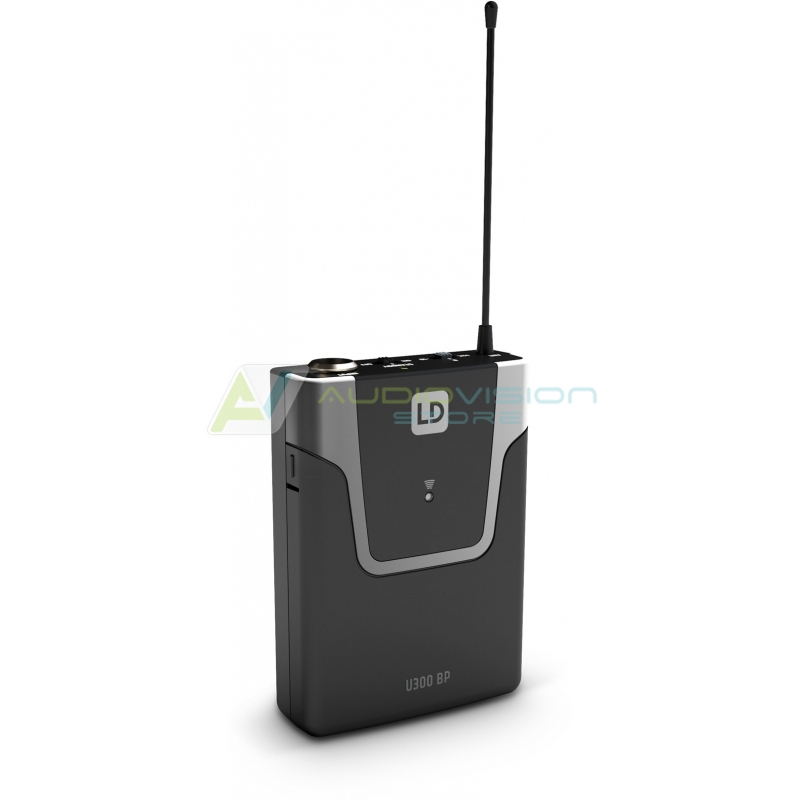

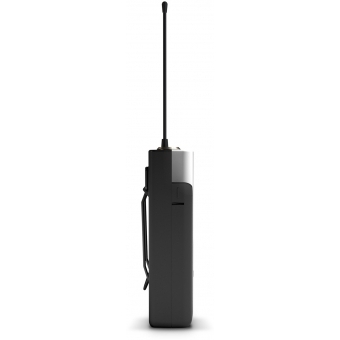

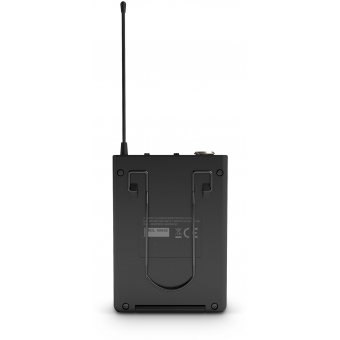

LDU308BP - U308 BP

Product typeWireless Microphone System Accessories
TypeBodypack
Transmission frequency range823 - 832 MHz, 863 - 865 MHz
Channels12
Groups1
InputsMini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response25 - 16,000 Hz
Signal-to-noise ratio104 dB
Rated HF output power10 mW

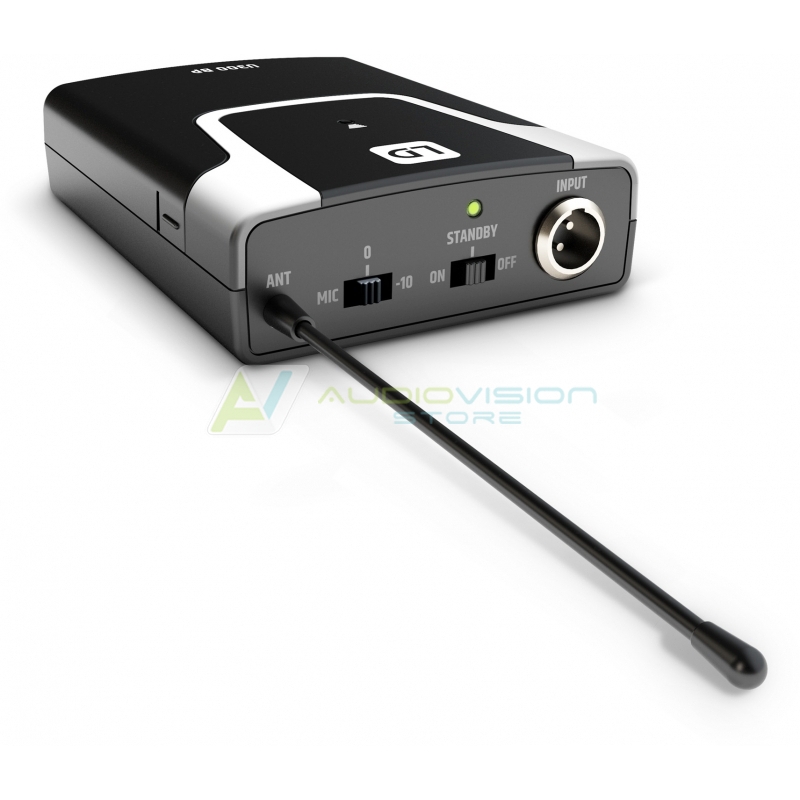

ControlsGain (3-way switch), Power On/Off
IndicatorsASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)

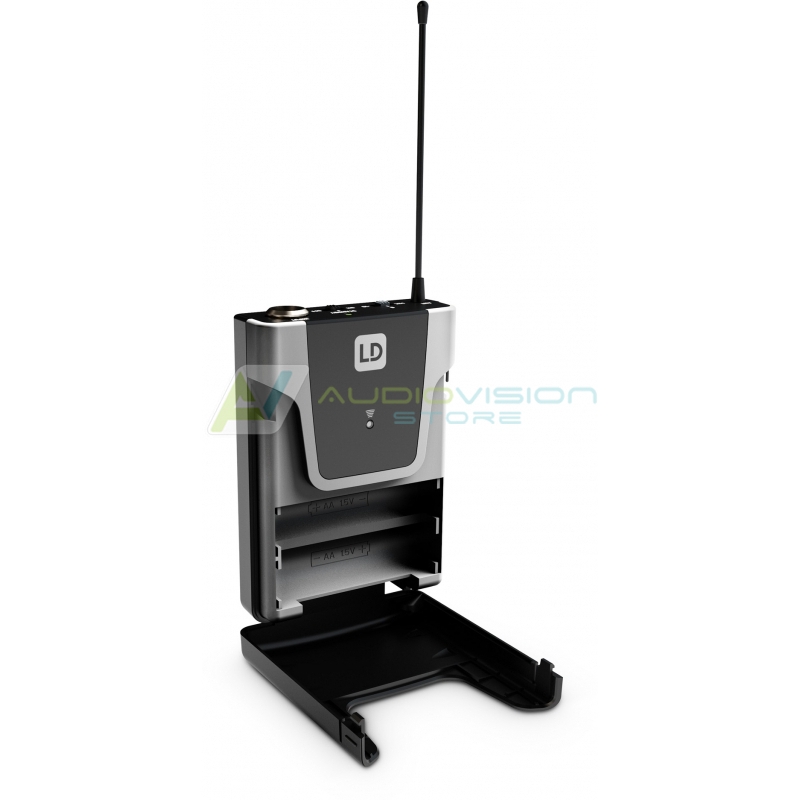

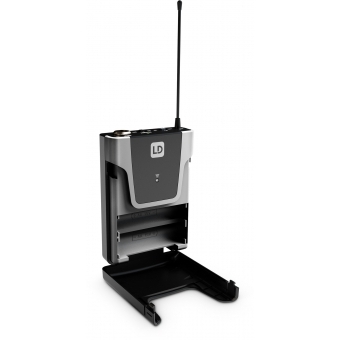

Operating voltage2 x AA batteries
Operating time>10 h
Width65 mm
Height91 mm
Depth25 mm
Weight0,085 kg
Other featuresBelt clip, IR frequency synchronisation, Pilot tone

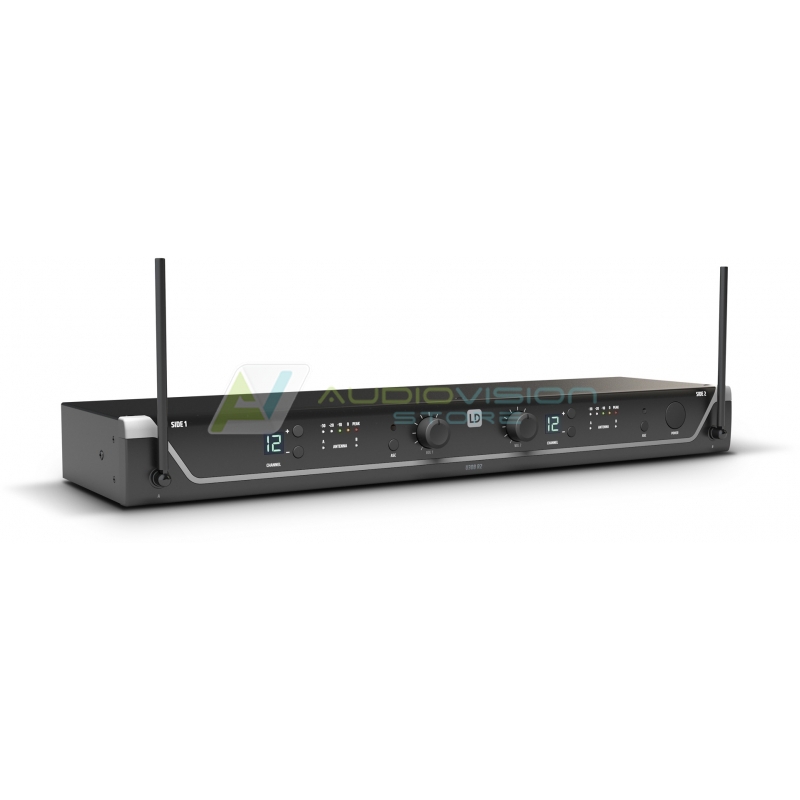

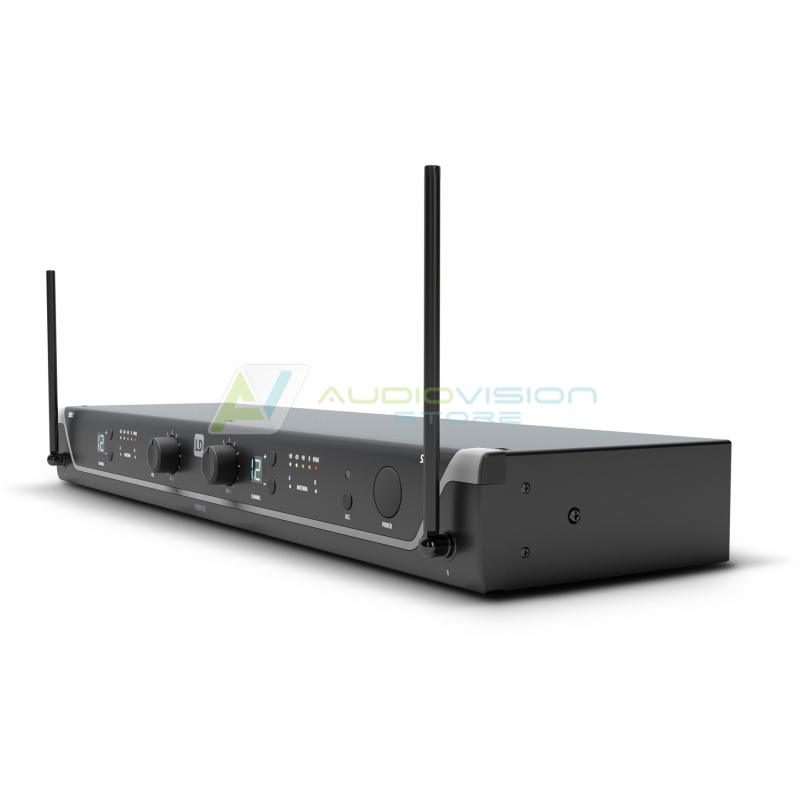

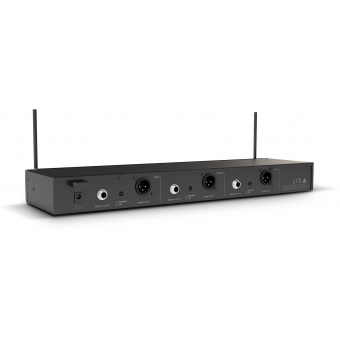

LDU308R2 - U308 R2

Product typeWireless Microphone System Accessories
TypeReceivers
Modulation TypeFM
Transmission frequency range823 - 832 MHz, 863 - 865 MHz
Channels12
Groups1
Antenna inputs2 x fixed
Frequency response35 - 16000 Hz
Noise reductionSquelch
Transmission optimizationPilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio104 dB
Audio output, balanced3 x XLR
Audio output, unbalanced6.3 mm jack, switchable unbalanced output level ( Line/Instrument )
Audio mix output, balancedXLR
Audio mix output, unbalanced6.3 mm jack
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off
Indicators5-LED VU-Meter, Antenna A/B, LCD display
Operating voltage12 V DC, 500 mA
Width410 mm
Height43 mm
Depth120 mm
Weight1,265 kg
Accessories (included)2 x AA batteries, Power supply, Rack kit
Other featuresIR frequency synchronisation, Pilot tone

LDWS100MH1 - WS 100 MH 1

Product typeWireless Microphone System Accessories
TypeHeadsets
Frequency response20 - 20.000 Hz
DirectivityCardioid
Nominal impedance680 Ohm(s)
Phantom power requierements5 V
Microphone inputMini-XLR (3-pin, female)
Accessories (included)Foam windscreen
Weight0,049 kg
