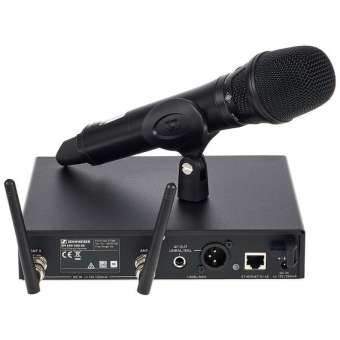

Sennheiser Neumann EW 500 G4-KK205

Sennheiser
cod produs: EW 500 G4-KK205
La comanda
7466.10 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together.
The super-cardioid condenser capsule KK 205 offers true Neumann sound, combined
with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance.
ew 500 G4 is highly flexible. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

Overview

The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The KK 205 is a premium quality capsule head for professional Sennheiser handheld transmitters, now available with the evolution wireless G4 500 Series.


Features

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations


What's in the box?

  • EM 300-500 G4 rackmount receiver

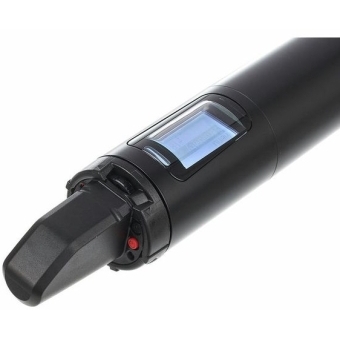

  • SKM 500 G4 handheld transmitter
  • KK 205 super-cardioid condenser capsule
  • NT 2-3 power supply
  • GA3 rack kit set
  • Microphone clamp

Technical Data

EM 300-500 G4

  • Dimensions
    Approx. 202 x 212 x 43 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
    • Weight
      Approx. 980 g
    • Audio output
      6.3 mm jack socket (unbalanced): +12 dBu
      XLR socket (balanced): +18 dBu
    • Signal-to-noise ratio
      ≥ 115 dBA
    • Switching bandwidth
      up to 88 MHz
    • Peak deviation
      ±48 kHz
    • Nominal deviation
      ±24 kHz
    • Modulation
      Wideband FM
    • Power supply
      12 V DC
    • Current consumption
      350 mA
    • Adjacent channel rejection
      Typically ≥ 75 dB
    • Intermodulation attenuation
      Typically ≥ 70 dB
    • Receiving frequency
      Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    • RF sensitivity
      < 2.5 μV for 52 dBA eff S/N
    • Squelch
      5 to 25 dBμV in steps of 2 dB
    • Equalizer
      Preset 1: Flat
      Preset 2: Low Cut (-3 dB at 180 Hz)
      Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
      Preset 4: High Boost (+6 dB at 10 kHz)
    • Antenna Connector
      2 BNC sockets
    • Temperature Range
      -10 °C to +55 °C
    • Receiver Principle
      True diversity
    • Blocking
      ≥ 75 dB

SKM 500 G4

  • Dimensions
    Approx. Ø 50 x 265 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
    • Weight
      (incl. batteries) approx. 450 g
    • Signal-to-noise ratio
      ≥ 115 dBA
    • RF output power
      switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    • Switching bandwidth
      up to 88 MHz
    • Peak deviation
      ±48 kHz
    • Nominal deviation
      ±24 kHz
    • Operating time
      Typically 8 h
    • Modulation
      Wideband FM
    • Power supply
      2 AA batteries, 1.5 V or BA 2015 accupack
    • Current consumption
      at nominal voltage: typ. 180 mA
      with transmitter switched off: ≤ 25 µA
    • Powering
      3 V battery / 2.4 V rechargeable battery
    • Transmission frequency
      Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    • AF frequency response
      80 – 18,000 Hz
    • Temperature Range
      -10 °C to +55 °C
    • Frequency stability
      ≤ ±15 ppm

KK 205

  • Max. sound pressure level
    150 dB
  • Pick-up pattern
    supercardioid
  • Signal-to-noise ratio
    70 dB
    • Sensitivity
      2.8 mV/Pa
