LD Systems SAT 82 A G2 W - 8" Active Installation Monitor white

LD Systems SAT 82 A G2 W - 8" Active Installation Monitor white
Pret la cerere
La comanda
LD Systems
cod produs: LDSAT82AG2W
Descrierea Produsului

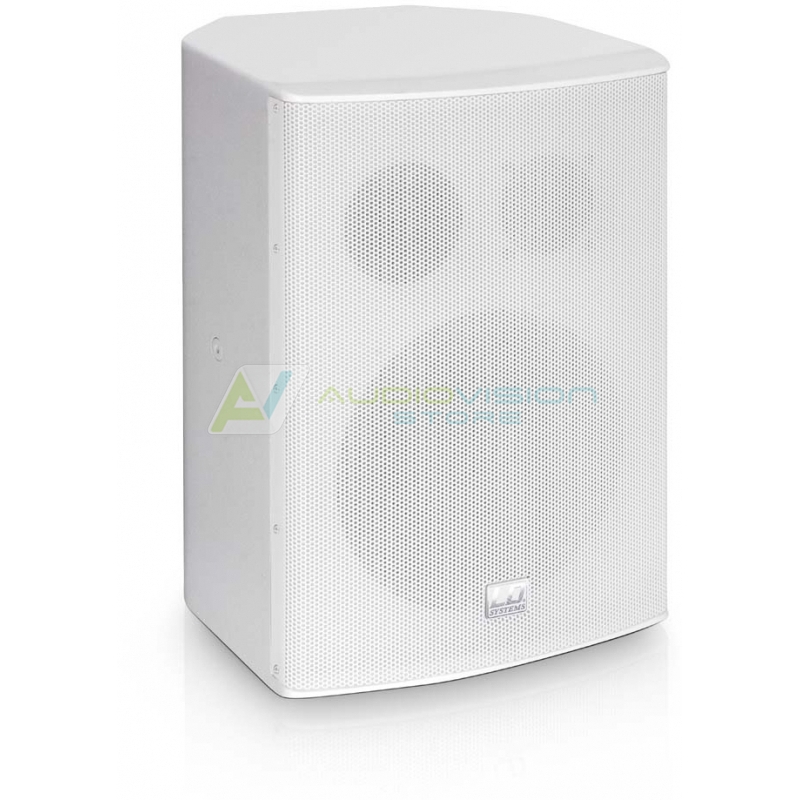

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.

  • Compact active 2-way installation monitor
  • Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
  • 8" custom-made woofers
  • 1" high frequency driver with a 60° x 60° dispersion angle
  • Integrated Class AB power amplifier with 80 watts (RMS)
  • Switchable automatic power save mode
  • Mounting bracket and M6 fixing points for a wide variety of installation possibilities
Product typeInstallation Loudspeakers
TypeWall-mounted Loudspeaker
Low/mid driver dimensions8 "
Woofer size203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
HF driver dimensions1 "
HF Driver Size25 mm
HF driver magnetFerrite
HF driver brandCustom-made
Power amplifier (Class A)Class A/B
Dispersion (H x V)60° x 60 °
Frequency response50 - 20000 Hz
Max. SPL114 dB
Protection circuitsHF Driver, over voltage
Controlsmains switch (on/off), volume
Indicatorsoverload, Power
Line input connectors6.3 mm jack, XLR
Line output connectorsXLR
Operating voltagetransformer, 220 V AC - 240 V AC, 50-60 Hz
Cabinet material12 mm MDF
Cabinet surfacetexture paint
Cabinet colourBlack
Cabinet constructionBass Reflex
Width274 mm
Height410 mm
Depth243 mm
Weight8,5 kg
Accessories (included)wall bracket
