LD Systems MON 12 A G3 - 12" powered coaxial stage monitor

LD Systems MON 12 A G3 - 12" powered coaxial stage monitor
3254.76 Lei (-15%)
2766.55 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDMON12AG3
Descrierea Produsului


The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

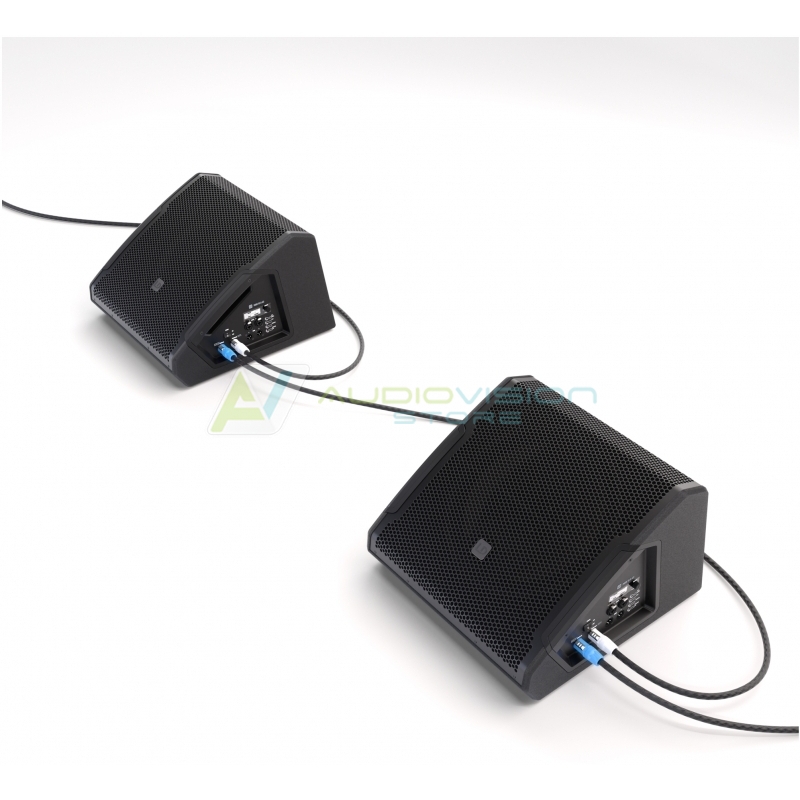

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
  • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
  • 12" woofer with 2.5" voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection

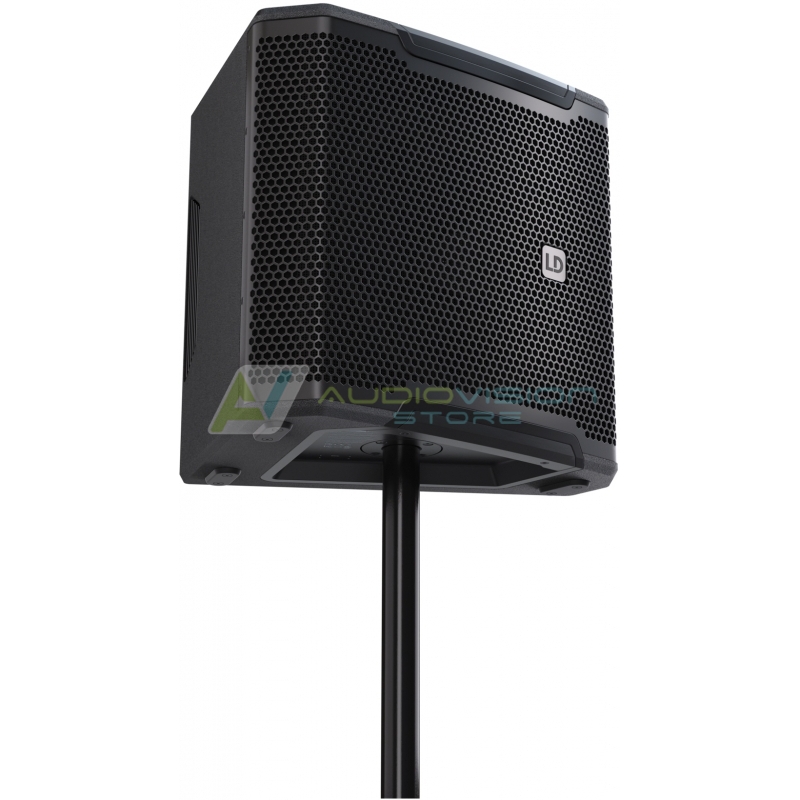

  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grille
Product typeStage monitors
TypePowered
ColorBlack
System output (RMS)300 W
System output (Peak)1200 W
Max. SPL Average (Sine burst)120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB)68 - 18000 HZ
Frequency response (-10 dB)55 - 20000 Hz
Crossover frequency1400 Hz
Monitor angle33°
Dispersion (H x V)50° x 90°
Width425 mm
Depth453 mm
Height315 mm
Features3-band EQ (High, Mid, Low)
FeaturesDelay line
FeaturesNotch filter
Weight17,4 kg

Low/mid woofer

Low/mid Woofer dimensions12 "
Woofer dimensions (mm)304.8 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer typeCoaxial loudspeaker
Woofer voice coil2.5 "
Woofer voice coil (mm)65 mm
Cabinet constructionBass Reflex
Cabinet material15 mm Birch Plywood
Cabinet material15 mm MDF

HF

HornCD Horn
Tweeter dimensions1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetFerrite
Tweeter brandCustom-made
Tweeter voice coil1.75 "
Tweeter voice coil (mm)44.45 mm

Amplifier module (integrated)

AmplifierClass D
Protection circuitsMultiband limiter
Protection circuitsover voltage
Protection circuitsover-current
Protection circuitsthermal overload
Operating Temperature0 - 40 °C
Humidity Range< 80 % ( non-condensing )
FuseT4AL 250 V
ControlsOn / off switch
ControlsRotary/push encoder
IndicatorsLC display
Operating voltageSMPS
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption150 W
Power in / outPowerCON compatible
Line inputs2
Line input connectors6.3 mm jack
Line input connectorsXLR - combo
Line thru2
Line through connectorXLR
