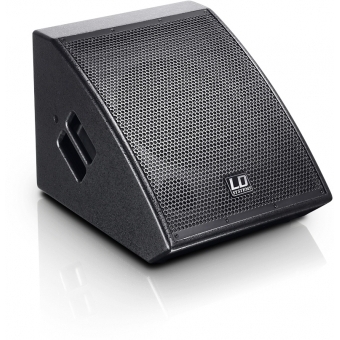

LD Systems MON 101 A G2 - 10" active Stage Monitor

LD Systems MON 101 A G2 - 10" active Stage Monitor
1761.78 Lei
1233.25 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDMON101AG2
Descrierea Produsului

LD Systems Stinger MON101AG2

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.

The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.

Product typePA loudspeaker
Low/mid driver dimensions10 "
Woofer size254 mm
Woofer typecoaxial loudspeaker
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HF driver dimensions1 "
HF Driver Size25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1 "
HF Driver Voice Coil25.4 mm
AmplifierClass A/B
Dispersion (H x V)75 x 75 °
RMS150 W
Peak power600 W
Frequency response90 - 20000 Hz
Crossover frequency3300 Hz
SPL (1W/1m)99 dB
Max. SPL (continuous)113 dB
Max. SPL (peak)121 dB
Protection circuitslimiter, short circuit
ControlsOn / Off, volume
IndicatorsLimit, Power, Signal
Line Inputs1
Line input connectors6.3 mm jack, XLR
Line Outputs1
Line output connectorsXLR
Operating voltagetransformer, 230 V AC / 50-60 Hz
Cabinet material15 mm Plywood
Cabinet constructionBass Reflex
Monitor angle35 °
Width380 mm
Depth335 mm
Height466 mm
Weight15,3 kg
Featuresergonomically shaped insert handles
