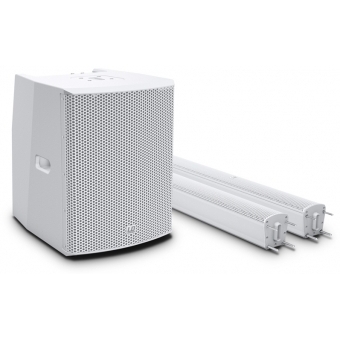

LD Systems MAUI 28 G2 W - Compact Column PA System with Mixer and Bluetooth white

LD Systems MAUI 28 G2 W - Compact Column PA System with Mixer and Bluetooth white
6570.67 Lei
4599.47 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDMAUI28G2W
Descrierea Produsului


A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

  • All-in-one column speaker for PA and monitor applications
  • 2,000 watts peak Class-D system power offers high performance with a low weight
  • Powerful bass reproduction with 2 x 8" woofers
  • Balanced mids thanks to the 16 x 3" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Increased range and wider coverage through the array arrangement
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
  • Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
  • Two-piece column for compact transport
  • Secure plug-and-play connection thanks to the wireless multi-pin mechanism
  • A wide range of application options through dismountable columns
  • Easy operation with presets for mono or stereo configuration
  • Extensive and smart accessories for installation and transport
Weight30,9 kg
Product typePA Complete Systems
Typeactive
Colorwhite
Max. SPL (peak)126 dB
Frequency response45 - 20000 Hz
Dispersion (H x V)120° x 20 °
Overall height2059 mm

Woofer characteristics

Low/mid driver dimensions2 x 8 "
Woofer size2 x 203 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
Cabinet constructionBass Reflex
Cabinet material15 mm Plywood
Cabinet surfacetexture paint
Subwoofer width370 mm
Subwoofer height484 mm
Subwoofer depth480 mm
Subwoofer weight19.7 kg

Mid/Hi System

Midrange size16 x 3 ", 16 x 76.2 mm
Midrange magnetFerrite
Midrange brandCustom-made
Midrange voice coil1 ", 25.4 mm
HornWaveguide
Tweeter dimensions2 x1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetNeodymium
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Loudspeaker inputs1
Speaker input connectionsCustom-made multipin
Cabinet construction mid/highClosed
Mid/Hi system cabinet materialAluminum
Mid/Hi system cabinet surfaceHD coating
Mid/Hi system width96 mm
Mid/Hi system height780 / 795 mm
Mid/Hi system depth104 mm
Mid/Hi system weight5.6 / 5.6 kg

Amplifier module (integrated in subwoofer)

AmplifierClass D
Amplifier output system (RMS)1000 W
Amplifier output system (peak)2000 W
Protection circuitsDC protection, Multiband limiter, short circuit, thermal overload
CoolingConvection
Operating Temperature0 - 40 °C
Humidity Range10% to 80%, (non-condensing)

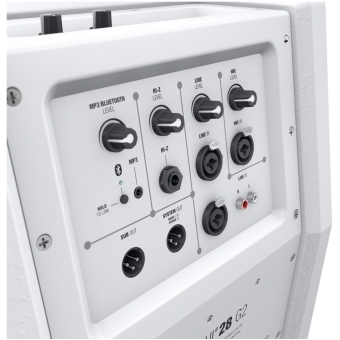

ControlsBluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
IndicatorsLimit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
Power connectorIEC power cable (included)
Operating voltage100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.0/11/600 W
Line inputs2 x stereo
Line input connectorsRCA, XLR/6.3 mm jack
Line outputs2 (1x System Out, 1x Sub Out)
Line output connectorsXLR
Mic inputs1, XLR/6.3 mm jack
MP3 inputs1
MP3 input connectors3.5 mm jack
Hi-Z inputs1
Hi-Z input connectors6.3 mm jack
Loudspeaker outputs1
Speaker output connectionsCustom-made multipin

DSP characteristics

Bit depth AD/DA converter24 bit
Internal sampling frequency48 kHz
Signal/noise ratio100 dB
