LD Systems MAUI® 5 GO 100 - Ultra-portable Battery-powered Column PA System - 3200 mAh Version

LD Systems MAUI® 5 GO 100 - Ultra-portable Battery-powered Column PA System  - 3200 mAh Version
4546.19 Lei (-15%)
3864.26 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDMAUI5GO100
Descrierea Produsului

Perfectly equipped throughout, the MAUI® 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power to 12 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

Its superlight weight of just 12.4 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. In addition, LD Systems' Quick-Swap-Technology® enables the immediate, problem-free replacement of the battery element and thus offers the possibility of extending the operating time of the MAUI® 5 GO 100 as desired.

  • Plug-and-play lithium ion battery for up to 12 hours continuous operation
  • Practically unlimited power supply thanks to Quick-Swap Technology®
  • Provides sound to over 100 people
  • Ultra-light, portable 4-piece design that weighs only 12.4 kg

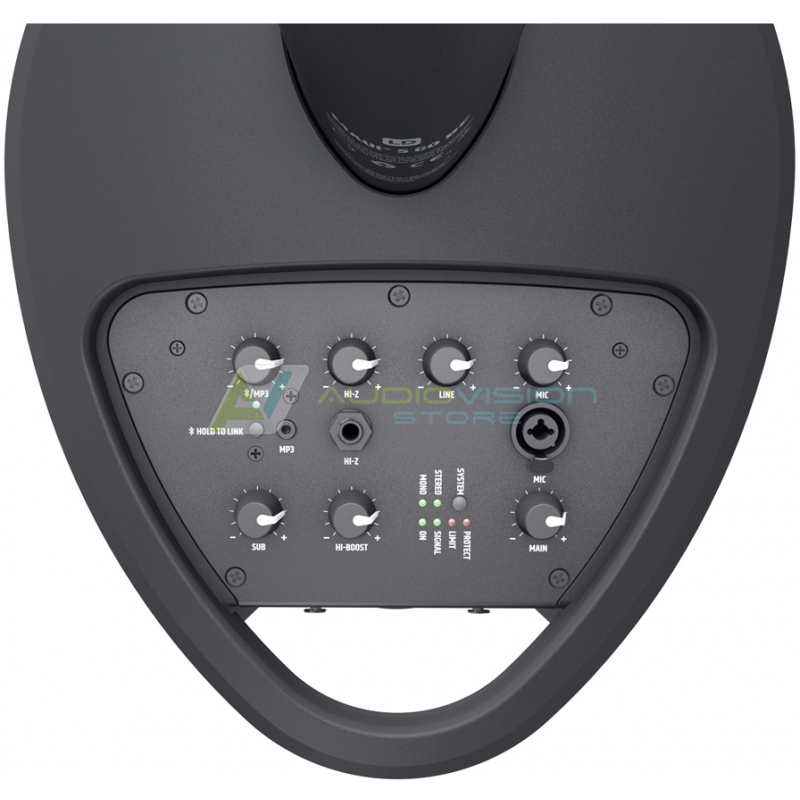

  • Integrated 4-channel mixer
  • Bluetooth® stereo audio streaming
  • All-in-one column speaker for PA and monitor applications
  • Increased range and broader coverage thanks to line-array design
Product typePA Complete Systems
Number of subwoofers1
Max. SPL (Peak)120 dB
Frequency response50 - 20000
Dispersion (H x V)120° x 20 °
Overall height1985 mm
Weight12,4 kg


Rechargeable batteries28,8V / 3200mAh
Battery manufacturerLG Chem
Battery technologyLithium-ion
Battery operation time at maximum load12 hours @ 98 dB (Lounge)
Battery operation time at maximum load4 hours at 120 dB (DJ mode)
Battery operation time at maximum load6 h @ 104 dB (Live music)
Charging time1.5 hours up to 80%
Charging time2 hours up to 100%

Woofer characteristics

Low/mid Woofer dimensions8 "
Woofer dimensions (mm)203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
Cabinet constructionBass Reflex
Cabinet materialABS plastic
Subwoofer width305 mm
Subwoofer height405 mm
Subwoofer depth395 mm
Subwoofer weight8.9 kg

Mid/Hi System

Midrange dimensions4 x 3 "
Midrange dimensions (mm)4 x 76.2 mm
Midrange magnetNeodymium
Midrange brandCustom-made
Midrange voice coil1 "
Midrange voice coil25.4 mm
Mid/Hi system impedance4 Ohm(s)
Loudspeaker inputs1
Speaker input connectionsCustom-made multipin
Cabinet construction mid/highClosed
Mid/Hi system cabinet materialABS plastic
Mid/Hi system width82 mm
Mid/Hi system height535 mm
Mid/Hi system depth105 mm
Mid/Hi system weight3.5 (3ps) kg

Amplifier module (integrated in subwoofer)

AmplifierClass D
Amplifier output system (RMS)200 W
Amplifier output system (peak)800 W
Protection circuitsDSP-based multiband limiter
Protection circuitsover-current
Protection circuitsshort circuit
Protection circuitsthermal overload
Operating Temperature0 - 50 °C
ControlsBT level
ControlsBT pairing
ControlsLine level
ControlsMain level
ControlsMic level
ControlsMono/stereo mode
ControlsMP3 / Hi-Z level
ControlsOn / Off
ControlsSub level
IndicatorsProtect (protection circuit engaged)
Operating voltageSwitching power supply
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Operating voltage200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Power consumption300 W
Line inputs2 x stereo
Line input connectors6.3 mm jack
Line input connectorsXLR
Mic inputs1
Mic inputs6.3 mm jack
Mic inputsXLR
MP3 inputs1
MP3 input connectors3.5 mm jack
Hi-Z inputs1
Hi-Z input connectors6.3 mm jack
Loudspeaker outputs1
Speaker output connectionsCustom-made multipin

DSP characteristics

Bit depth AD/DA converter24 / 24 bit
Internal sampling frequency48 kHz
