LD Systems DAVE 12 G3 - Compact 12" active PA System

LD Systems DAVE 12 G3 - Compact 12" active PA System
4807.34 Lei
3365.14 Lei
*pretul include TVA
In Stoc
LD Systems
cod produs: LDDAVE12G3
Descrierea Produsului

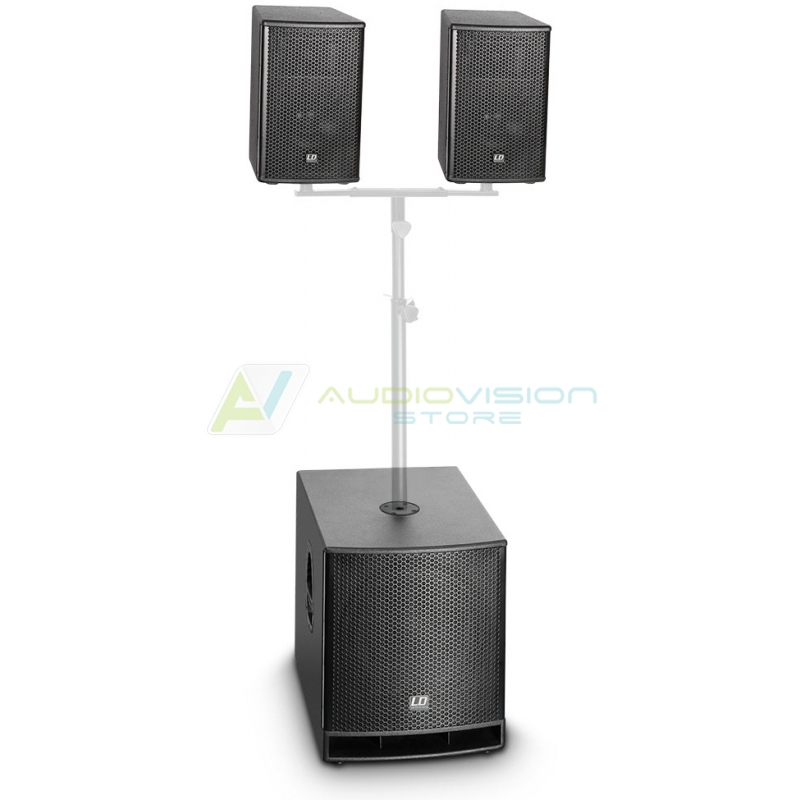

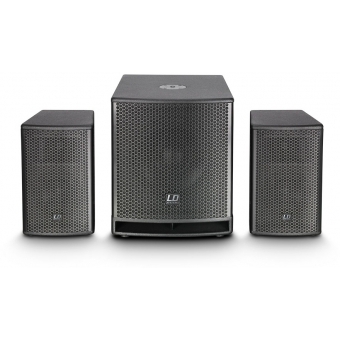

LD Systems DAVE 12 G3 - Active PA-System with DSP

The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 2000 W Peak power.

The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The professional full range of features of the DAVE 12 G3 includes sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by ± 13,5° max. in seven increments.

Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.

Weight48,5 kg
Product typePA Complete Systems
Max. SPL (continuous)119 dB
Max. SPL (peak)130 dB
Frequency response40 - 19000 Hz
Dispersion (H x V)90 x 40 °


Low/mid driver dimensions12 "
Woofer size304.8 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2.5 "
Woofer voice coil (mm)63.5 mm
Cabinet constructionBass Reflex
Cabinet material15 mm Plywood
Cabinet surfacetexture paint
Subwoofer width435 mm
Subwoofer height500 mm
Subwoofer depth540 mm

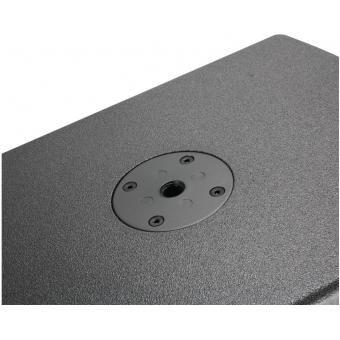

Subwoofer featuresLD Systems "Evolutive" handles, threaded flange M20

Mid/Hi System

Midrange size6.5 ", 165.1 mm
Midrange magnetFerrite
Midrange brandCustom-made
Midrange voice coil1.75 ", 44.5 mm
HornCD horn
Tweeter dimensions1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetFerrite
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Mid/Hi system impedance4 Ohm(s)
Loudspeaker inputs1

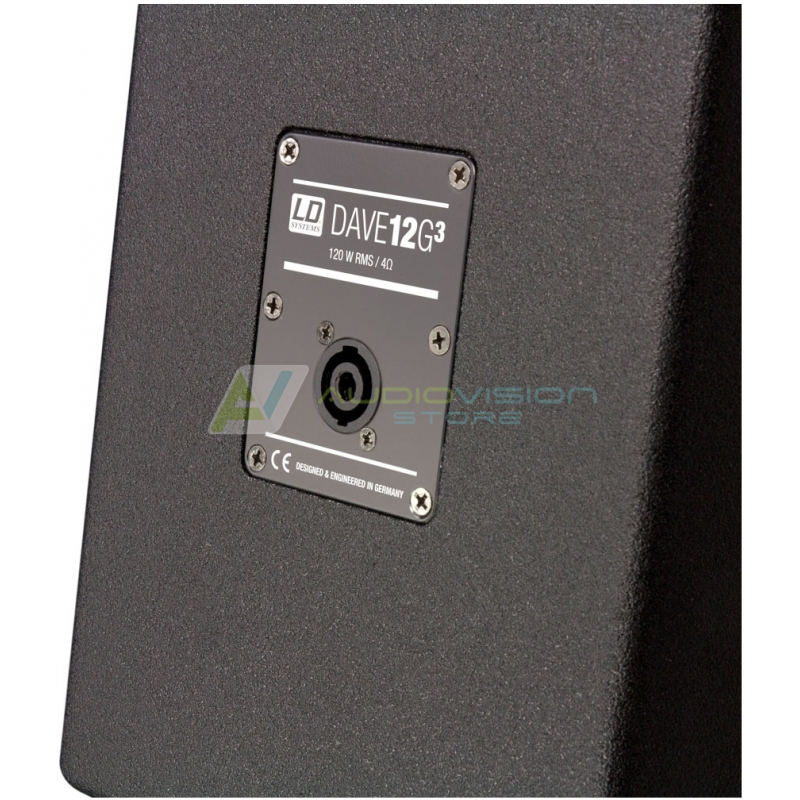

Speaker input connectionsSpeakon compatible
Cabinet construction mid/highClosed
Mid/Hi system cabinet material15 mm Plywood
Mid/Hi system cabinet surfacetexture paint
Mid/Hi system width250 mm
Mid/Hi system height400 mm
Mid/Hi system depth250 mm
Mid/Hi system featuresergonomically shaped insert handles, SM707 stand mount 36 mm

Amplifier module (integrated in subwoofer)

AmplifierClass A/B
Amplifier output system (RMS)500 W
Amplifier output system (peak)2000 W
Protection circuitslimiter, overload, short circuit
Coolingvolume-controlled fan
ControlsPower, Sub level, Subwoofer Phase Reverse, volume
IndicatorsLimit, on/off, Protect (protection circuit engaged), Signal
Operating voltagetransformer, 220 V AC - 240 V AC
Line inputs2
Line input connectors6.3 mm jack, RCA, XLR
Line output connectorsXLR
Loudspeaker outputs2
Speaker output connectionsSpeakon compatible
Internal sampling frequency1000 kHz
