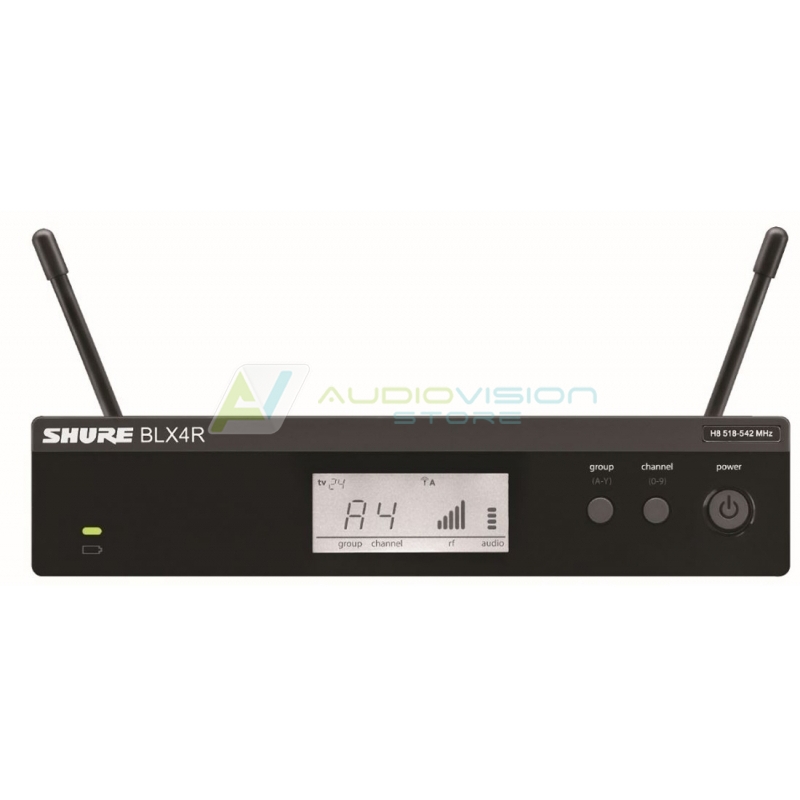

The Rack mount Analog Wireless Receiver BLX4R provides improved linearity and frequency responseThis is the range of frequencies, from the lowest to the highest, that a mic can pick up.
Read moreGo to the glossary for up to 12 compatible channels per group with group and channel scan for easy set-up.
How many musicians can use this system simultaneously?
Up to 12 compatible channels per group with group and channel scan for easy set-up.
Is the setup really that easy?
Yes, with one button you can start the group and channel scan, which gives you the best open frequencyThis is how many times a sound or radio wave oscillates in one second.Read moreGo to the glossary. Adjust the transmitter to the same channel and you’re ready to go.
Is a rack mount kit included
Yes, the box contains everything you need for rack mounting.
What does “Linearity” mean?
The proportion between input signal of the transmitter and output signal of the receiver is always constant.
How does the BLX receiver perform compared to wired?
The frequency response of the wireless microphone is almost identical to the frequency response of a wired mic. Also the dynamic performance is almost the same.
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and ¼” output connectors
Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
Adjustable output level
Removable antennas for quick antenna distribution
LC Display with detailed RF and audio metering
Rack mount kit includedPower supply: PS23
Maximum output level: XLR connector: –20.5 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ load) mW
Further specs:
- Output Impedance:
- - XLR connector: 200 Ω
- - 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
- - XLR connector: –20.5 dBV (into 100 kΩ load)
- - 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 50 mm X 198 mm X 163 mm H x W x D
- Weight, without antennas: 998 g
- Housing: Molded ABS, steel
- Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
