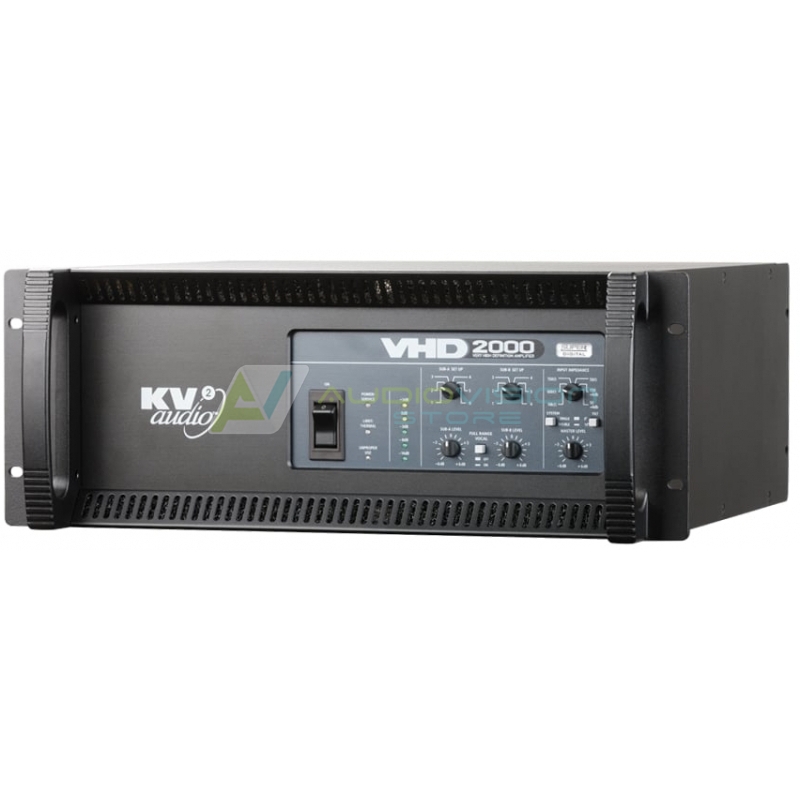

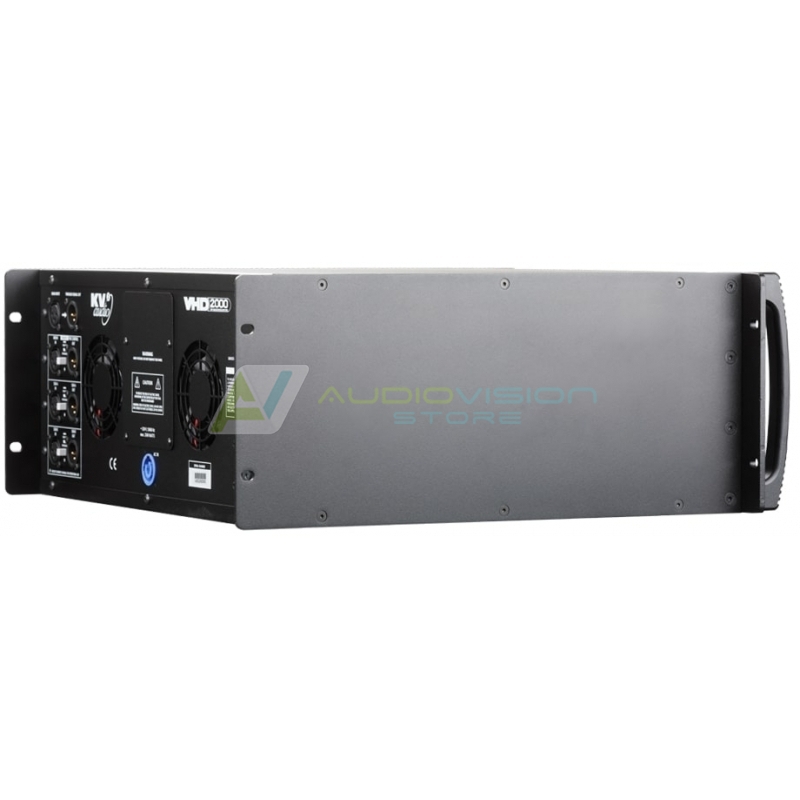

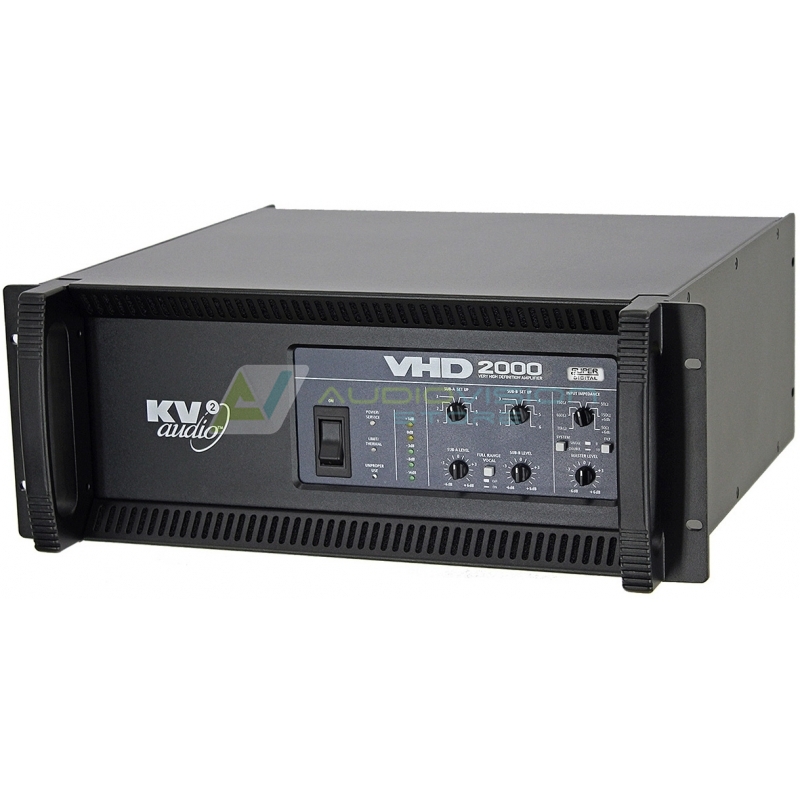

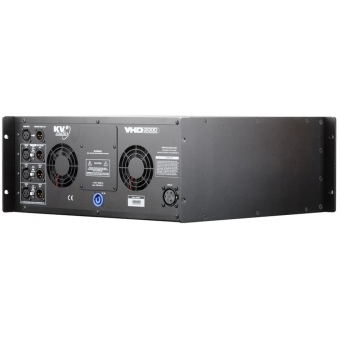

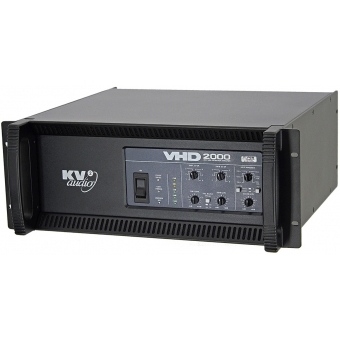

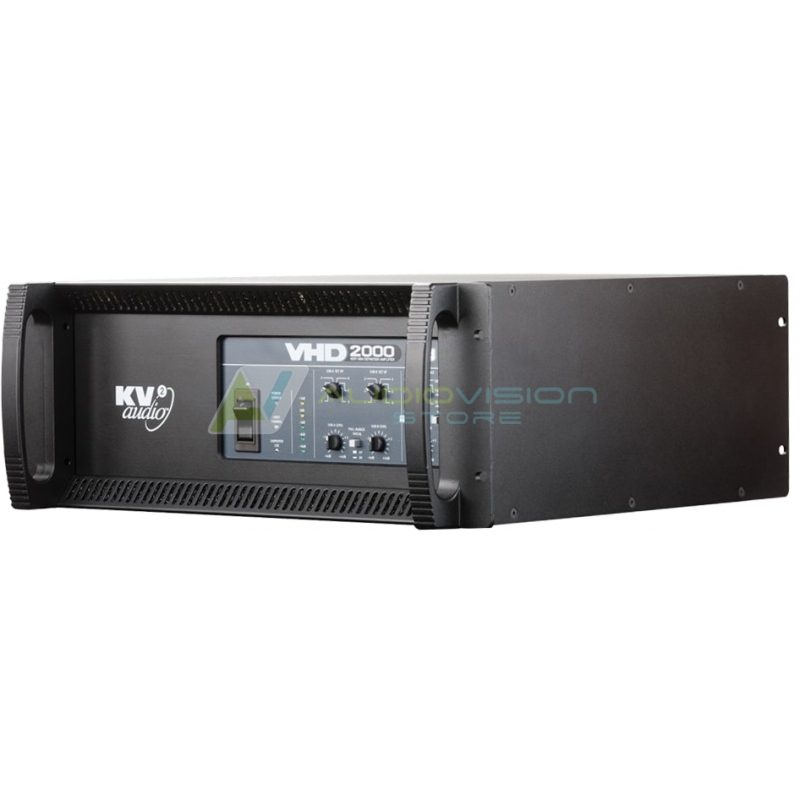

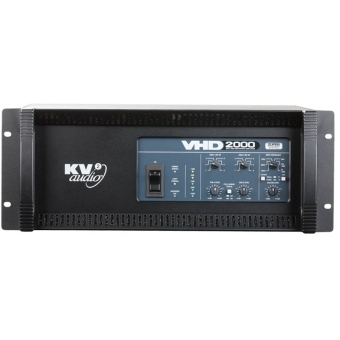

VHD2000 - System Control and Amplification

KV2 Audio
cod produs: KVV 987 081
La comanda
26979.56 Lei
*pretul include TVA

Descrierea Produsului

  • Control and amplification unit for the VHD2.0
  • Three-way, rack-mounted unit containing high frequency, mid frequency and mid-bass amplifiers, houses all processing and control electronics for the subwoofer system
  • Our own hybrid signal processing brings together the very best technology available from both the analogue and digital worlds to offer complete audio system control, equalization, overdrive protection, thermal protection and user adjustable set up parameters
  • The VHD2000 is 'Line Driver Ready' and has its own input impedance selector on the front panel to accurately match up the input impedance to the output of any mixer used
  • Full Range setting for running a VHD2.0 down to 60Hz, useful for many speech and playback applications where subwoofers are not needed, and an electronic 'Tilt' function which will electronically tilt the VHD2.0 Mid high cabinet down by 10°


  • Specifically designed as the amplification and control elements for the VHD loudspeaker systems in a full rack mount module
  • Portable PA
  • Fixed installations


  • Three way modular, 2900W Control and Amplification System for use specifically with VHD series modules
  • High Frequency, 300W, Class AB, push-pull low intermodulation amplifier with transformer balanced outputs
  • Mid Frequency, 1000W, high efficiency, wide power bandwidth amplifier
  • Mid Bass, 1600W, high efficiency, current enhancing switching amplifier
  • Setup provides two channel selection and control of different VHD subwoofer combinations, or full range mode, with level control +/- 6dB and two rear mounted line level subwoofer outputs to feed a VHD 3200 subwoofer amplifier
  • Complete, on board speaker management system including equalization, time alignment, crossover filters, amplifier overdrive protection, system set-up and output level controls
  • Newly developed PDM 20MHz sampling, digital delay alignment system setting new standards for audio performance and dramatically increasing phase response precision and definition
  • AC soft start circuitry with ON/OFF AC breaker switch provides thorough power protection
  • Comprehensive front-to-back cooling system features chassis sealed pcb's for improved reliability
  • Two per side switch engages a specific set of filters and operating parameters for larger scale events when using an extra VHD 2000 and VHD 2.0 per side
  • Individual signal inserts for Mid/High, Subwoofer A, and Subwoofer B providing flexibility for insertion of signal processing or feeding from auxiliary sources as required
  • Front panel Input Impedance selector provides selection of optimal input impedance when used with a KV2 Audio LD4 Line Driver

Physical Dimensions

Height 177.8mm (7.0")
Width 483mm (19.0")
Depth 495mm (19.5")
Weight 30kg (66lbs)

High Frequency Amplifier Specification

Type Class AB Push-Pull low IM Mosfet design, transformer balanced output
Rated Continuous Power 300W
Distortion < 0.05%
Operating Bandwidth 2.2kHz ÷ 30kHz

Mid Frequency Amplifier Specification

Type High Efficiency, High power bandwidth
Rated Continuous Power 1000W
Distortion < 0.05%
Operating Bandwidth 450Hz ÷ 2.2kHz

Mid-Bass Frequency Amplifier Specification

Type High efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power 1600W
Distortion < 0.05%
Operating Bandwidth 100Hz ÷ 450Hz

Signal Input

Input Sensitivity 1.0V RMS
Input Impedance 10kΩ ÷ 50Ω "Line driver ready"
Signal Output Main Through OUT, Sub A and B OUT
Insert Mid/High, A Sub, B Sub


Power Connector Neutrik PowerCon®
Recommended Amperage 20A 115V | 10A 230V | 10A 250V
Operating Voltage Range 100÷120V@60Hz | 205÷240V@50Hz | 225÷260V@50Hz
Protection Thermal breaker
Soft Start YES
Cooling 2x temperature controlled fans
Operating Voltage 115V / 230V / 250V

Output Channels

Number of Channels 1


Level Control +/- 6dB
Subwoofer Level Control Sub A +/- 6dB, Sub B +/- 6dB
System setup 6x
Full Range Mode VHD2.0: 60Hz÷22kHz, Sub MUTE
Two per Side switch Double system - EQ

Speaker Output

Speaker Output EP6

Specificatiile Produsului

  • Amplificator cu Crossover Da
  • Amplificator cu DSP Nu
  • Categorie Amplificator Clasa A-B
  • Echipamente Sunet Amplificatoare
  • Impedanta Minima 2 ohm
  • Numar Canale Amplificator 2 canale
  • Tip Amplificator Instalatie fixa, Touring (rental)
