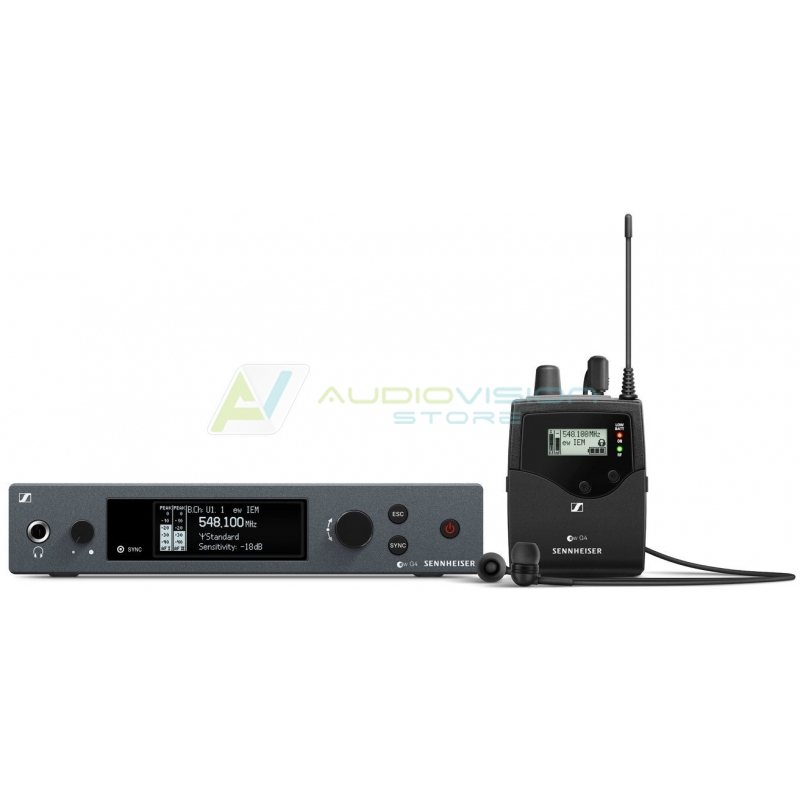

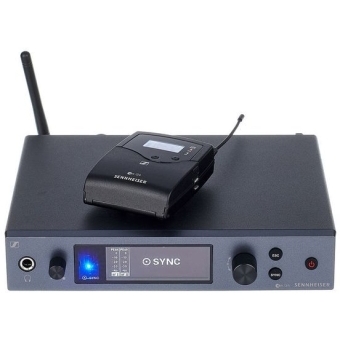

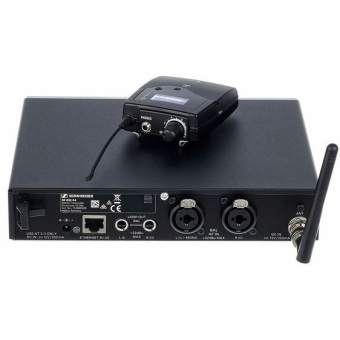

Sistem monitorizare in-ear Sennheiser EW IEM G4

Sennheiser
cod produs: EW IEM G4
La comanda
4662.25 Lei
*pretul include TVA
Cumpara
+-

Descrierea Produsului

Overview

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.



Features

  • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Compatible with Sennheiser WSM control software for flexible frequency allocation

  • Up to 16 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 100 meters / 300 feet

  • High RF output power (up to 50 mW) depending on country regulations



What's in the box?

  • SR IEM G4 stereo transmitter
  • EK IEM G4 stereo receiver

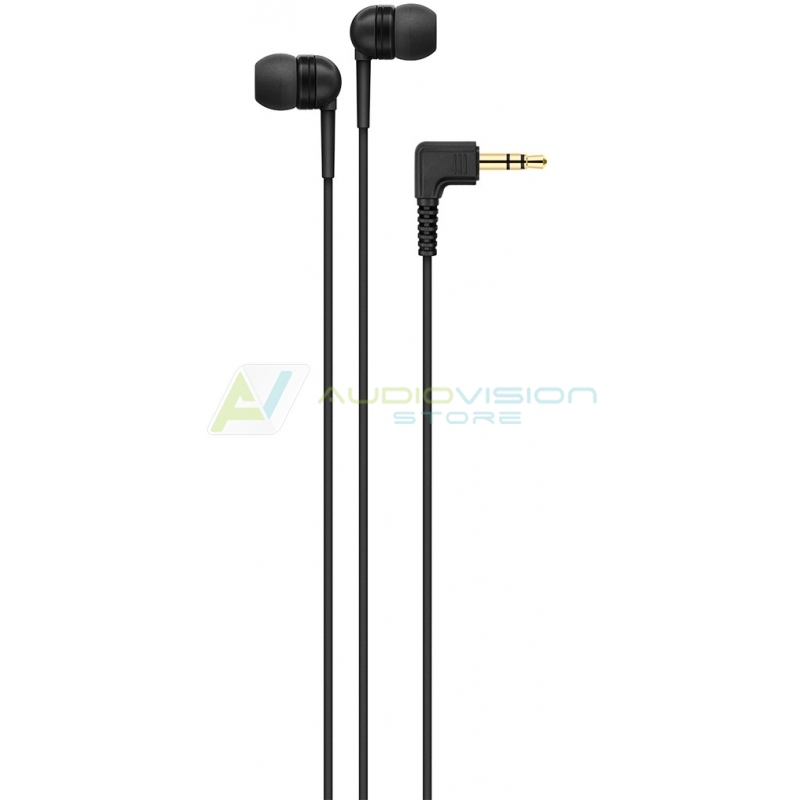

  • IE 4 earphones
  • 2 AA batteries
  • rod antenna
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • power supply

Technical Data

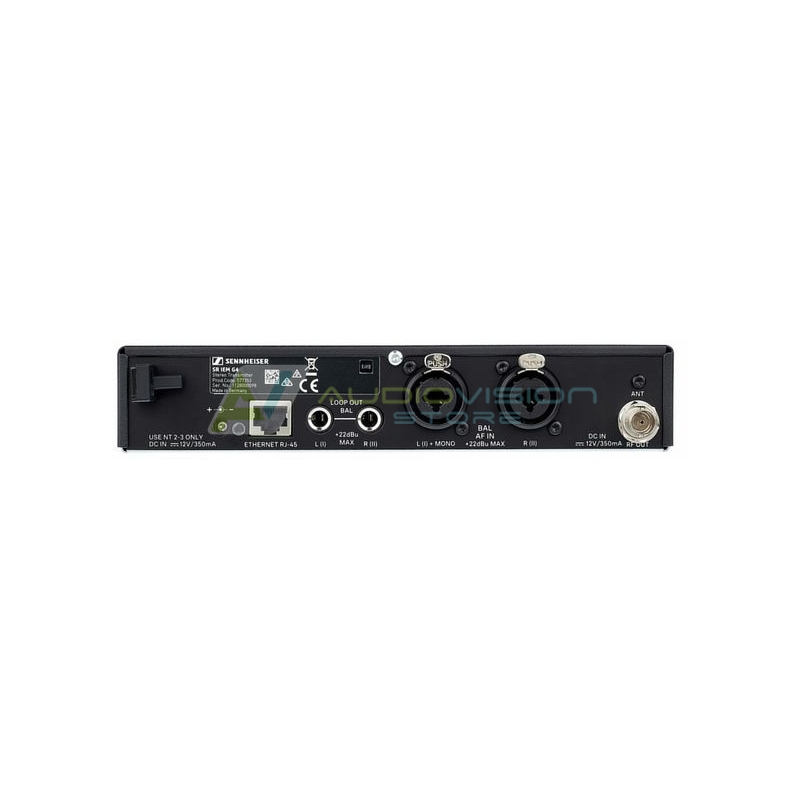

SR IEM G4

  • Frequency range
    A1: 470 - 516 MHz
    A: 516 - 558 MHz
    AS: 520 - 558 MHz
    GB: 606 - 648 MHz
    G: 566 - 608 MHz
    B: 626 - 668 MHz
    C: 734 - 776 MHz
    D: 780 - 822 MHz
    E: 823 - 865 MHz
  • Dimensions
    Approx. 202 x 212 x 43 mm
  • Compander
    Sennheiser HDX
    • THD, total harmonic distortion
      <0.9 %
    • Weight
      Approx. 980 g
    • Audio input
      2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
    • Audio output
      ¼" (6.3 mm) stereo jack socket, balanced
    • Signal-to-noise ratio
      >90 dB
    • RF output power
      switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    • Switching bandwidth
      up to 42 MHz
    • Peak deviation
      ±48 kHz
    • Nominal deviation
      ±24 kHz
    • Modulation
      Wideband FM stereo (MPX pilot tone)
    • Power supply
      12 V DC
    • Current consumption
      max. 350 mA
    • Max. Input voltage
      +22 dBu
    • Transmission frequency
      Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
    • AF frequency response
      25 Hz to 15 kHz
    • Temperature Range
      -10 °C to +55 °C
    • Frequency stability
      ±10 ppm
    • Antenna Output
      BNC socket, 50 Ω



EK IEM G4

  • Dimensions
    Approx. 82 x 64 x 24 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
    • Weight
      (incl. batteries) approx. 125 g
    • Signal-to-noise ratio
      approx. 90 dBA
    • Switching bandwidth
      up to 42 MHz
    • Peak deviation
      ±48 kHz
    • Nominal deviation
      ±24 kHz
    • Operating time
      approx. 4 to 6 hours (depending on volume level)
    • Modulation
      Wideband FM
    • Power supply
      2 AA batteries, 1.5 V or BA 2015 accupack
    • Current consumption
      at nominal voltage: approx. 140 mA
      with transmitter switched off: ≤ 25 µA
    • Adjacent channel rejection
      Typically ≥ 65 dB
    • Audio-Output-Power
      2 x 100 mW at 32 Ω
    • Intermodulation attenuation
      Typically ≥ 70 dB
    • Limiter
      –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
    • Powering
      3 V battery / 2.4 V rechargeable battery
    • Receiving frequency
      Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
    • RF sensitivity
      < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
    • Squelch
      5 to 25 dBµV, adjustable in steps of 2 dB
    • Bass Boost
      +8 dB at 80 kHz
    • Temperature Range
      -10 °C to +55 °C
    • Receiver Principle
      Adaptive diversity
    • Blocking
      ≥ 80 dB
