LD Systems U506 IEM HP - In-Ear Monitoring System with Earphones - 655 - 679 MHz

LD Systems U506 IEM HP - In-Ear Monitoring System with Earphones - 655 - 679 MHz
2951.19 Lei (-15%)
2508.51 Lei
*pretul include TVA
La comanda
LD Systems
cod produs: LDU506IEMHP
Descrierea Produsului

Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.

U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.

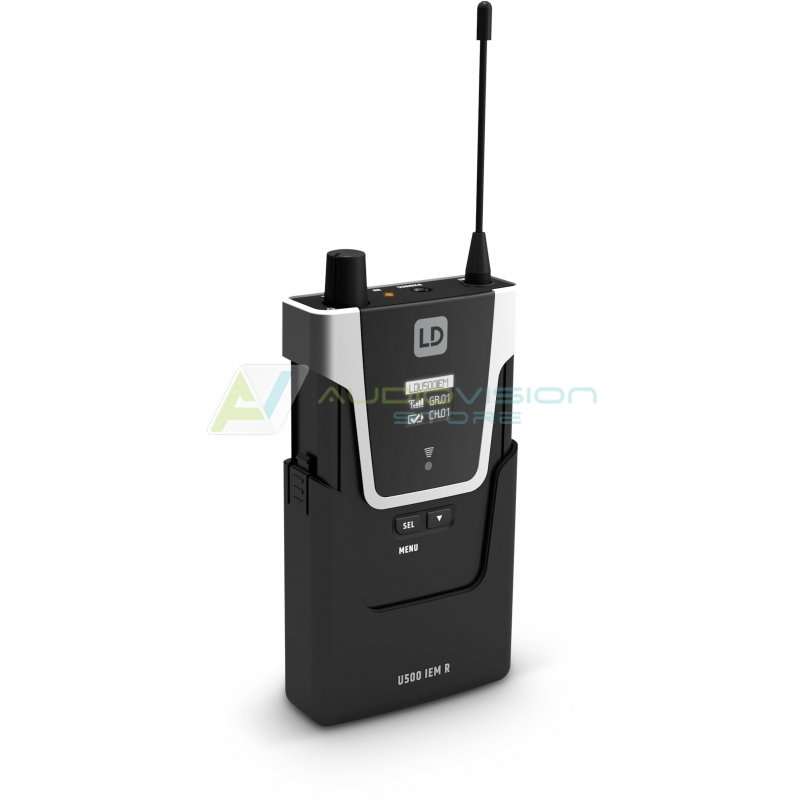

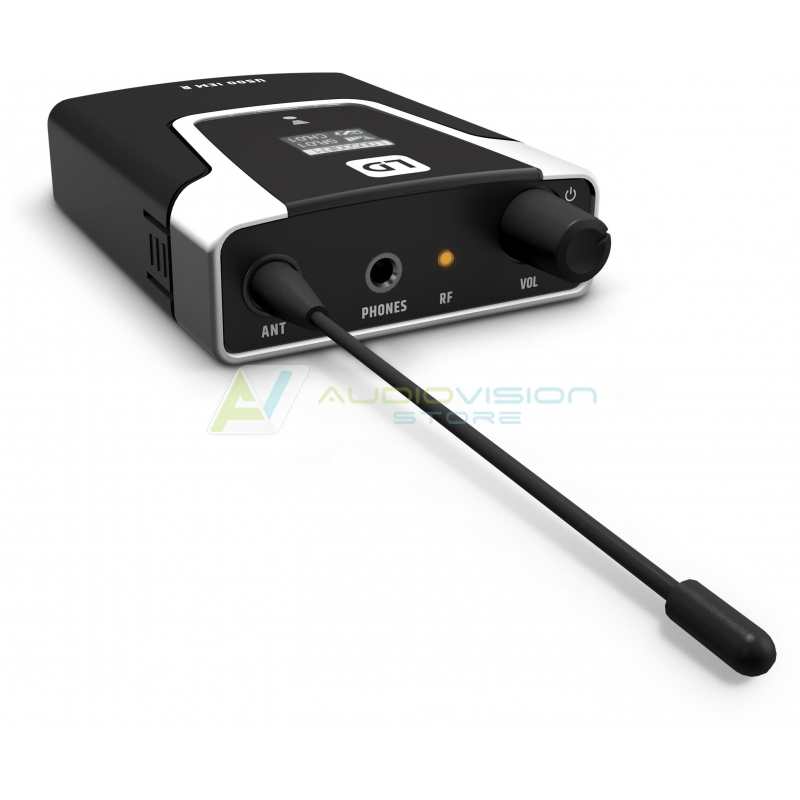

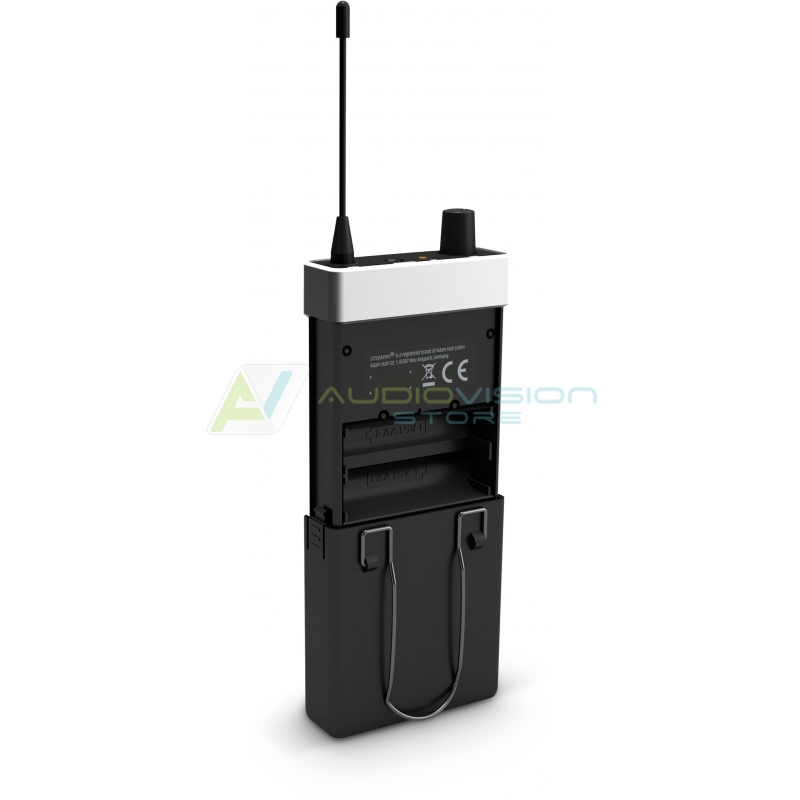

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo, focus and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • Simultaneous operation of up to 12 systems
  • U500® IEM transmitter compatible with U300® IEM bodypacks
Product typeIn-ear Monitoring Accessories
Product typeIn-ear Monitoring Accessories
Product typeHeadphones
Product typeIn-ear Monitoring
Transmission frequency range655 - 679 MHz
Transmission frequency range655 - 679 MHz

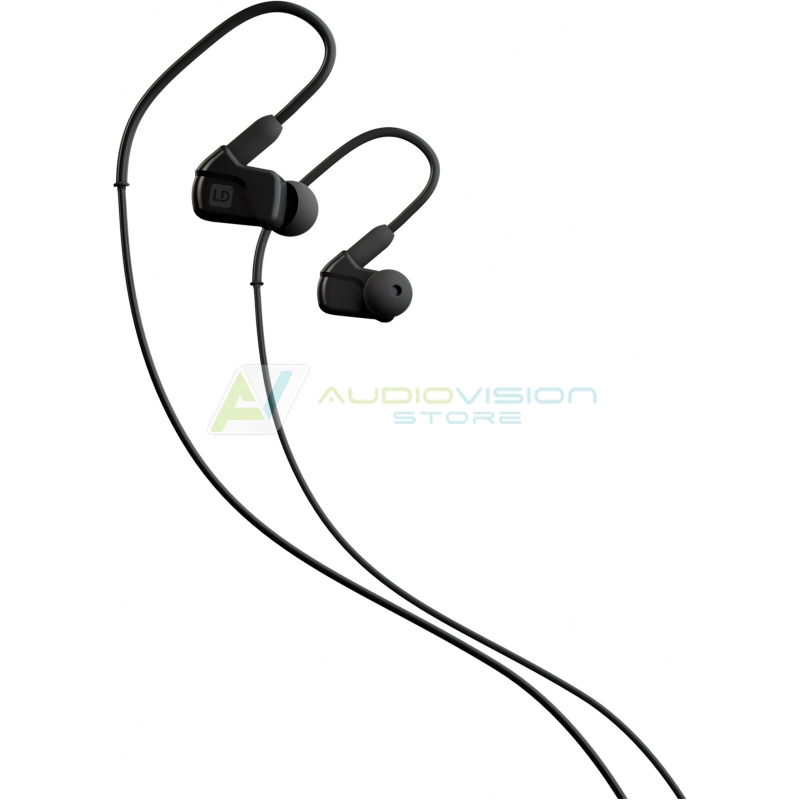

TypeStereo-In-Ear Headphones
Transmission frequency range655 - 679 MHz
Frequency response20 - 18000
Converter principleDynamic
Modes of operationfocus/mono/stereo
Transmission methodFM, mono/stereo
Impedance32 Ohm(s)
Weight0,755 kg
Connection type3.5 mm TRS
Frequency response40 - 16000
Transmission methodFM, mono/stereo
Rated HF output powerVariable (2mW, 10mW, 30mW)
Cable length1.55 m
Frequency response40 - 16000
Signal-to-noise ratio93 dB
Total Harmonic Distortion (THD)0.3 %
Audio output3.5 mm TRS
Max. audio output level33 mW @ 16 Ohm mW
Max. audio output level80 mW @ 33 Ohm mW
Dynamic range88 dB
Antenna connectorFixed to housing
ControlsOn / Off
Input connectorsCombo TRS 6.3 mm
Input connectorsXLR (balanced)
Input impedance (kOhms)12 kOhm
IndicatorsMultifunctional OLED-Display
IndicatorsRF (LED)
Weight0,022 kg
Operating voltage2 x 1.5 V AA
Operating time< 10 hours
Width64 mm
Accessories (included)3 pairs of foam earpieces
Accessories (included)3 pairs of silicone earpieces
Accessories (included)Transport case
Antenna connectorBNC
ControlsMenu selector Button
ControlsPower On/Off
Controlsvolume headphones
Height100 mm
Depth24 mm
IndicatorsMultifunctional OLED-Display
Operating voltage12 - 18 V DC
Weight0,095 kg
Accessories (included)2 x AA batteries
Accessories (included)Antenna
Width212 mm
Featuresbattery status LED
Height43 mm
Depth123 mm
Weight0,641 kg
Accessories (included)19" Rack mount kit
Accessories (included)BNC-Antenna
Accessories (included)power adapter
