DJ mixer with Bluetooth connectivity and sound filter
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 8 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >80 dB |
| THD: | 60 dB |
| Control elements: | Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch |
| Status LED: | Power, master level meter |

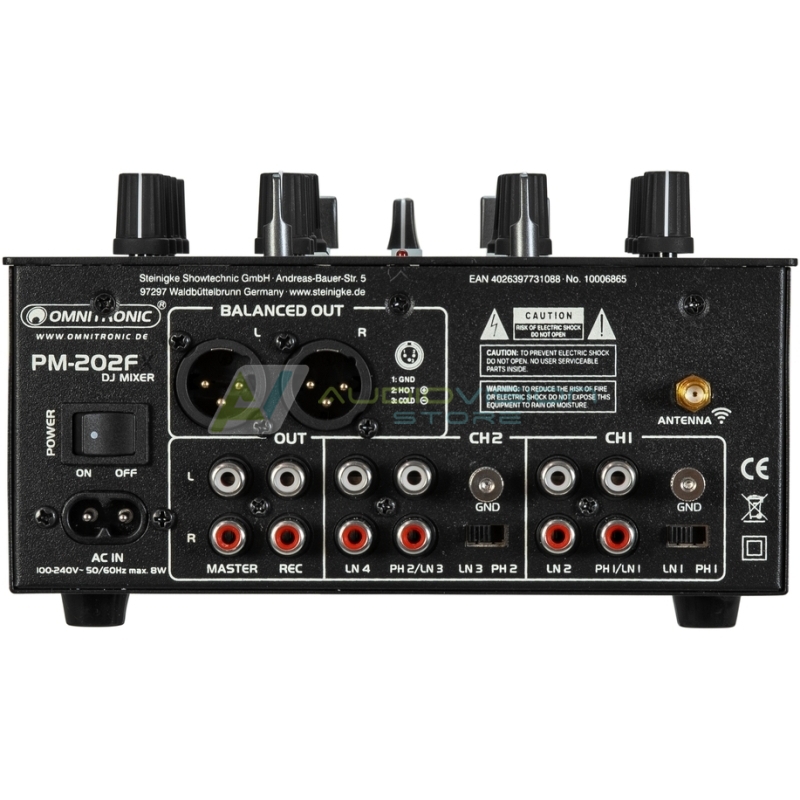

| Connections: | Input: line/phono via 2 x stereo RCA Input: line via 2 x stereo RCA Input: microphone via 1 x 3-pin XLR (F) mounting version Input: antenna via 1 x SMA (F) mounting version Input: Earthing connection via 2 x screw terminal Output: master via 2 x 3-pin XLR (M) mounting version Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch Microphon chanal: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol Headphones output: stereo via jack, channel control via rotary dial, cue mix function Rec. output: stereo via RCA |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 30,5 cm Width: 19,0 cm Height: 11,0 cm |
| Weight: | 2,20 kg |
| Power cord | |
| Cable length: | 2,10 m detachable |
