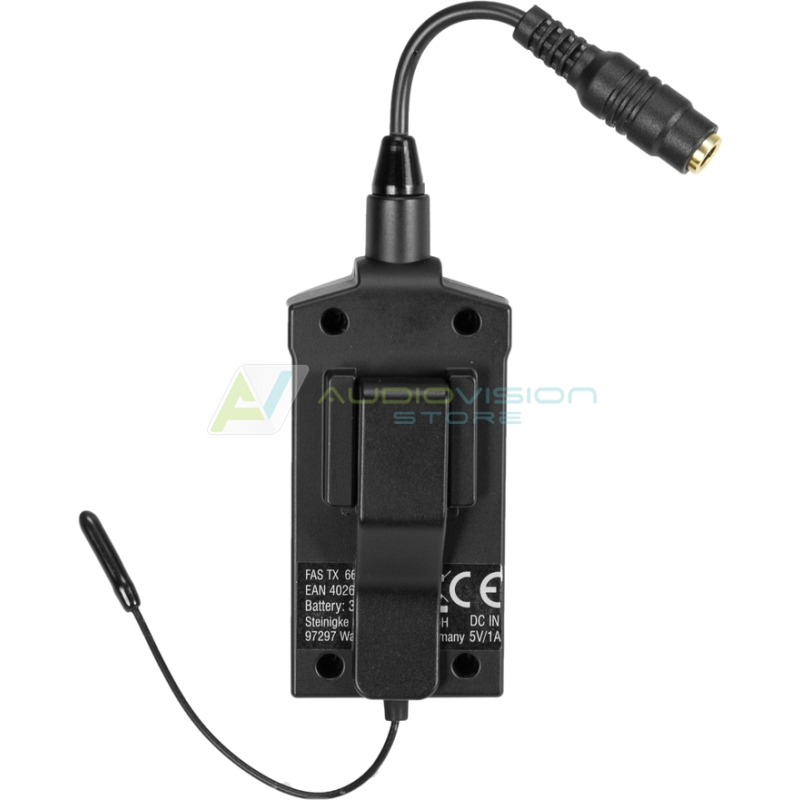

Minature bodypack transmitter for FAS-TWO receiver
| Type: | Pocket transmitter |
| Power supply: | 5V DC 1000 mA |
| Power connection: | Mains input via USB C (W) mounting version Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3.7 V, 600 mAh, 2.2 Wh |
| Battery pack: | Battery operation up to 5h |
| Number of channels: | 1 |
| Range: | Up to 30m with line-of-sight |
| Frequency band: | UHF 660 - 690 MHz |
| RF power output: | 10 mW |
| Modulation: | Pi/4 DQPSK |
| Frequency selection: | 40 In 2 groups Frequencies automatically scannable Switchable frequencies |
| Status LED: | Power |
| Connections: | Input: mic/line via 1 x 3.5 mm jack (stereo) mounting version |
| Max. level: | Input: mono -1.5 dBu, unbal. |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 21 cm Width: 3.05 cm Height: 2.9 cm |
| Weight: | 0.034 kg |
