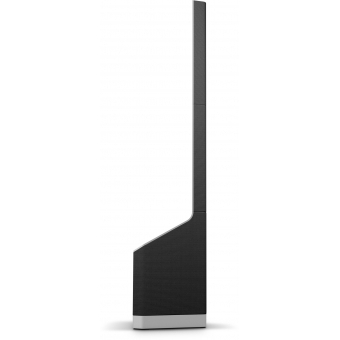

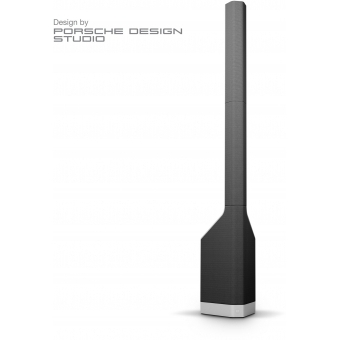

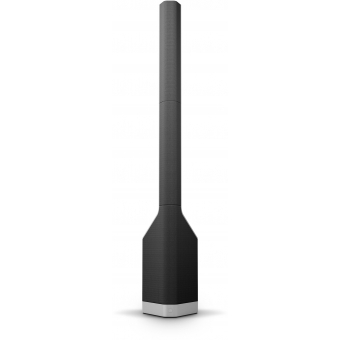

LD Systems MAUI P900 B - Powered Column PA System by Porsche Design Studio in Graphite Black

LD Systems MAUI P900 B - Powered Column PA System by Porsche Design Studio in Graphite Black
Pret la cerere
In Stoc
LD Systems
cod produs: LDMAUIP900B
Descrierea Produsului


Developed in collaboration with Porsche Design Studio, the LD Systems MAUI® P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

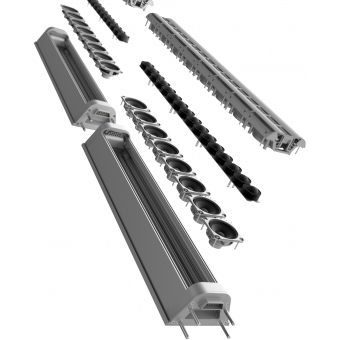

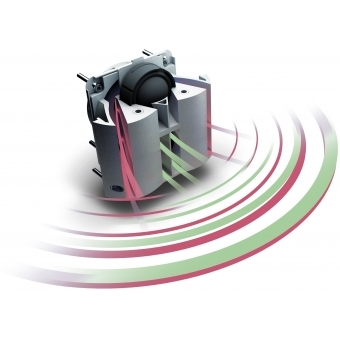

The MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 15 m (50 ft.) distance between left and right channel systems.

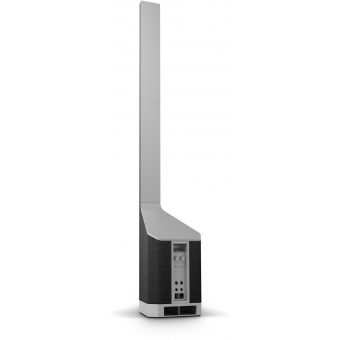

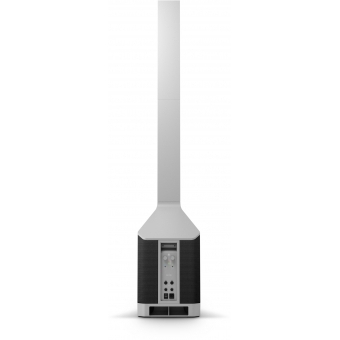

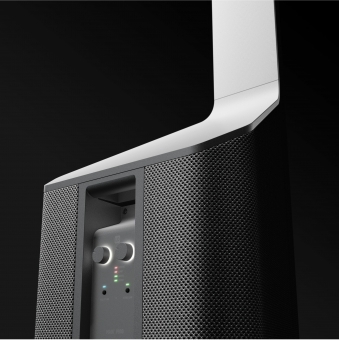

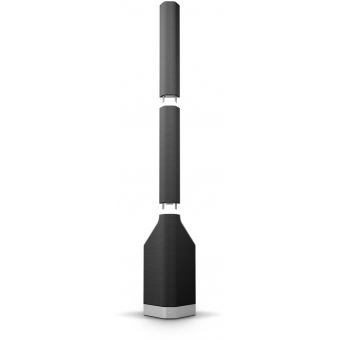

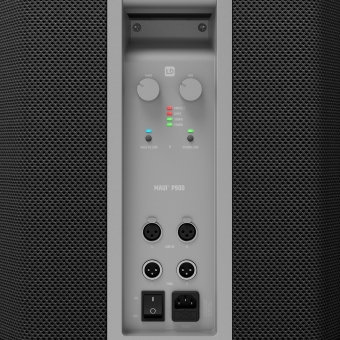

Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.

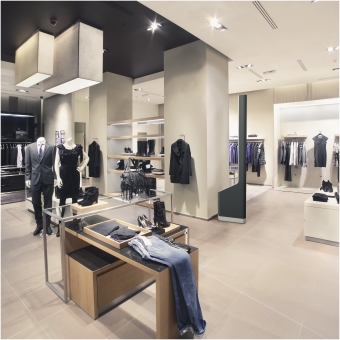

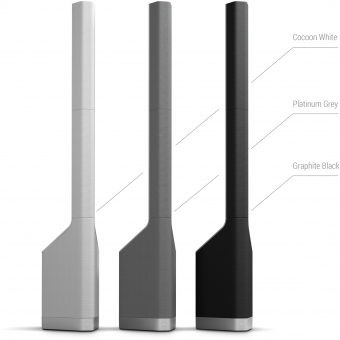

Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.

To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.

  • Powered column PA system for live events and install
  • Award-winning design by Porsche Design Studio
  • Durable aluminium body
  • 1,400 watts RMS system power and 131 dB maximum SPL
  • 50 premium transducers for monumental clarity
  • SonicGuide® and WaveAhead® technology for coherent wavefront
  • DynX® DSP for distortion free sound
  • aptX™ and AAC coding for HD Bluetooth® streaming
  • TrueWireless Stereo™ for wireless stereo pairing
  • Available in Cocoon White, Platinum Grey or Graphite Black
Product typePA Complete Systems
Typeactive
ColorGraphite Black
Max. SPL (continuous)121 dB
Max. SPL (Peak)131 dB
Frequency response42 - 20.000 Hz
Dispersion (H x V)140 x 15 °
Total Height2173 mm
Weight46 kg
FeaturesBluetooth Audio Streaming
FeaturesDSP-based Signal Processing
FeaturesExcellent Sound Dispersion
FeaturesMono/ Stereo Application

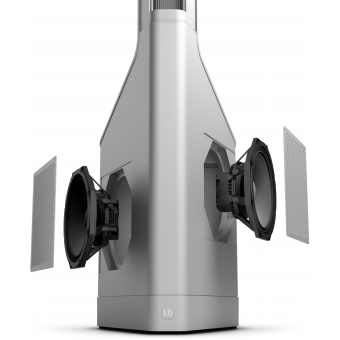

Subwoofer

Woofer dimensions2 x 10 "
Woofer dimensions (mm)2 x 254 mm
Woofer magnetNeodymium
Woofer brandCustom-made
Woofer voice coil3 "
Woofer voice coil (mm)76.2 mm
Cabinet constructionBass Reflex
Housing material15 mm Plywood
Cabinet surfaceHD coated aluminum
Cabinet surfacemulti layer mesh (cloth)
Dimensions Subwoofer (W x H x D)400 x 745 x 470 mm
Subwoofer weight30.6 kg

Mid/Hi System

Midrange dimensions16 x 2.8 "
Midrange dimensions (mm)16 x 71,1 mm
Midrange magnetNeodymium
Midrange brandCustom-made
Midrange voice coil0.75 "
Midrange voice coil20 mm
Tweeter dimensions32 x 1 "
Tweeter dimensions (mm)25.4 mm
Tweeter magnetNeodymium
Tweeter brandCustom-made
Tweeter voice coil1 "
Tweeter voice coil (mm)25.4 mm
Wave GuideSonicGuide® Technology
MF / HF Transducer ArrangementPatented WaveAhead® Technology
Loudspeaker inputs1
Speaker input connectionsCustom-made multipin
Cabinet construction mid/highClosed
Mid/Hi system cabinet materialAluminium
Mid/Hi system cabinet surfaceHD coated aluminum
Mid/Hi system cabinet surfacemulti layer mesh (cloth)
Mid/Hi system width157 mm
Mid/Hi system height1428 (2 x 714) mm
Mid/Hi system depth91 mm
Mid/Hi system weight2 x 7.7 kg

Amplifier module (integrated in subwoofer)

Amplifier3 x class D
System output (RMS)1400 W
System output (Peak)2800 W
Protection circuitsDC protection
Protection circuitsMultiband limiter
Protection circuitsshort circuit
Protection circuitsthermal protection
CoolingConvection
ControlsBluetooth HOLD TO LINK button
ControlsBluetooth STEREO LINK button
ControlsMain level
ControlsPower On/Off
ControlsSub level
IndicatorsBluetooth
IndicatorsBluetooth STEREO LINK
IndicatorsLimit
IndicatorsPower
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Mains connectorIEC power cable (included)
Operating voltage100 V AC - 120 V AC, 50 - 60 Hz
Operating voltage200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Operating voltageSwitching power supply
Power Consumption (On / Off / Max.)0 W / 11 W / 1000 W
Ambient temperature (operating)0 - 40 °C
Relative Humidity10 % - 80 %
Line Inputs1 x stereo
Line Input ConnectorsNeutrik XLR
Line Outputs1 x Stereo Thru
Line Output ConnectorsNeutrik XLR
Number of speaker outputs1
Loudspeaker Output ConnectorsCustom-made multipin
Bluetooth StandardA2DP
Bluetooth Audio DecoderAAC
Bluetooth Audio DecoderaptX
Bluetooth Audio DecoderSBC

DSP characteristics

Bit depth AD/DA converter24 bit
Sampling frequency48 kHz
Signal-to-noise ratio106 dB
