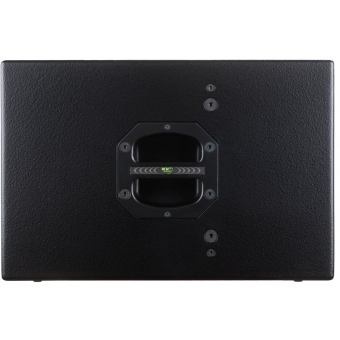

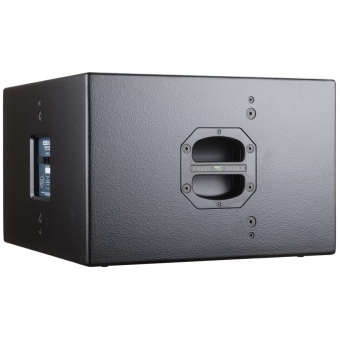

KV2 Audio ESD1.10 Subwoofer Compact Pasiv (ESD CUBE)

KV2 Audio ESD1.10  Subwoofer Compact Pasiv (ESD CUBE)
6537.27 Lei
*pretul include TVA
In Stoc
KV2 Audio
cod produs: KVV 987 391
Descrierea Produsului

The ESD1.10 is a compact passive 10" subwoofer featuring a high quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low frequency applications alongside other KV2 Audio products.


  • Professional, Baltic birch construction with wear resistant polymer coating
  • 121dB sustained output, 124dB peak
  • Excellent reproduction of bass frequencies with high transient content at high output levels
  • 10" high efficiency low frequency woofer with a 3" (75 mm)
  • inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure


Specifically designed as a passive subwoofer to accompany and compliment the ESD Cube systems, or as a standalone compact low frequency solution for space limited applications.

  • Fixed installations
  • Bars-small entertainment projects and peripheral sound
  • Museums or Theme park projects
  • Small footprint and dimensions allow placement under seating and fixtures
System Acoustic Performance
Max SPL Long-term 121dB
Max SPL Peak 124dB
-3dB Response 40Hz - 150Hz
-10dB Response 35Hz
Recommended Power 500W
Sensitivity 94dB
Crossover Point 150Hz

Low Frequency Section

Acoustic Design Twin Asymetrical Loading
Number of Drivers 1
Woofer Size / Voice Coil Diameter / Design 10" / 3" / Inside outside
Magnet Type Neodymium
Diaphragm Material Epoxy Reinforced Cellulose
Protection Thermal breaker - autoreset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block


Cabinet Material Baltic birch
Handles 1
Pole Mount M20
Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

Height 335 mm (13.2")
Width 530 mm (20.9")
Depth 500 mm (19.7")
Weight 21,3 kg (46.96 lbs)
