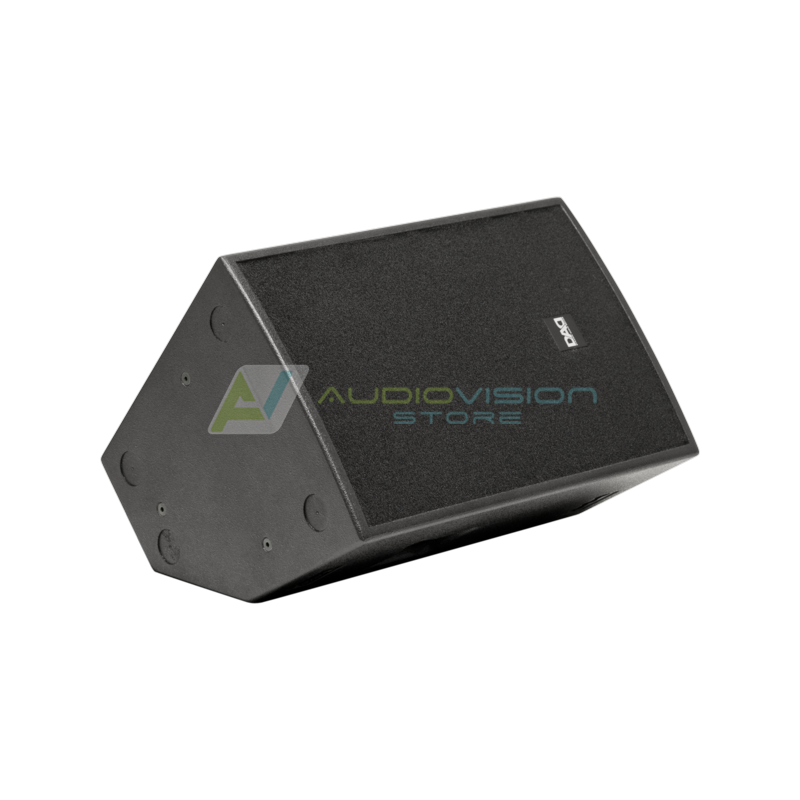

Active loudspeakers, D+AB class bi-amp, 2-way 350 W+70 W,128db SPL
Features:Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.
Frequency response: 60-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Birch plywood enclosure, designed for stage-monitor application
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKERSystem type:
active 2 way
COMPONENTSLow frequency:
12
''
woofer/3''v.c.
High frequency:
1
''
driver/1.7''v.c.
FEATURESBuilt-in amp LF/HF:
350+70
W
SPL max:
128
dB
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
122/128
dB
@1m (free field)
Frequency response:
60-18000
Hz
(±3dB)
Coverage angle HxV:
90x70
°
Cross over frequency:
1700
Hz
ELECTRONICSAmplifier:
digital + AB class
Power:
350+70
W
/4/8Ohm
Input sensitivity:
4 dBu (1,228Vrms) adjustable
Protection:
fast limiter, temp
User controls:
mic, line, master, eq LF-HF
Processor:
analog
Operating voltage/frequency:
220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT
Power connection:
VDE
PHYSICALDimensions (WxHxD):
361x530x367
mm
Weight:
25
kg
