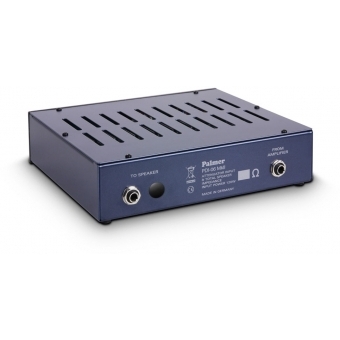

Palmer PDI 06 L16 - Power Attenuator 16 Ohms

Palmer PDI 06 L16 - Power Attenuator 16 Ohms
1564.75 Lei
1095.33 Lei
*pretul include TVA
La comanda
Palmer
cod produs: PDI06L16
Descrierea Produsului

Palmer Power Attenuator - Control the volume of your guitar amp

The PDI06 is a power attenuator for live applications. The device is connected between the amplifier output and the speaker cabinet. It makes it possible to use the popular power stage distortion of tube amplifiers while reducing the associated high volume level. This permits practical volume reduction in five increments from 100% to 18% for stage and practice room situations. An additional level makes the speaker completely mute; the PDI06 then functions as a LOAD BOX and absorbs the entire output power of the amplifier.

This mode of operation is useful, for example, when connecting an amplifier equipped with a speaker cabinet emulation directly to the mixing desk using an existing line-out and loud volume levels in the recording booth are undesirable. The unit has an input for the speaker signal from the amplifier and two outputs for connecting speaker cabinets.

The total impedance of the speakers must equal the value shown on the PDI06. Example: the outputs of a PDI06, that is specified for 8 ohms, can be connected to one 8 ohm cabinet or two 16 ohm cabinets (the 16 ohm version has only one output). The output of the (tube) amplifier is also set to 8 ohms.

Product typeSpeaker Simulators
Channels1
Input typeunbalanced
Inputs1
Input connectors6.3 mm jack
Output typeunbalanced
Outputs2
Output connectors6.3 mm jack
Output impedance16 Ohm(s)
Controlsbypass, rotary attenuation switch
Dummy loadYes
Dummy load impedance16 Ohm(s)
Max. load120 W
Voicing filterno
Power attenuatorYes
Transformer isolated outputsno
Cabinet materialsheet steel/aluminium
Cabinet surfacepowder coated/anodized
Width220 mm
Depth220 mm
Height50 mm
Weight2,4 kg
