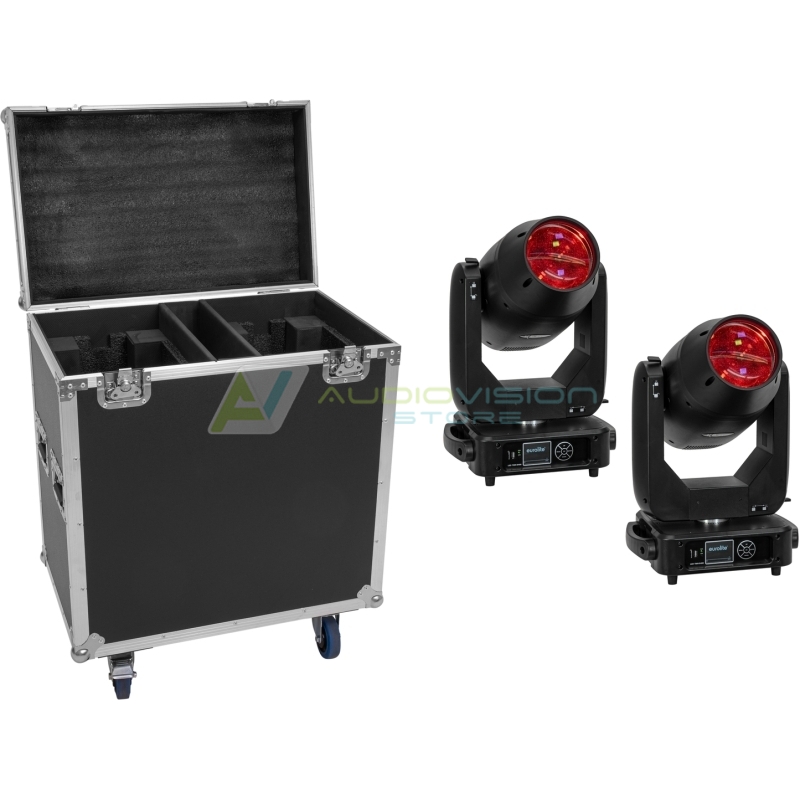

de la in 60 de rate fixe.EUROLITE LED TMH-S400 CMY Moving Head Beam/Spot/Wash
LED moving head hybrid with 400 W COB LED, color wheel, CMY color mixing, static and rotating gobo wheel, prisms, focus, zoom and frost
ROADINGER Flightcase 2x TMH-S400 with wheels
Trunk case with castors
| Weight: | 75.50 kg |
| EUROLITE LED TMH-S400 CMY Moving Head Beam/Spot/Wash | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 460 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 400 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 220° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: | 540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: | 0.3 - 19 Hz |
| Equipment: | Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; zoom motor driven; focus motor-driven; prism 6-fold rotating linear; prism 8-fold rotating |
| Color generation: | CMY color mixing for indefinite color variations |
| Color generation: | Color wheel with 12 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 22mm Image diameter 15mm Slot-in gobo system for easy gobo replacement Shake effect Gobo indexable Gobo wheel with static gobos, 12 gobos and open Shake effect |
| DMX channels: | 22; 25 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | 1 x cooling fan at the base 2 x temperature-controlled fan at the head |
| Control: | DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function |
| Fixtures available for: | Light Captain; GDTF (GrandMA3) 3D; GDTF (GrandMA3) |
| Projection: | Flicker-free |
| PWM frequency: | 16000 Hz |
| DMX fail mode: | Hold; zero values |
| DMX features: | RDM For bidirectional communication over the DMX line |
| Beam angle: | 6° - 32° |
| Beam angle (1/2 peak): | 6 - 32° |
| Beam angle (1/10 peak): | 6 - 32° |
| Illuminance in Lux (lx): | Wide cold white (CW) 1m: 71405 lx, 3m: 10342 lx, 6m: 2770 lx |
| Housing color: | Black |
| Attachment system: | 2x omega bracket |
| Display type: | Multicolor touchscreen display |
| Control elements: | Power switch |
| Status LED: | DMX, fault |
| USB port: | Type A |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x rubber feet |
| Material: | Metal |
| Dimensions: | Width: 38 cm Depth: 27 cm Height: 64.5 cm |
| Weight: | 23.25 kg |
| Noise classification: | Class 2 (slight noise) |
| ROADINGER Flightcase 2x TMH-S400 with wheels | |
| Maximum load: | 100 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 2 pc/pcs with shut-off function |
| Transport aid: | 2 x castors with 2 locking brakes Ø 10 mm 4 x built-in stacking trays in the cover |
| Material: | Birch multiplex, 9 mm |
| Color: | Black, laminated |
| Device compartment: | 28 cm x 40 cm x 61 cm |
| Accessory compartment: | 8 cm x 40 cm x 18.5 cm |
| Dimensions: | Length: 70.5 cm Width: 45 cm Height: 86 cm |
| Weight: | 29.00 kg |
