de la in 60 de rate fixe.The VEXO208 is a high-output 3-way loudspeaker, providing a powerful and detailed signature sound of the VEXO family with a dual 8-inch driver in a compact cabinet.

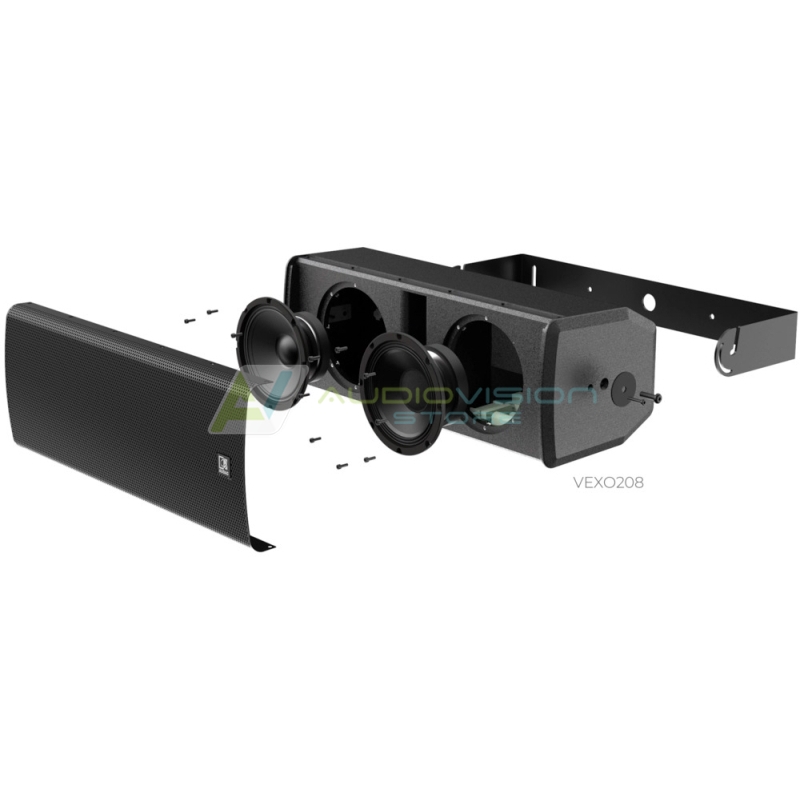

The combination of the elegant enclosure and high performance allows them to be used in installation applications that require both a modern look and a unique audio experience from nightclubs to sports facilities. Compression driver overload protection is provided through an internal limiting circuit. Mounting in both horizontal and vertical directions is possible with the included wall bracket. An optional 70/100V transformer module can be installed to use VEXO208 in Hi-Z systems.
What is new with the VEXO208I?
The VEXO208I brings enhanced mounting versatility and an 8-ohm version, ensuring improved compatibility for various applications.
| System specifications | |||
|---|---|---|---|
| Speaker type | 3-way | ||
| Peak power handling | 1600 W | ||
| Program power handling | 800 W | ||
| Continuous power (AES) | 400 W | ||
| Sensitivity (1W/1m) | 94 dB | ||
| Sound Pressure (Max. W/1m) | 121 dB | ||
| Frequency | Response (± 3 dB) | 62 Hz - 20 kHz | |
| Drivers | HF | Compression driver with 1.4" VC and 1" throat | |
| Drivers | LF | 1 x 8" Coaxial LF with 2” voice coil, 1x8” LF with 1.8” voice coil | |
| Connectors | 2 x Speakon compatible (Linkthrough) | ||
| Frequency | Range (-10 dB) | 46 Hz - 20 kHz | |
| Impedance | 4 Ω (VEXO208) | ||
| Impedance | 8 Ω (VEXO208I) | ||
| Coverage | Avg 1 kHz – 4 kHz | -6 dB | 1/3 oct | Horizontal | 96° |
| Coverage | Avg 1 kHz – 4 kHz | -6 dB | 1/3 oct | Vertical | 100° |
| Coverage | Rotatable Horn | No | |
| Product features | ||
|---|---|---|
| Weight | 17 kg | |
| Finish | Front finish | Powder coated steel grill with acoustical foam |
| Mounting & handling | Rigging points | 2 x M6 & 2 x M10 |
| Powerdrive mount | Powerdrive type 100 (127 x 70 mm) | |
| Mounting | Mounting pattern | 127 x 70 x M8 mount |
| Dimensions | 715 x 258.5 x 285 mm (W x H x D) (Without mounting bracket) | |
| Dimensions | 741 x 258.5 x 337.5 mm (W x H x D) (With mounting bracket) | |
| Construction | 15 mm Multiply plywood | |
| Finish | Cabinet finish | Multi-Layer polyurea coating (4-layer) |
| Accessories | Included | Mounting bracket |
| Accessories | Included | Drop safety wire |
| Accessories | Optional | 70V/100V transformer module |
