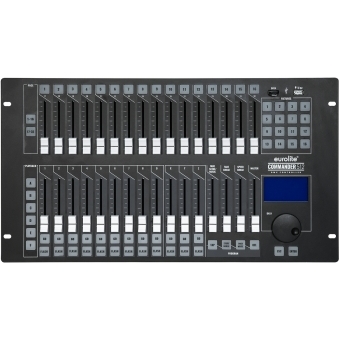

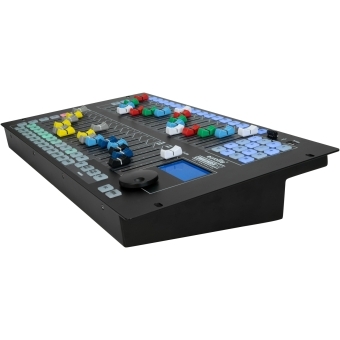

Modern theater lighting console for 512 DMX channels, separate dimmer faders for scenes & chases
- Designed for moving lights, lighting effects, LED spot lights and dimmers
- Master dimming, fade time and run time easily adjustable
- Different colored fader caps for customized designs included
- Good visual control of scenes and chasers through intelligent status LEDs
- Manual, time-controlled or sound-controlled chase running mode
- Several chases and scenes can be run simultaneously
- Sound control via audio signal or TAP button
- USB port for storing program data
- (19") 48.3 cm rack installation 6 U
- 57 scenes/chases 767 cues distributed over 9 page/s
- Can be operated in 512 CH mode
- Control via sound to light via microphone; sound to light via 6.3 mm jack socket (stereo) mounting version
- LCD display
- The device can be connected via USB to the PC
firmware can be updated - Desktop console housing
- For application areas such as: Clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; stage; theater; restaurants, bars and hotels; rental
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Programs: | 57 scenes/chases 767 cues distributed over 9 page/s |
| DMX channels: | 512 |

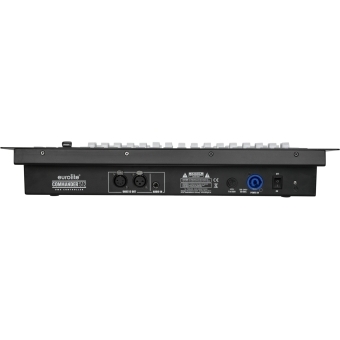

| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Control: | Sound to light via microphone; sound to light via 6.3 mm jack socket (stereo) mounting version |
| Housing color: | Black |
| Display type: | LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | 2 x type A |
| PC connect: | Via USB, firmware can be updated |
| Housing design: | Desktop console housing
(19") 48.3 cm rack installation 6 U |
| Dimensions: | Length: 48.3 cm
Width: 26.6 cm
Height: 8 cm |
| Weight: | 4.70 kg |
