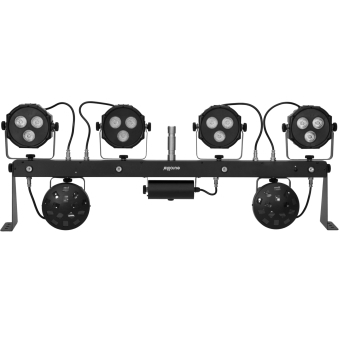

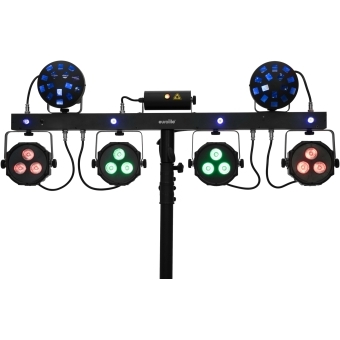

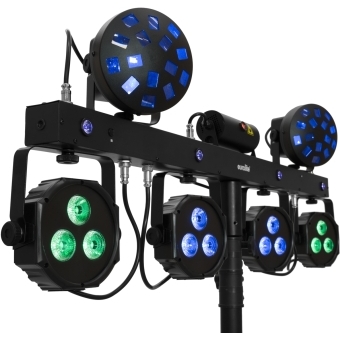

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag
laser
device
mounting bracket
spotlight
light effect
bar
bag
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional) |
| Fixtures available for: | Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| DMX fail mode: | Blackout |
| Housing color: | Black matte |
| Attachment system: | TV spigot Ø 28mm 2x mounting bracket |
| Display type: | Monochrome 3 digit 7-segment LED display |
| USB port: | Type A |
| Dimensions: | Width: 111 cm Depth: 15 cm Height: 41 cm |
| Weight: | 10.50 kg |
| Noise classification: | Class 2 (slight noise) |
| Power cord | |
| Cable length: | 3 m |
| Bag | |
| Carrying strap: | 1 pc/pcs |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |

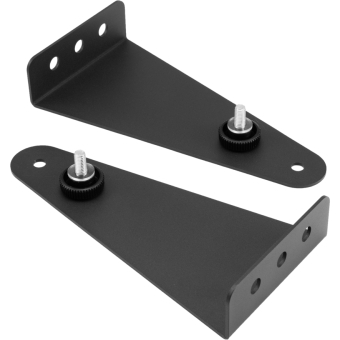

| Mounting bracket | |
| Setup: | Easy installation |
| Diameter mounting holes: | 1 x Ø7.7mm; 3 x Ø9.8mm |
| Material: | Metal, painted |
| Light effect | |
| LED type: | 4 x 3 W SMD 8072 R/G/B/WW |
| Material: | Plastic |
| Spotlight | |
| LED type: | 3 x 4 W SMD 9080 4in1 RGB/WW (homogenous color mix) |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Bar | |
| LED type: | 4 x 1.5 W SMD 8072 ultra violet (UV) |
| Flash rate: | 0 - 30 Hz |
| Beam angle (1/2 peak): | UV effect 127° |
| Beam angle (1/10 peak): | UV effect 56° |
| Material: | Metal, painted |
