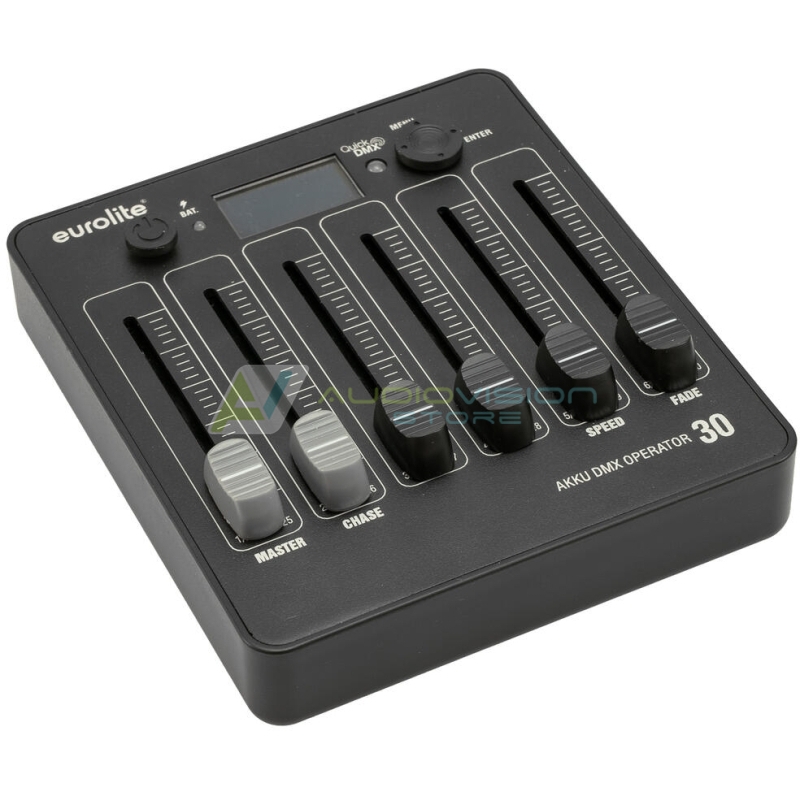

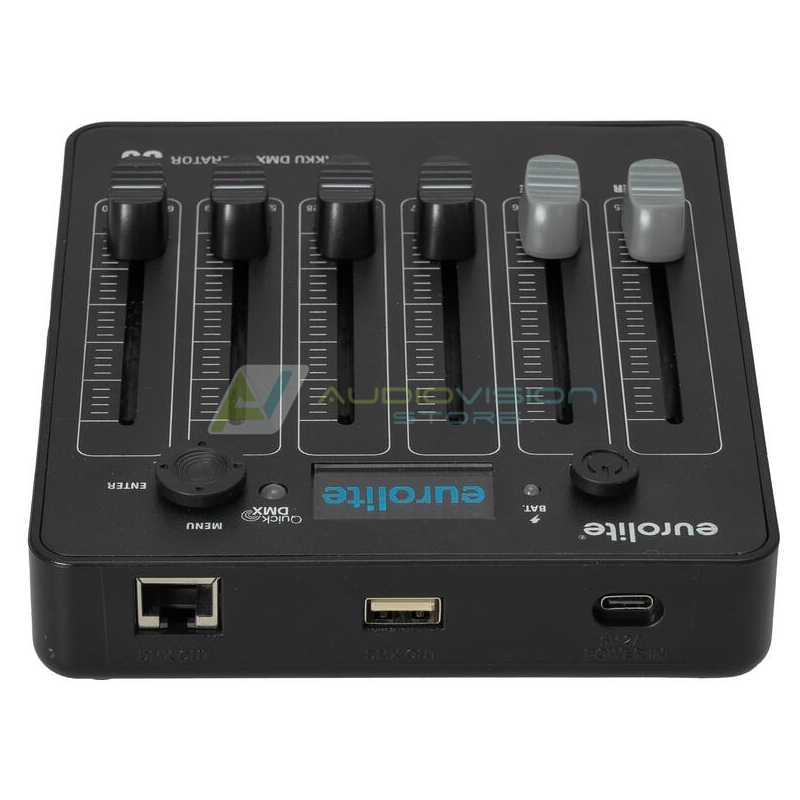

The AKKU DMX Operator 30 is a wireless DMX controller with 6 faders and a large OLED display for operating spotlights and other DMX fixtures. It can transmit up to 30 DMX channels distributed over 5 pages to devices equipped with a QuickDMX receiver and offers 8 memory slots for chases, each with 15 cues. Thanks to its rechargeable battery, it can be used as a portable, handheld device. The housing also allows for wall mounting. DMX cable connections can be established using an adapter cable. The AKKU DMX Operator 30 comes with a USB charging adapter and an XLR adapter cable in a sturdy carrying case.
Portable, battery-powered DMX controller for 30 channels with QuickDMX transmitter & carrying case
| Power supply: | 5V DC 1000 mA |
| Power consumption: | Approx. 5 W |
| Protection class: | Protection class III |
| Power connection: | Battery/battery pack via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Battery pack type: | 1 x lithium ion 3.6 V, 2600 mAh, 9.36 Wh |
| Battery pack: | Battery operation up to 9h Recharging time 3.5h via USB |
| Programs: | Programmable 8 scenes/chases each with 15 cues |
| DMX channels: | Output 30 |
| DMX output: | 1 x USB A (F) mounting version 1 x RJ-45 (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; QuickDMX |
| Range: | QuickDMX: up to 200m in the open air |
| Carrier frequency: | 2.4 GHz |
| Modulation: | GFSK |
| Control channels: | 30 |
| Channel faders: | 6 |
| Housing color: | Black matte |
| Display type: | OLED display |
| Display reading: | Charge status indicator , bargraph |
| Control elements: | Power switch, menu |
| Status LED: | Power, link |
| Material: | Metal, painted; plastic |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 14.5 cm Width: 13 cm Height: 4 cm |
| Weight: | 0.77 kg |
| Adapter cable | |
| Cable length: | 1.4 m |
| USB cable | |
| Cable length: | 1 m |
