Active stage-monitor, coaxial design, D+AB class bi-amp. 2-way 350+70 W, 128db SPL
Features:Low frequency: 12'' woofer/2.6''v.c.
High frequency: 1'' driver/1.3''v.c.
Frequency response: 60-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction in the monitoring of voice and music for live and recorded performances
Birch plywood enclosure
For sound installations in environments requiring dynamics and high sound pressure
COMPONENTSLow frequency:
12
''
woofer/2.6''v.c.
High frequency:
1
''
driver/1.3''v.c.
FEATURESBuilt-in amp LF/HF:
350+70
W
SPL max:
127
dB
@1m (free field)
ACOUSTICAL SPECIFICATIONSSPL cont/peak:
121/127
dB
@1m (free field)
Frequency response:
60-18000
Hz
(±3dB)
Coverage angle HxV:
80x80
°
Cross over frequency:
2000
Hz
ELECTRONICSAmplifier:
digital + AB class
Power:
350+70
W
/4/8Ohm
Input sensitivity:
4 dBu (1,228Vrms) adjustable
Protection:
fast limiter, temp
User controls:
mic, line, master, eq LF-HF
Processor:
analog
Operating voltage/frequency:
220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORSInput signal:
XLR IN/OUT
Power connection:
VDE

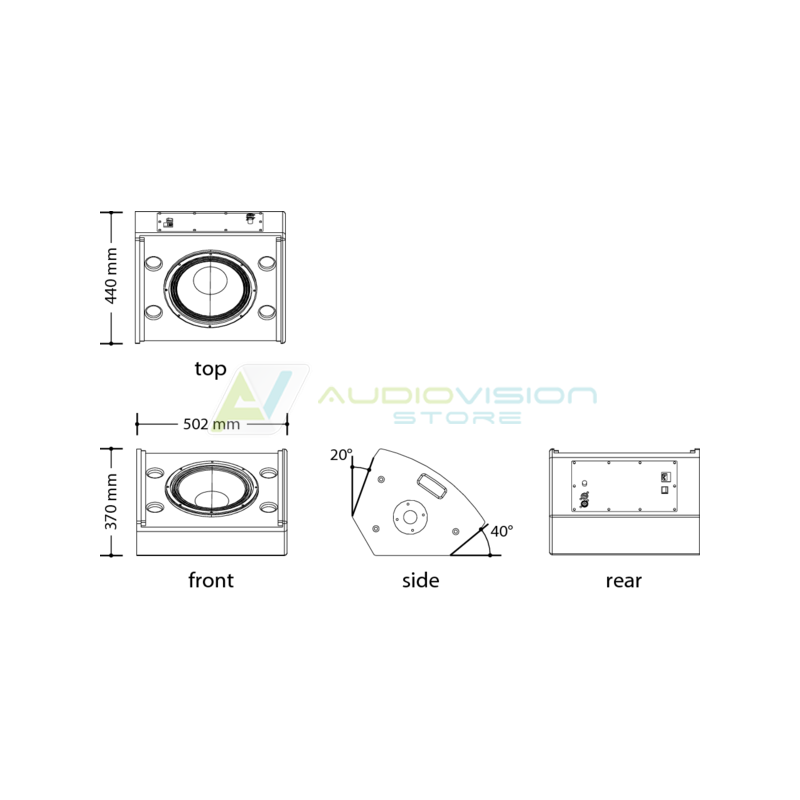

PHYSICALDimensions (WxHxD):
502x370x440
mm
Weight:
20
kg
