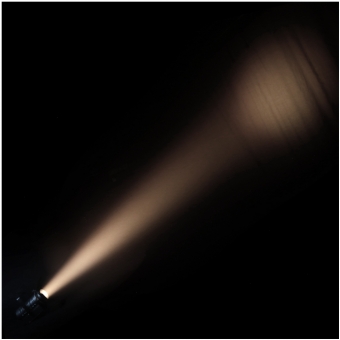

de la in 60 de rate fixe.The Cameo TS 40 WW WH is a versatile theatre spotlight with plano-convex lens and manual zoom for easy spot-to-flood focus adjustment. Delivering a soft-edged beam with continuously variable 14° to 38° angle, the RDM-capable fixture is powered by a single 40 watt warm white LED. It sports a colour temperature of 3,200 K and 18,000 lux illuminance at 1 metre distance.
The spotlight’s DMX functions include a high-speed strobe with adjustable flash rate from 1 - 20 Hz and a selection of dimming curves. A 1,200 Hz refresh rate ensures flicker-free performance. The TS 40 WW WH comes in a tough metal housing with efficient convection cooling. It provides a 4-button display for easy configuration, 3-pin DMX connectors and an IEC power inlet. The package includes a beam-shaping rotating barn door and colour filter frame.
| Product type | LED PAR Lighting |
| Type | Indoor |
| Colour spectrum | warm white |
| Number of LEDs | 1 |
| Colour temperature | 3200 K |
| CRI | >90 |
| LED type | warm white 40 W |
| Refresh rate | 1200 Hz |
| Dispersion | (Beam) 14° - 38° / (Field) 20° - 48 ° |
| DMX input | XLR 3-pin male |
| DMX output | XLR 3-pin female |
| Protocols | USITT DMX 512 protocol |
| DMX mode | 3-channel |
| DMX Functions | Dimmer, Dimmer Curve, strobe |
| Wireless DMX | no |
| Strobe flash rate | 1–20 Hz |
| Standalone modes | Static |
| Controls | Down, Enter, Mode, Up |
| Indicators | LC display |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption | 40 W |
| Power connector | Power cord with safety plug (Type E / CEE 7/7) |
| Housing material | die cast metal |
| Cabinet colour | white |
| Cooling | Convection |
| Operating Temperature | 0 - 40 °C |
| Illuminance | 18000lx @ 1m |
| Luminous flux | 1570 lm |
| Width | 145 mm |
| Height | 205 mm |
| Depth | 240 mm |
| Weight | 3,6 kg |
| Accessories (included) | barndoor |
