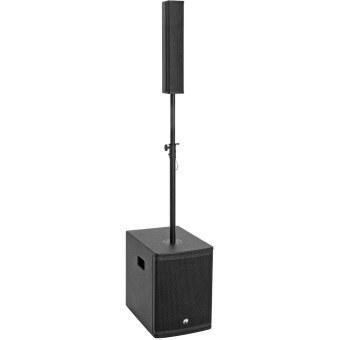

de la in 60 de rate fixe.Mobile column PA system with DSP, mixer, stereo Bluetooth link, 350 W RMS
bass
integrated amplifier module
| Output power: | 350 W RMS system |
| Frequency range: | 42 - 20000 Hz system |
| Max. SPL: | 125 dB system |
| DSP: | Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation |
| Weight: | 19.20 kg |
| Bass | |
| Frequency range: | 42 - 150 Hz |
| Attachment system: | M20 thread |
| Speaker: | 1 x woofer 10" with ferrit magnet Basket material: steel Voice coil lows 2" Conematerial: cardboard/paper |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Recessed carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x plastic feet |
| Material: | MDF (medium density fiberboard), 16 mm |
| Color: | Black, textured coating |
| Dimensions: | Width: 32 cm Depth: 46.5 cm Height: 44.5 cm |
| Weight: | 16.5 kg |
| Integrated amplifier module | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 250 W |
| Protection class: | Protection class I |
| Output power: | 1 x 200 W RMS LF 1 x 150 W RMS (4 ohms) HF |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Fuse: | 5 x 20 mm, T 2.5 A fuse serviceable |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION |
| Control: | Bluetooth |
| Bluetooth: | Version: 5.3 with stereo link (TWS) |
| Bluetooth device name: | ROD-1043 |
| Range: | Bluetooth: up to 10m in buildings |
| Carrier frequency: | 2.4 GHz |
| Circuitry: | Class D |
| Control elements: | Level control, power switch, Input sensitivity switch |
| Controls: | Short-circuit; DC voltage; limiter; overload |
| Status LED: | Signal, limit, DSP presets, pairing, link |
| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR (M) mounting version Output: top via 1 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via RCA or Bluetooth, channel control via rotary dial 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial |
| Crossover frequency: | 150 Hz |
| Top | |
| Power: | Program: 160W Rated: 80W AES |
| Frequency range: | 150 - 20000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Dispersion angle: | 100° x 20° |
| Impedance: | 1 x 4 ohms top |
| Attachment system: | Flange: Ø 25mm |
| Connections: | Input: top via 1 x speaker built-in socket (F) |
| Speaker: | 4 x full range loudspeaker 3" with neodymium magnet Basket material: steel Voice coil full range loudspeaker 0.75" Conematerial: cardboard/paper |
| Type of speaker: | Column speaker |
| Type of construction: | Closed Box |
| Material: | Plastic hard |
| Color: | Black |
| Dimensions: | Width: 8.5 cm Depth: 10.5 cm Height: 45 cm |
| Weight: | 1.43 kg |
| Distance tube | |
| Height: | Maximum: 95 cm Minimum: 59 cm Adjustable in 4 steps with locking pin |
| Attachment system: | M20 thread Pivot: Ø 25mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel, painted |
| Weight: | 0.74 kg |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 1.80 m |
| Speaker cable | |
| Cable construction: | 2 x 0.75 mm² speaker cable |
| Cable length: | 2 m |
