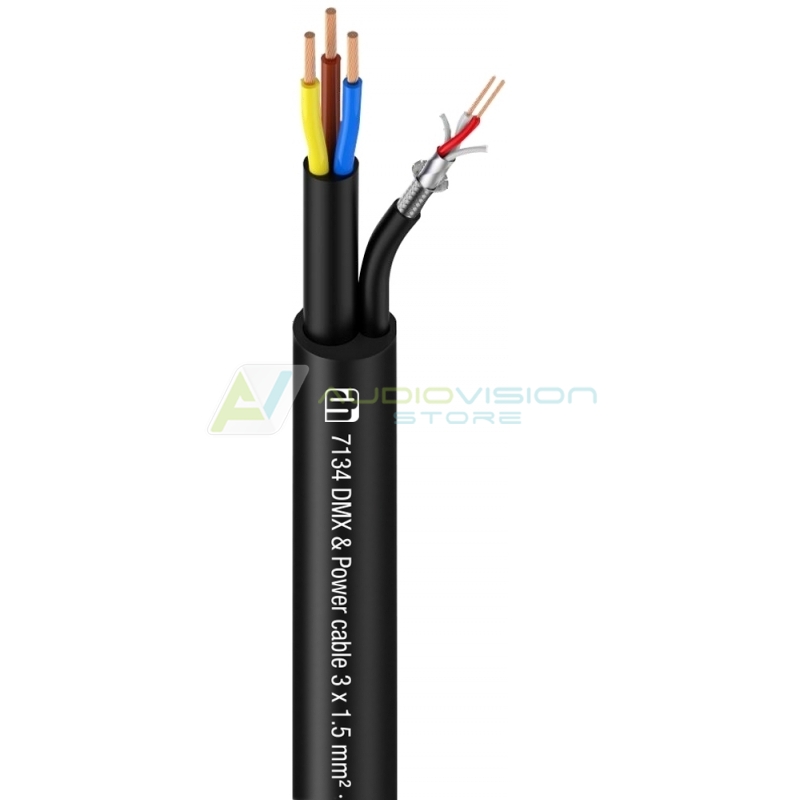

This hybrid cable combines individually jacketed DMX and power lines in a durable and flexible PVC outer jacket. The power line features three 1.5 mm² conductors, the DMX line has a twisted pair of 0.22 mm² OFC conductors with a dual shield of AL/PT foil and tinned copper braid providing 100% coverage to prevent electromagnetic interference.
- DMX line with twisted pair of 0.22 mm² conductors
- Dual shield of foil and tinned copper braiding
- Power line with 3 x 1.5 mm² conductors
- DMX and power lines individually jacketed
- Flexible PVC outer jacket
| Product type | Bulk Cable |
| Type | Power / Signal Cable |
| Color | Black |
| Overall diameter | 15.0 mm +/- 0.2 mm |
| Jacket material | PVC |
Inner conductor 1
| Inner conductor type | Mains supply line |
| Cross section | 1.5 mm² |
| Conductor material | bare copper |
| Composition of conductor | 48 x 0.20 mm |
| Number of conductors | 3 |
| Line resistance | 85 Ohm(s) |
| Capacitance | 55 pF/m |
Inner conductor 2
| Inner conductor 2 type | audio/DMX |
| Inner conductor 2 cross-section | 0.22 mm² |
| Inner conductor 2 material | bare copper |
| Inner conductor 2 construction | 7 x 0.20 mm |
| Number of inner conductors 2 | 2 |
| Inner conductor 2 shielding material | Copper tin-plated |
| Characteristic impedance inner conductor 2 | 120 Ohm(s) |
| Line resistance inner conductor 2 | 85 Ohm(s) |
| Inner conductor 2 capacitance | 55 pF/m |
