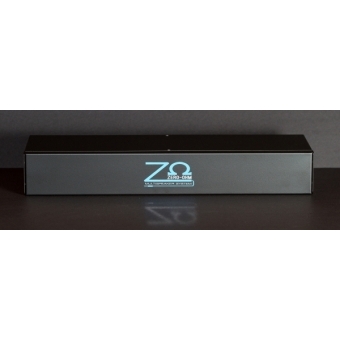

Zero-Ohm Systems 4K-2 Disruptor Series

Zero-Ohm Systems 4K-2 Disruptor Series
Pret la cerere
In stoc furnizor
Zero-Ohm
cod produs: Zero-Ohm 4K-2
Descrierea Produsului

ZERO-OHM System is a passive device that interconnects between any amplifier and multiple loudspeakers without the concerns of amplifier speaker loads, impedance and extremely long cable runs. This Patented Design eliminates the need for 70V-100V transformer products. Multiple loudspeakers can be wired in a parallel connection to impedances below one (1) Ohm.

• Zero (0) Ohm functionality

• No Transformers required

• Multiple loudspeakers can be connected in parallel

• Any Speaker impedance can be used: 2/4/8/16 Ohm

• Uniform power distribution over long distance cable runs

• Full range frequency response

• Identical Output Phase relationship with all Power Amplifiers.


ACOUSTIC PERFORMANCE Frequency Response 20Hz - 20kHz Frequency Range 20Hz - 20kHz Total Harmonic Distortion Reference chart below

Input/Output Connector Neutrik NL4 Input Pin-Out Pin 2+ Pin 2- Output Pin-Out Pin 1+ Pin 1- Min. Output Impedance 0.1 Ohms Max. Power Handling 4000W (Per channel)

PHYSICAL PROPERTIES Height 65.1mm Width 438.1 mm / 479.4mm with Rack Ears Depth 149.2 mm Weight 3.2 kg Shipping Weight 4kg (Including Packaging)

ORDER INFORMATION 4K-2 Two Channel Rackmount System P/N: 4K-2
