Suport universal DIA/Video brat 50mm

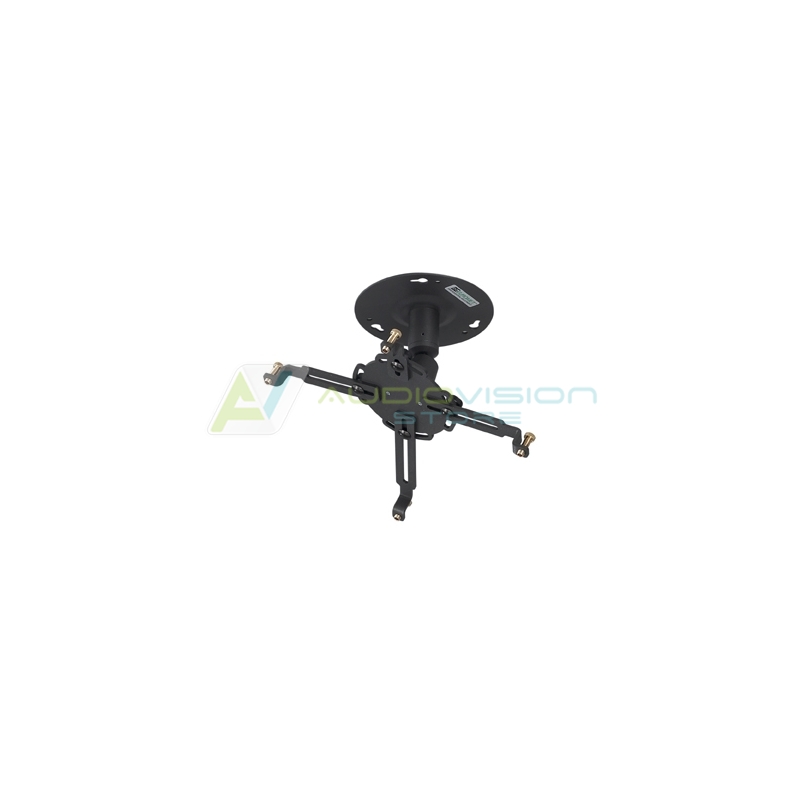

Universal ceiling bracket, adjustable for Dia/Video- projectors, steel made, with arm l=50 mm. It is tiltable in vertical plane(+/-25°) and in the horizontal plane (360°) working on the central part of the assembly swivel. It can be fixed by its spanner wich is supplied with the bracket. The support will be fixed to the ceiling by a plate Ø160mm with three 6mm holes, and buttonholes grant a very quick inspection for maintenance. To apply the Dia- Video to the support, you have to use 4 arms of different dimensions (78/138/168mm). Use the feet to have the arms at the same height, and fix to the support. Screws M3 M4 and M5, adaptors M2,5 and manual instruction included.
