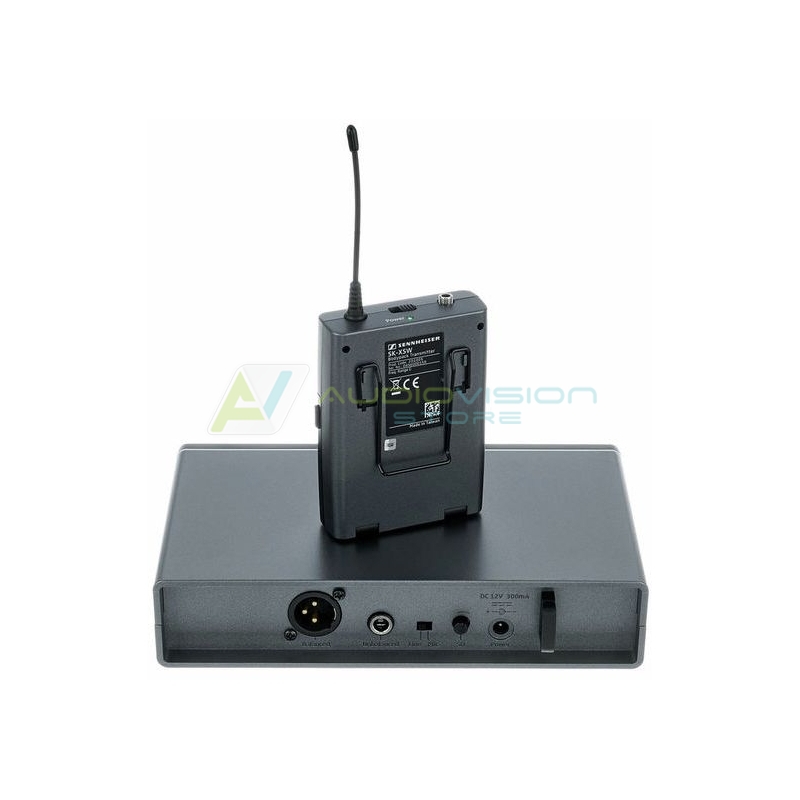

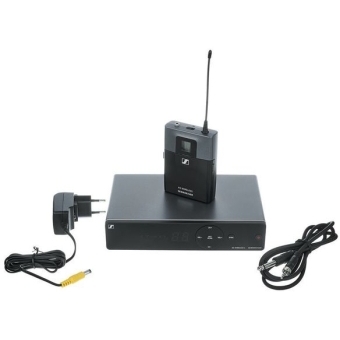

Sistem wireless de instrument Sennheiser XSW 1-CI1-B

Technical Data

• Dimensions

  Receiver: approx. 200 x 42 x 127 mm
  Bodypack transmitter: approx. 71 x 96 x 28 mm


• THD, total harmonic distortion

  ≤ 0.9%


• Weight

  approx. 340g (receiver), approx. 95g (transmitter)


• • Signal-to-noise ratio

    ≥ 103 dBA


  • RF output power

    10 mW


  • Switching bandwidth

    up to 24 MHz


  • Operating time

    approx. 10 hrs


  • Modulation

    Wideband FM


  • Power supply

    Receiver: 12 V DC nom. / 300 mA
    Transmitter: 2 AA size batteries, 1.5 V


  • Output voltage

    1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu


  • Housing

    Rugged ABS housing


  • Frequency

    8 frequency banks, each with up to 10 factory-preset channels


  • Frequency range

    A: 548-572 MHz, GB: 606-630 MHz
    B: 614-638 MHz
    C: 766-790 MHz
    D: 794-806 MHz
    E: 821-832 MHz, 863-865 MHz
    K: 925-937.5 MHz


  • Sensitivity

    < 3 μV at 52 dB(A)rms S/N


  • SPL for peak deviation

    130 dB


  • Squelch

    adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)


  • Synchronization

    2.4 GHz, Low Power OQPSK (only active during synchronization)


  • Input sensitivity

    1.5 mV / Pa


  • AF frequency response

    Receiver: 50 to 16,000 Hz (–3 dB)


  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps


  • Audio adjustment range

    45 dB, adjustable in 5-dB steps


  • Line / Mic level

    20 dB, switchable


  • Temperature Range

    operation: 0°C to +40°C, storage: –20°C to +70°C


  • Receiver Principle

    double superheterodyne


  • Diversity principle

    Antenna switching diversity via internal antennas
